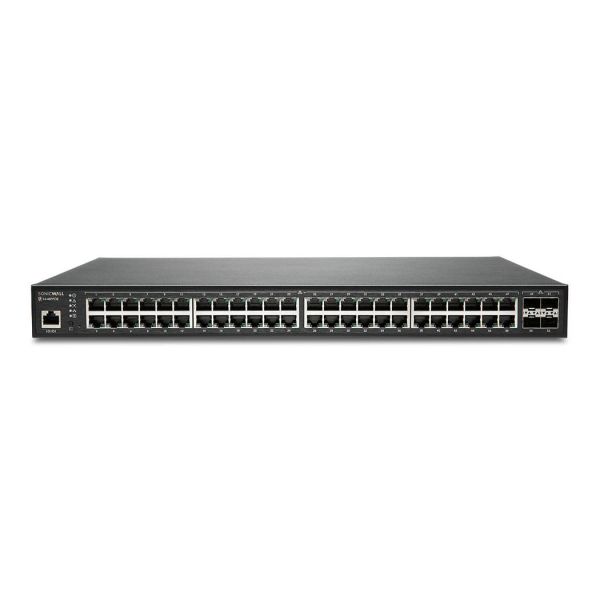

SonicWall SWS14-48FPOE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Nog 11 beschikbaar

Fabrikant SonicWALL
MPN 02-SSC-8382
EAN 0758479283829

SonicWall SWS14-48FPOE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Explore the Switch Series
Your network is under more pressure than ever. As the number of connected devices expands, bandwidth demands continue to soar, making it difficult to consistently provide the secure, high-speed connection your business depends on.

SonicWall’s feature-rich switches answer the challenge delivering high-speed switching, so you can add more devices, keep up with SaaS proliferation and gain more control, all while protecting your network and your budget.

Its unified security posture makes it ideal for small and medium-sized businesses and Software Defined Branch (SD-Branch) deployments. Keep pace with the changing network and security landscape.

SD-Branch Ready
Integrates seamlessly with the SonicWall ecosystem to provide unified security posture.

10 Gigabit Connectivity
Attain significant boost in your overall switching performance as network demands grow.

Flexible Management
Whether through the firewall or Wireless Network Manager, with our single-pane-of-glass view, managing your security is easy.

Zero-Touch Deployment
Quickly set up, configure and deploy devices without the time and expense of site visits or on-site personnel.

Various Deployment Options
Multiple models provide you the flexibility to choose the best option aligned with your business goals.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.1af, IEEE 802.1p, IEEE 802.1x
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port mirroring
Ja
IP routing
Ja
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4096

Data-uitwisseling

Switchingcapaciteit*
176 Gbit/s
MAC-adrestabel*
32000 entries
Jumbo Frames ondersteuning
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SSH

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Vormfactor
1U

Design

Kleur van het product
Zwart
LED-indicatoren
LAN, Power over Ethernet (PoE)
Aantal ventilatoren
3 ventilator(en)
Certificering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL

Prestatie

Intern geheugen
512 MB
Flash memory
128 MB
Mean time between failures (MTBF)
100645 uur

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
12 A
Vermogensverbruik (max)
885 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
740 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Warmtedissipatie
1807,3 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
44 mm
Hoogte
310 mm
Gewicht
4,8 kg
