StarTech.com USB-C Docking Station, Multi Monitor USB-C Dock, HDMI/DP/DP Alt-mode, 3x 4K30 / 2x 4K60, 7-Port USB Hub, 60W Power Delivery, GbE, 3.5mm Audio, Works With Chromebook Certified, Bedraad, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 60 W, 2.0b, 3,5 mm, 10,100,1000 Mbit/s

Ruim op voorraad

Fabrikant StarTech
MPN DK31C3MNCRUE
EAN 0065030898133

StarTech.com USB-C Docking Station, Multi Monitor USB-C Dock, HDMI/DP/DP Alt-mode, 3x 4K30 / 2x 4K60, 7-Port USB Hub, 60W Power Delivery, GbE, 3.5mm Audio, Works With Chromebook Certified

USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbEThe StarTech.com Advantage
  • WORKS WITH CHROMEBOOK CERTIFIED: WWCB gecertificeerd voor gegarandeerde compatibiliteit met USB-C & Thunderbolt™ 4 Chromebooks; Firmware Auto-updates via ChromeOS voor maximale prestaties, compatibiliteit en beveiliging

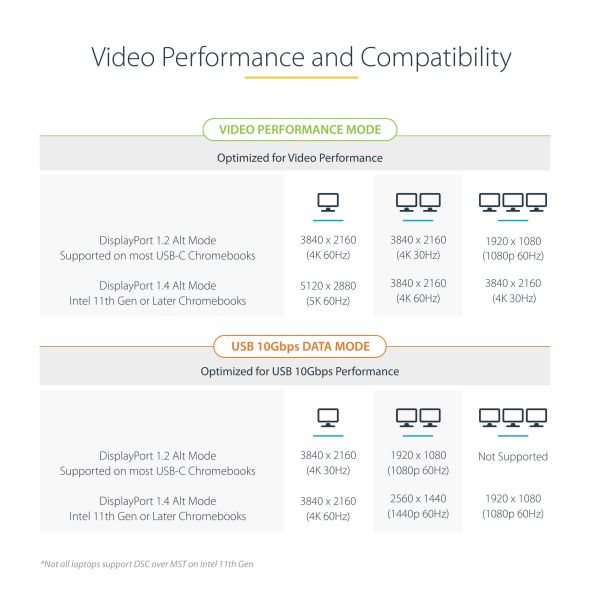

  • FLEXIBELE MULTI-MONITOR OUTPUTS: MST gebaseerde video ondersteunt extended dual-4K 60Hz monitors met HDMI 2.0b, DisplayPort 1.4 en USB-C video outputs, Triple 4K 30Hz, of Single 5K 60Hz (DP 1.4 HBR3); Ideaal voor USB-C monitors (draagbaar of desktop)

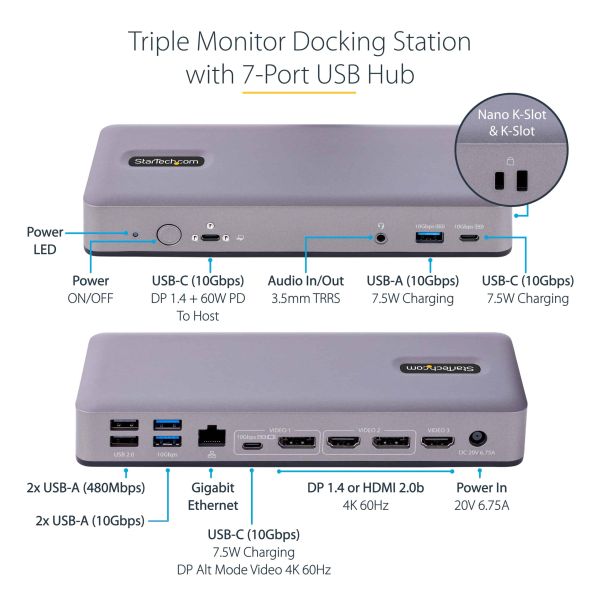

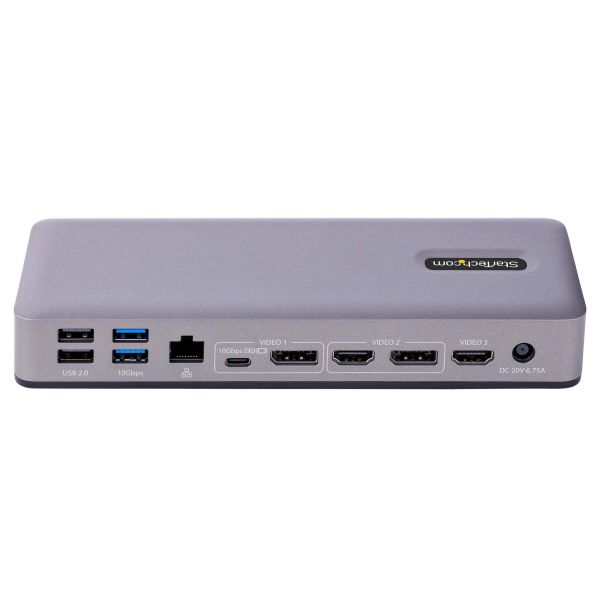

  • COMPLETE OPLOSSING: 7-Port USB Hub met 2x USB-A 10Gbps, 1x USB-A 10Gbps (BC 1.2 charging), 1x USB-C 10Gbps, 2x USB-A 480Mbps en 1x USB-C (gedeelde 10Gbps data & DP Alt Mode video), 60W Power Delivery, Gigabit Ethernet, 3,5mm headset/audio poort

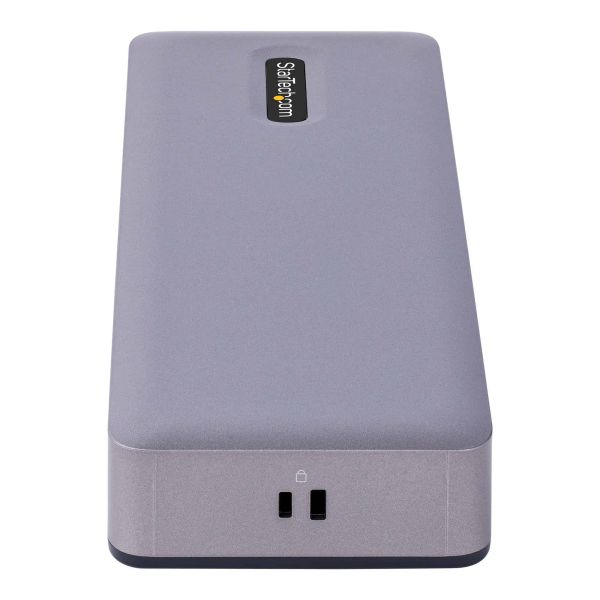

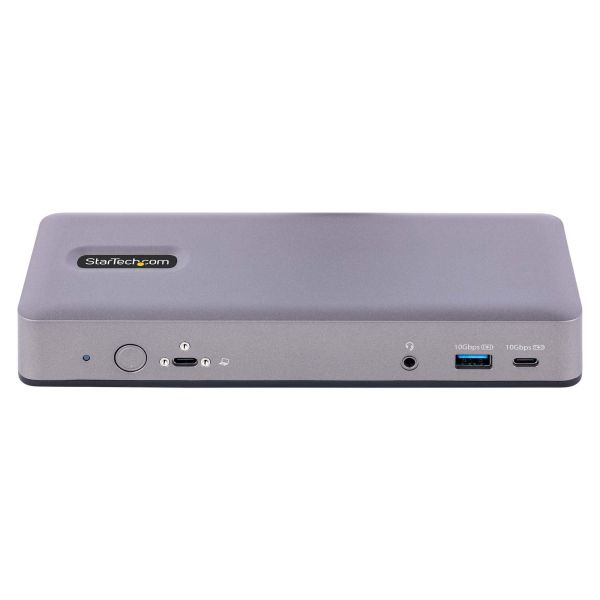

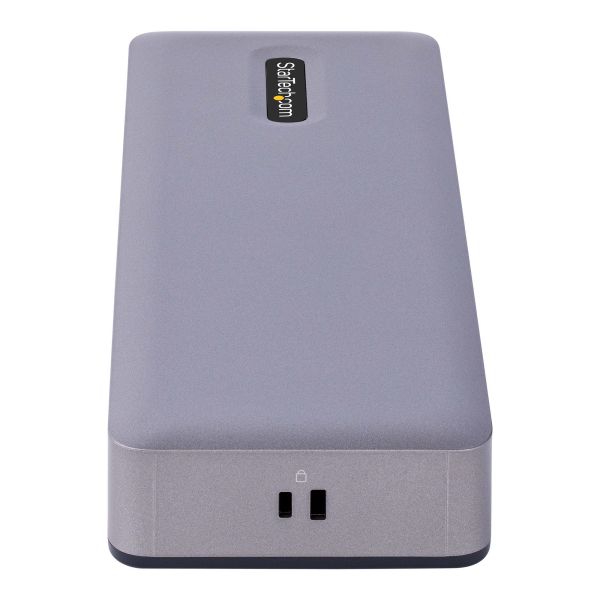

  • VEILIGE EN EENVOUDIGE SETUP: Ideaal voor uitrol in bedrijven; Inclusief frontale host poort met schroefvergrendeling en vergrendelbare 1m USB-C kabel, automatische driver installatie, Power/Mode knop, anti-diefstal K-Slot & Nano-Slot en montagegaten

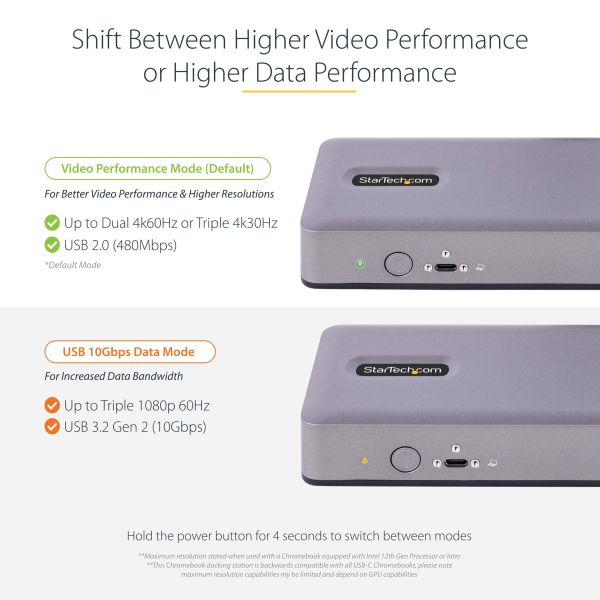

  • TWEE MODES: Druk de power/mode knop in gedurende 4 sec om tussen Two en Four Lane mode te schakelen - Four Lane mode biedt 4K video met USB 2.0 480Mbps throughput, terwijl Two Lane mode USB 3.2 Gen2 10Gbps throughput met 1080p video prestaties ondersteunt

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
3
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
USB Power Delivery
Ja
USB Power Delivery herziening
3.0
USB Power Delivery tot max.
60 W
Aantal HDMI-poorten*
2
HDMI versie
2.0b
Aantal DisplayPorts
2
DisplayPort versie
1.4
Combo koptelefoon/microfoon port
Ja
Hoofdtelefoonuitgangen*
1
Type aansluitplug
3,5 mm
USB Type-C DisplayPort alternatieve modus
Ja

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Prestatie

Overdrachtssnelheid
10 Gbit/s
HD type
5K Ultra HD
Resolutie (maximum digitaal)
5120 x 2880 Pixels
Maximale refresh snelheid
60 Hz
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington

Prestatie

LED-indicatoren
Netwerk, Stroom

Energie

AC-ingangsspanning
100 - 240 V
Stroom
2.37 A
Spanning
20 V
Output current
6,75 A
Stroomverbruik (typisch)
135 W
Compatibele soorten stopcontacten
EU, UK

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, RoHS

Gewicht en omvang

Breedte
80 mm
Diepte
210 mm
Hoogte
32 mm

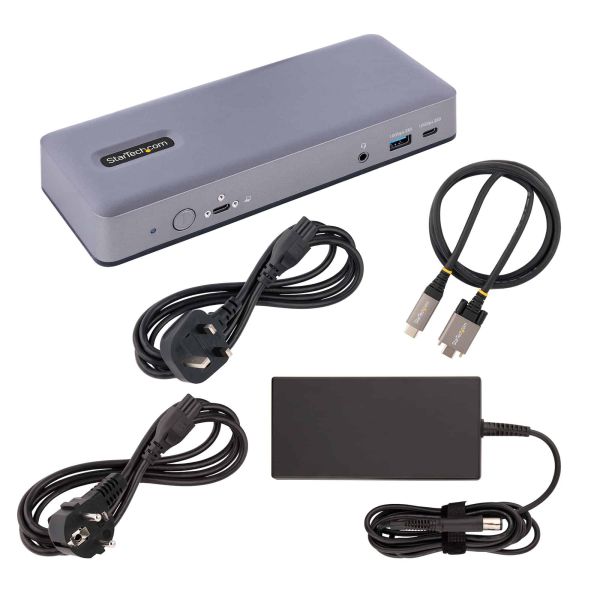

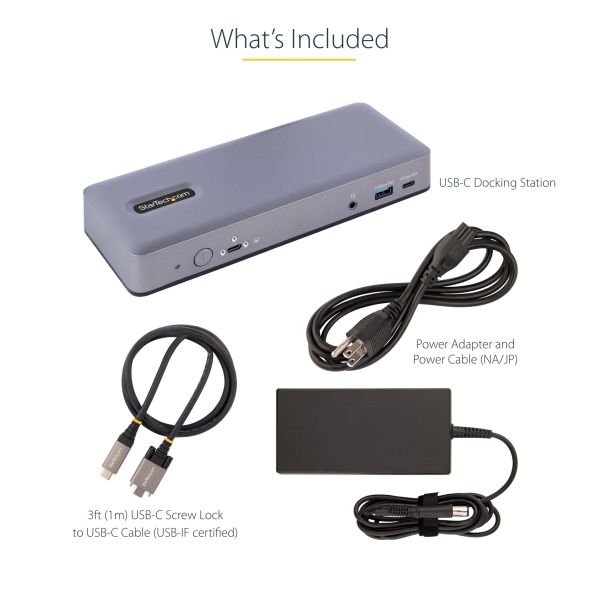

Inhoud van de verpakking

Meegeleverde kabels
USB Type-C naar USB Type-C
Inclusief AC-adapter
Ja
Snelstartgids
Ja

Overige specificaties

Chipset
Synaptics - VMM5320, Realtek -RTS5420, Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822 Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B
