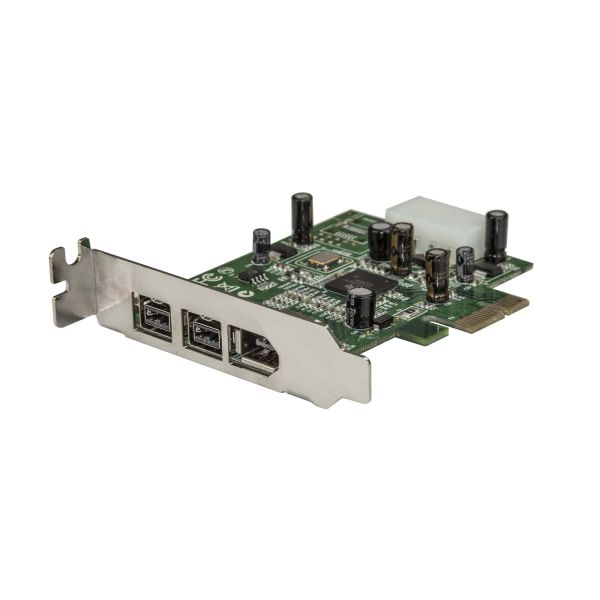

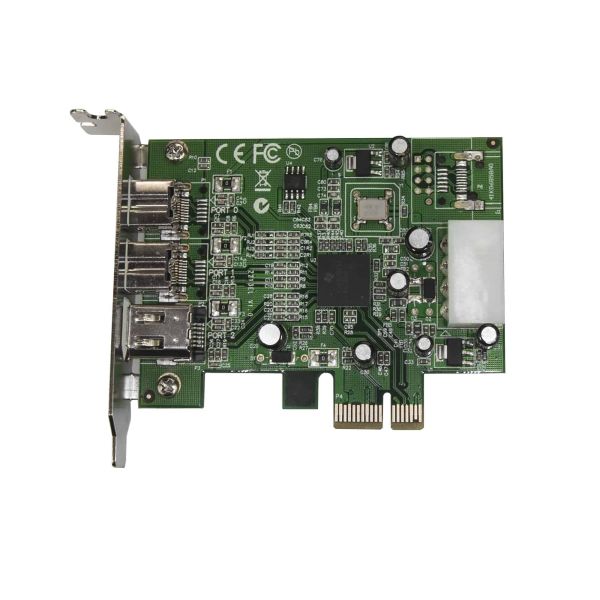

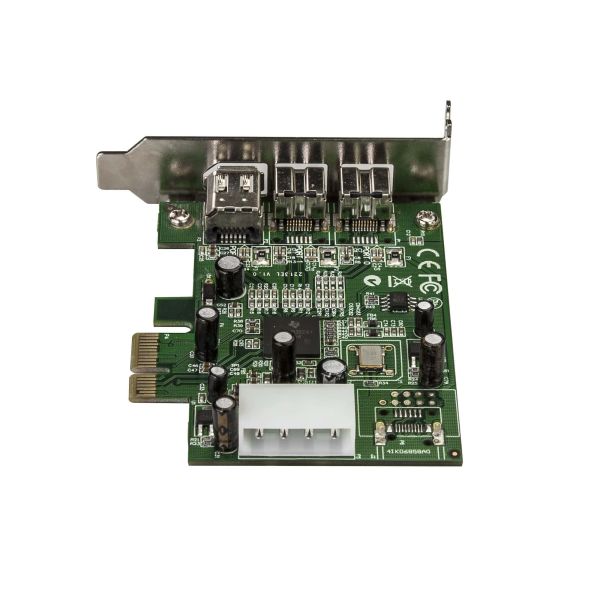

StarTech.com 3-poort 2b 1a Low Profile 1394 PCI Express FireWire Adapterkaart

StarTech.com 3-poort 2b 1a Low Profile 1394 PCI Express FireWire Adapterkaart, PCIe, IEEE 1394/Firewire, PCIe 1.1, Groen, 149905 uur, Texas Instruments - XIO2213B

Ruim op voorraad

Fabrikant StarTech
MPN PEX1394B3LP
EAN 0065030837897
€ 64,00 excl. BTW

StarTech.com 3-poort 2b 1a Low Profile 1394 PCI Express FireWire Adapterkaart

Voeg 2 native FireWire 800-poorten toe aan uw low profile computer met kleine vormfactor via een PCI Express uitbreidingsslotThe StarTech.com Advantage
  • Twee 9-pins FireWire 800-poorten met overdrachtsnelheden tot 800 Mbit/s per poort
  • Een 6-pins FireWire 400-poort met overdrachtsnelheden tot 400 Mbit/s
  • Inclusief montagebracket voor standaard full-size vormfactor
  • Voorzien van een native PCI Express-chipset, geen bridge chip
  • Stroomaansluiting voor FireWire-apparaten met veel vermogen
  • Compatibel met IEEE 1394b en achterwaarts compatibel met IEEE 1394a-2000- en 1394-1995-normen
  • Plug-and-play en hot-swappable

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
IEEE 1394/Firewire
Uitbreidingskaartstandaard
PCIe 1.1
Aantal IEEE 1394-/Firewire-poorten
3
Aantal FireWire 400-poorten
1
Aantal FireWire 800-poorten
2

Design

Intern*
Ja
Kleur van het product
Groen
Mean time between failures (MTBF)
149905 uur
Hot-swap
Ja

Kenmerken

Chipset
Texas Instruments - XIO2213B
Data transfer snelheid (max)
0,8 Gbit/s
Plug and play
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-20 - 90 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Minimale systeemeisen

Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2019

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, RoHS

Gewicht en omvang

Breedte
58 mm
Diepte
90 mm
Hoogte
20 mm
Gewicht
43 g

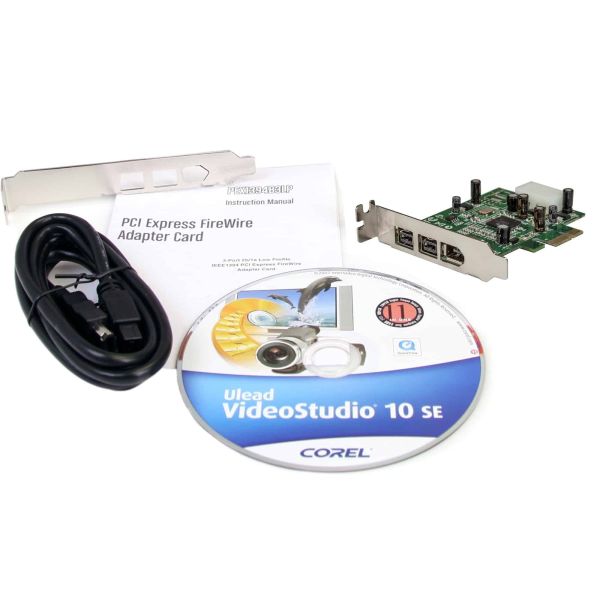

Verpakking

Meegeleverde kabels
FireWire
Montagebeugels meegeleverd
Ja
Gebruikershandleiding
Ja
Breedte verpakking
175 mm
Diepte verpakking
144 mm
Hoogte verpakking
32 mm
Gewicht verpakking
200 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
Hoeveelheid per (buitenste) hoofdverpakking
28 stuk(s)
(Buitenste) hoofdverpakking breedte
331 mm
(Buitenste) hoofdverpakking lengte
504 mm
(Buitenste) hoofdverpakking hoogte
237 mm
