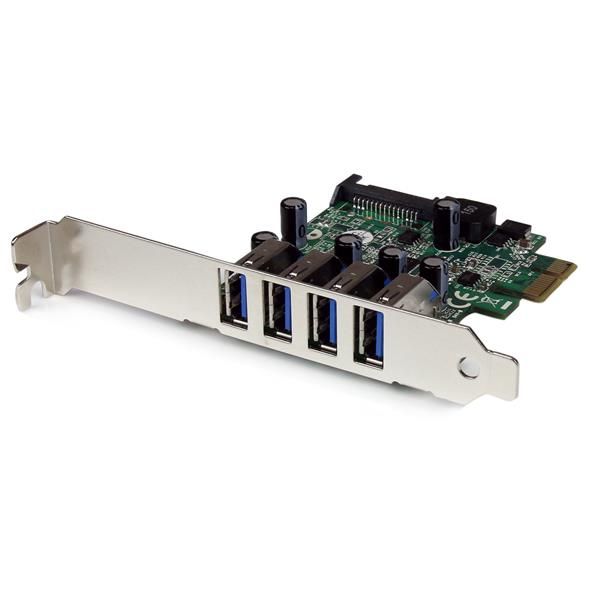

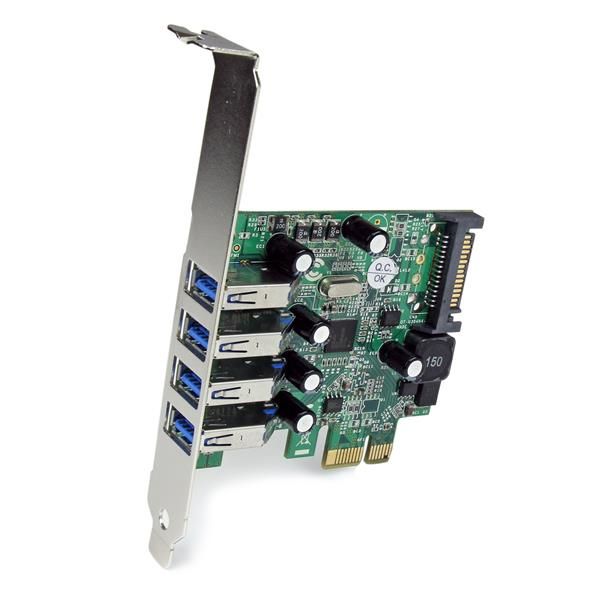

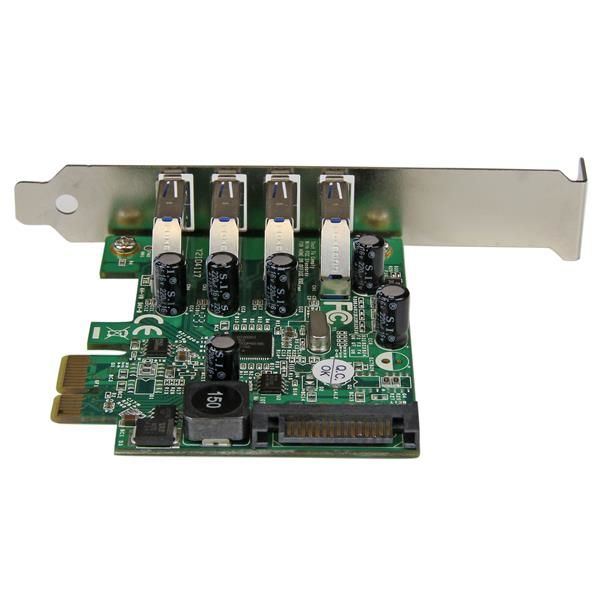

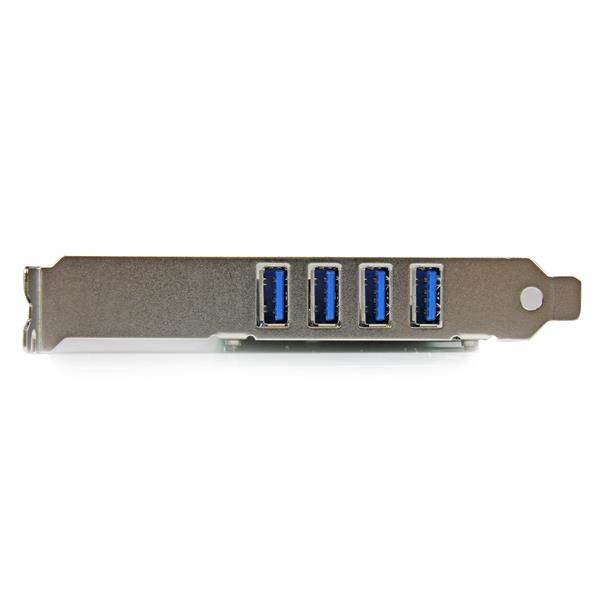

StarTech.com 4-poorts PCI Express PCIe SuperSpeed USB 3.0 controllerkaartadapter met UASP SATA-voeding

StarTech.com 4-poorts PCI Express PCIe SuperSpeed USB 3.0 controllerkaartadapter met UASP SATA-voeding, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), PCIe 2.0, CE, FCC, NEC uPD720201, 5 Gbit/s

Ruim op voorraad

Fabrikant StarTech
MPN PEXUSB3S4V
EAN 0065030848961
€ 45,00 excl. BTW

StarTech.com 4-poorts PCI Express PCIe SuperSpeed USB 3.0 controllerkaartadapter met UASP SATA-voeding

Voeg 4 SuperSpeed USB 3.0 (USB 3.2 Gen 1) poorten toe aan uw PC via een beschikbaar PCIe slot

The StarTech.com Advantage

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
USB 3.2 Gen 1 (3.1 Gen 1)
Uitbreidingskaartstandaard
PCIe 2.0
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal Internal SATA ports
1

Design

Intern*
Ja
Certificering
CE, FCC

Kenmerken

Chipset
NEC uPD720201
Data transfer snelheid (max)
5 Gbit/s
UASP-ondersteuning
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent

Minimale systeemeisen

Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technische details

Certificaten van naleving
RoHS

Gewicht en omvang

Breedte
68 mm
Diepte
19 mm
Hoogte
75 mm
Gewicht
45 g

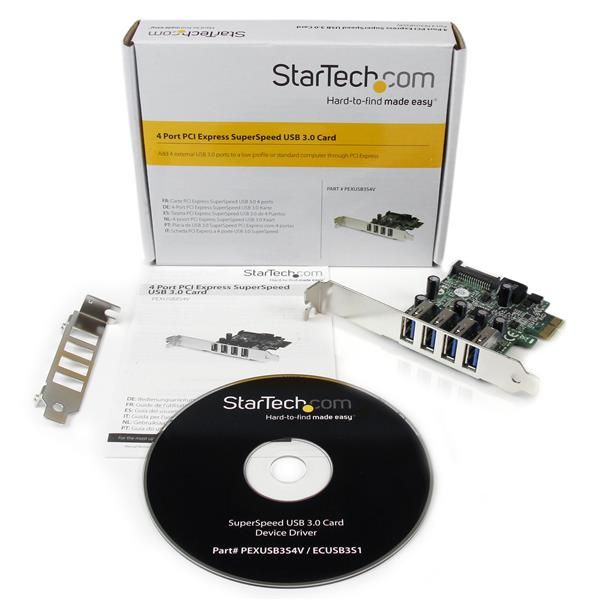

Verpakking

Montagebeugels meegeleverd
Ja
Meegeleverde drivers
Ja
Gebruikershandleiding
Ja
Breedte verpakking
162 mm
Diepte verpakking
132 mm
Hoogte verpakking
33 mm
Gewicht verpakking
138 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Mac-compatibiliteit
Nee
Compatibele besturingssystemen
Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
