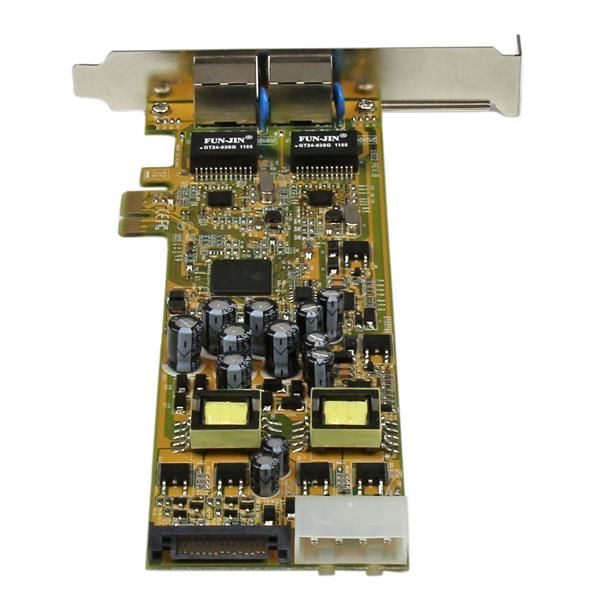

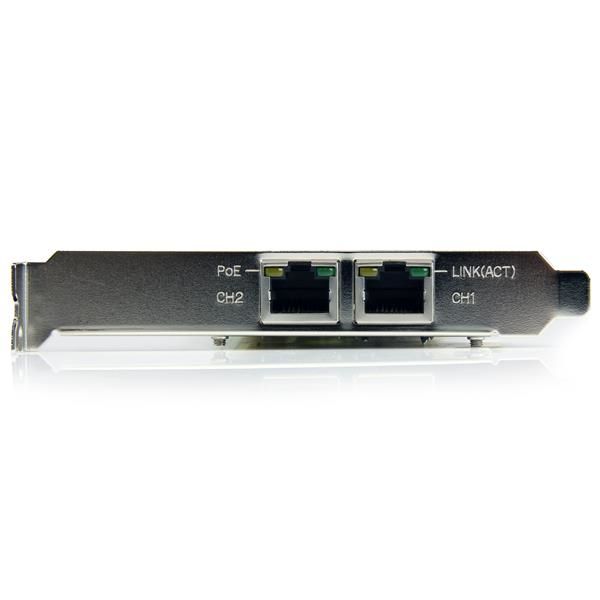

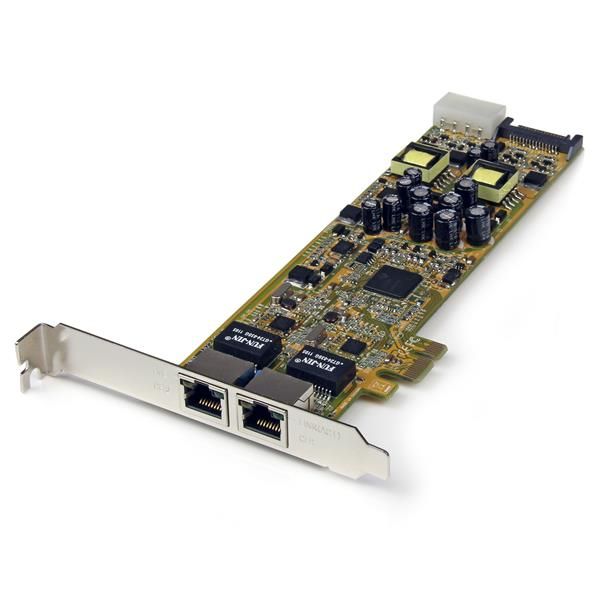

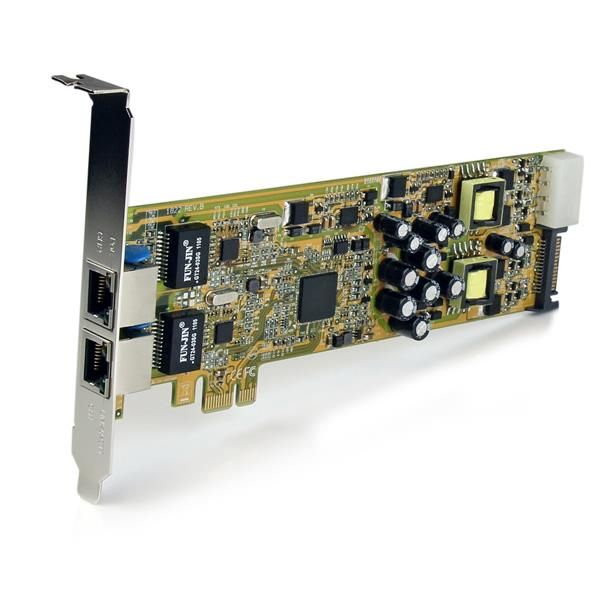

StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe-netwerkkaart adapter PoE/PSE

StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe-netwerkkaart adapter PoE/PSE, Intern, Bedraad, PCI Express, Ethernet, 2000 Mbit/s

Ruim op voorraad

Fabrikant StarTech
MPN ST2000PEXPSE
EAN 0065030849128
€ 151,00 excl. BTW

StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe-netwerkkaart adapter PoE/PSE

Voeg twee Power-over-Ethernet Gigabit-poorten toe aan een PCI Express-computer

The StarTech.com Advantage

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
2
Hoeveelheid Power over Ethernet (PoE) ports
2

Netwerk

Maximale overdrachtssnelheid van gegevens*
2000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Auto MDIX IEEE
Ja
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
VLAN-tagging
Ja
LAN controller
Realtek RTL8111E

Design

Component voor*
PC
Intern*
Ja
Chipset
Realtek - RTL8111E
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE)
Mean time between failures (MTBF)
140981 uur
Certificering
CE, FCC, REACH

Energie

Spanning
48 V

Minimale systeemeisen

Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Mac-besturingssysteem
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Minimale systeemeisen

Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-20 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
19 mm
Diepte
195 mm
Hoogte
68 mm
Gewicht
104 g

Verpakking

Meegeleverde drivers
Ja
Low-profile bracket
Ja
Breedte verpakking
231 mm
Diepte verpakking
165 mm
Hoogte verpakking
45 mm
Gewicht verpakking
246 g

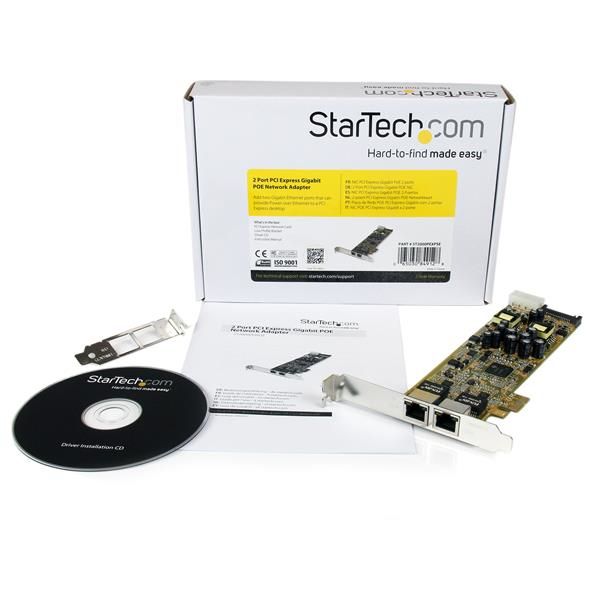

Inhoud van de verpakking

Gebruikershandleiding
Ja

Technische details

Certificaten van naleving
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Buffergrootte
48 KB
Datastroombeheer
Ja
