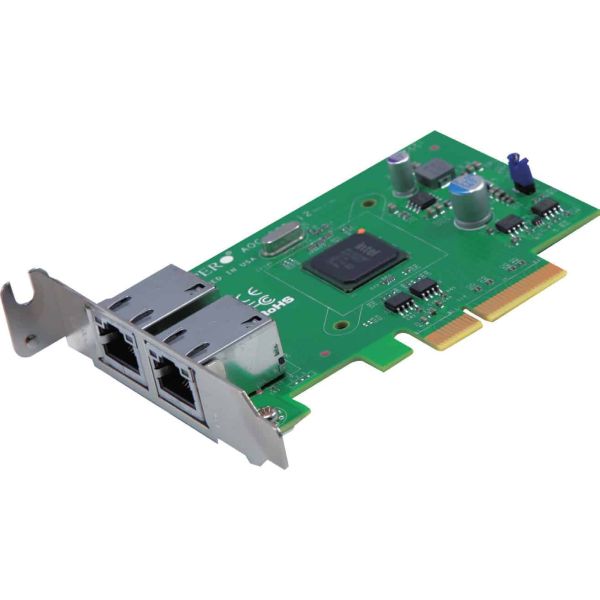

Supermicro AOC-SGP-I2 netwerkkaart Intern Ethernet
The Most Compact and Cost Effective 2-port Ethernet Controller in the Market
With the AOC-SGP-i2, Supermicro has extended the boundaries of Ethernet technology to create the most compact, cost
effective, and feature-packed 2-port Ethernet controller in the market, allowing it to fit easily into the tightest high-density
server add-on card locations. With ultra-small footprint and rich of power management technology feature set, the AOCSGP-i2 represents the next step in the Gigabit Ethernet networking evolution for enterprise and data center environments
With the AOC-SGP-i2, Supermicro has extended the boundaries of Ethernet technology to create the most compact, cost
effective, and feature-packed 2-port Ethernet controller in the market, allowing it to fit easily into the tightest high-density
server add-on card locations. With ultra-small footprint and rich of power management technology feature set, the AOCSGP-i2 represents the next step in the Gigabit Ethernet networking evolution for enterprise and data center environments
- Ethernet LAN
- Ondersteunt Linux
- Intern
- Netwerkstandaard - IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI versie
2.1
Netwerk
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Ethernet LAN
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
LAN controller
Intel® I350
Design
Kleur van het product
Groen
Intern*
Ja
Minimale systeemeisen
Ondersteunt Windows
Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Minimale systeemeisen
Ondersteunt Linux
Ja
Andere ondersteundende systemen
FreeBSD, VMware vSphere ESXi
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Duurzaamheid
Duurzaamheidscertificaten
RoHS
Gewicht en omvang
Breedte
99,1 mm
Hoogte
69 mm
Verpakking
Aantal
1
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
