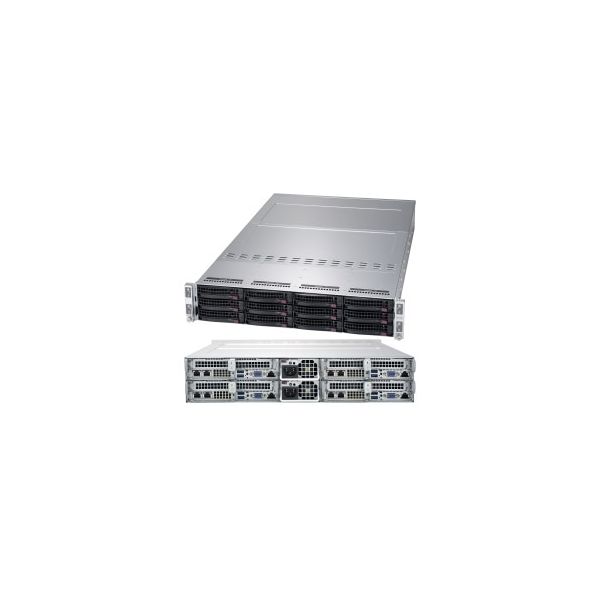

Supermicro A+ Server 2014TP-HTR Socket SP3 Rack (2U) Zwart

Supermicro A+ Server 2014TP-HTR, Socket SP3, AMD, AMD EPYC, DDR4-SDRAM, 8 TB, 3200 MHz

Niet op voorraad

Fabrikant Super Micro
MPN AS -2014TP-HTR
EAN 0672042375578
€ 3.701,00 excl. BTW

Supermicro A+ Server 2014TP-HTR Socket SP3 Rack (2U) Zwart

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Single AMD EPYC™ 7002 Series Processor
Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots
2 PCI-E 4.0 x16 (LP) slot
Integrated IPMI 2.0 + KVM with  dedicated LAN
3 Hot-swap 3.5" SATA3 drive bays
Video via Aspeed AST2500 BMC
2000W Redundant Power SuppliesTitanium Level (96%)
  • Compute Intensive Applications
  • HPC, Data Center, Enterprise Server
  • Hyperscale / Hyperconverged

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Nee
Processor socket*
Socket SP3
Processorfamilie
AMD
Aantal ondersteunde processoren*
4
Compatibele processors
AMD EPYC

Geheugen

Aantal DIMM sloten*
24
Ondersteunde geheugen types*
DDR4-SDRAM
Maximum intern geheugen
8 TB
Ondersteunende RDIMM klok snelheden
3200 MHz
Geheugen form factor
288-pin DIMM
Geheugen voltage
1.2 V
Geheugen kanaal
Achtkanaals
ECC
Ja

Opslagmedia

Aantal storage drives ondersteund*
12
Hot-swap HDD bays*
Ja
Aantal 3.5" bays
12
Opslagschijf afmetingen ondersteund
3.5,M.2

Grafisch

On-board graphics adapter model
Aspeed AST2500

Netwerk

Ethernet LAN
Ja

Poorten & interfaces

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
8
IPMI LAN (RJ-45) port
Ja
VGA (D-Sub)poort(en)
4

Uitbreidingsmodules

PCI Express slots versie
4.0
PCI Express x16 slots
8
Aantal M.2 (M) slots
16

Kenmerken

Geïntegreerde BMC met IPMI
Ja
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

BIOS

BIOS type
AMI
Grootte BIOS-geheugen
128 Mbit

Design

Type behuizing*
Rack (2U)
Kleur van het product
Zwart
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Type koeling
Actief
Aantal ventilatoren
4 ventilator(en)
Ventilator diameter
8 cm

Energie

Netvoeding*
2000 W
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
9.5 - 12.5 A
DC output stroom (+ 12 V)
166,7 A
80 PLUS certificatie
80 PLUS Titanium

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 30 °C
Temperatuur bij opslag
-40 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
438 mm
Diepte
774 mm
Hoogte
88 mm
Gewicht
24,7 kg
Afmetingen voeding (BxDxH)
76 x 336 x 40 mm

Verpakking

Gewicht verpakking
38,6 kg
