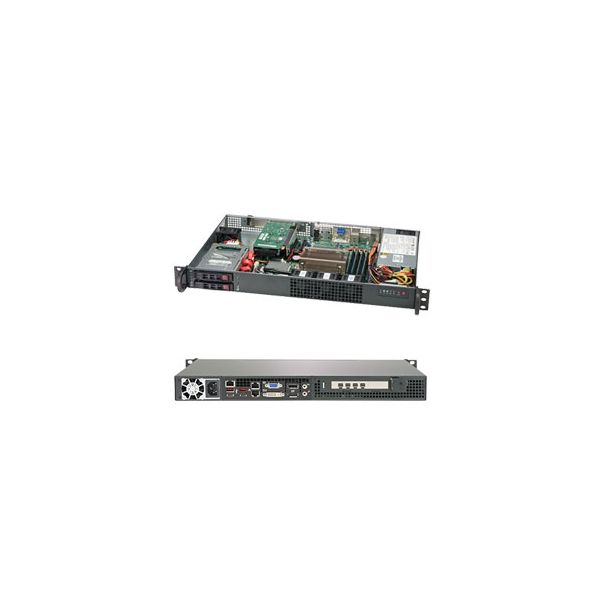

Supermicro SuperServer 1019C-HTN2 LGA 1151 (Socket H4) Rack (1U) Zwart

Supermicro SuperServer 1019C-HTN2, LGA 1151 (Socket H4), Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® E3 familie, DDR4-SDRAM, 4GB, 8GB, 16GB, 32GB, 64GB, 64 GB, 2133,2400,2666 MHz

Niet op voorraad

Fabrikant Super Micro
MPN CSE-510FT-203B
EAN 0672042323432
€ 321,00 excl. BTW

Supermicro SuperServer 1019C-HTN2 LGA 1151 (Socket H4) Rack (1U) Zwart

Super Micro Server Geh Super Micro 1U/1x200W/1x3.5"" o.4x 2.5"" SC510FT
  • Compact 1U Embedded
  • Video Surveillance
  • Network Security
  • Office Server, DVR/NVR
  • Digital Signage, POS

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Nee
Processor socket*
LGA 1151 (Socket H4)
Aantal ondersteunde processoren*
1
Compatibele processors
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® E3 familie

Geheugen

Aantal DIMM sloten*
4
Ondersteunde geheugen types*
DDR4-SDRAM
Ondersteunend DIMM module capaciteiten
4GB, 8GB, 16GB, 32GB, 64GB
Maximum intern geheugen
64 GB
Ondersteunende RDIMM klok snelheden
2133,2400,2666 MHz
ECC
Ja
Non-ECC
Ja

Opslagmedia

Aantal storage drives ondersteund*
2
Hot-swap HDD bays*
Ja
Opslagschijf afmetingen ondersteund
2.5"
Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces
SATA III
Soorten RAID
0, 1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
LAN controller
Intel® I210-AT, Intel I219LM

Poorten & interfaces

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
3
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Aantal Ethernet LAN (RJ-45)-poorten*
2
IPMI LAN (RJ-45) port
Ja
Aantal DisplayPorts
2
VGA (D-Sub)poort(en)
1
DVI-poort
Ja
Microfoon, line-in ingang
Ja

Uitbreidingsmodules

PCI Express x16 (Gen 3.x) slots
1
Aantal M.2 (M) slots
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

BIOS

BIOS type
UEFI AMI

Design

Type behuizing*
Rack (1U)
Kleur van het product
Zwart
LED-indicatoren
HDD, LAN, Stroom
Aantal ventilatoren
4 ventilator(en)
Ventilator diameter
4 cm

Energie

Netvoeding*
200 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC uitgangsstroom (+ 5 V)
8 A
DC output stroom (+ 12 V)
16 A
80 PLUS certificatie
80 PLUS Gold

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
437 mm
Diepte
287 mm
Hoogte
43 mm
Gewicht
4,54 kg

Verpakking

Meegeleverde software
IPMI 2.0 w/ KVM support Watch Dog SuperDoctor® 5
