Supermicro SuperChassis 743AC-668B Full Tower Zwart 668 W

Supermicro SuperChassis 743AC-668B, Full Tower, Server, Zwart, ATX, EATX, micro ATX, Metaal, Fan fail, HDD, Netwerk, Stroom

Nog slechts 9 beschikbaar

Fabrikant Super Micro
MPN CSE-743AC-668B
EAN 0672042287239
€ 663,00 excl. BTW

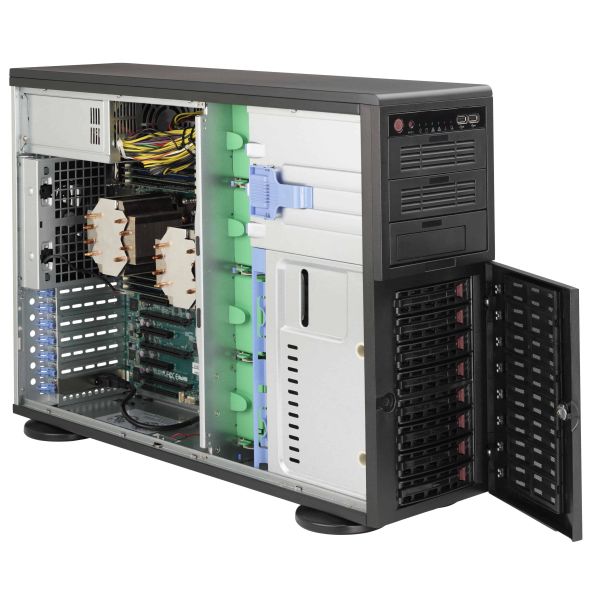

Supermicro SuperChassis 743AC-668B Full Tower Zwart 668 W

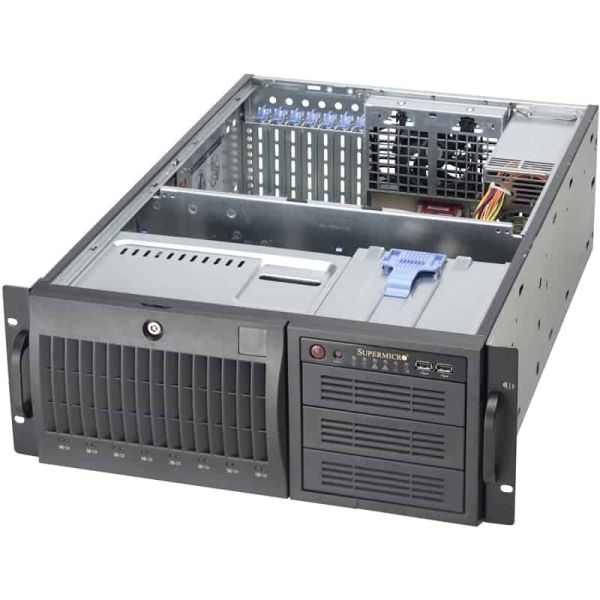

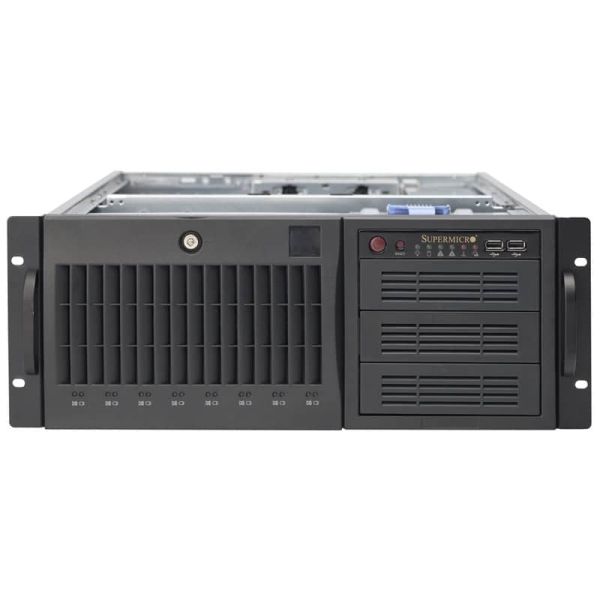

Supermicro's SC743 chassis series is engineered for the latest Intel Xeon processor and is also compatible with previous generation Intel and AMD single/dual processor-based motherboards. Utilizing 80PLUS Platinum high-efficiency power supply and eight hot-swap 3.5" drive bays, this chassis offers reliable performance with problem-free maintenance. Designed with 100% cooling redundancy using a combination of high-performance hot-swappable fans, the chassis minimizes the probability of system downtime or performance degradation from thermal-related issues. Optionally, this tower can be converted to mount in a standard rack.
  • 8x 3.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
  • Front HDD Door Lock & Side Panel Intrusion Switch
  • Front I/O Ports: 2x USB 3.0
  • 4x Middle 8cm (5000 rpm) PWM Fan
  • 4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX
  • 668W Platinum Level Certified High-Efficiency Power Supply
  • 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Metaal
Vormfactor*
Full Tower
Soort*
Server
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, EATX, micro ATX
Aantal 3.5" bays*
8
Aantal 5.25" bays*
3
Aantal externe 5,25 " bays
3
Aantal uitbreidingssleuven
7
Zijraam
Nee
Reset button
Ja
LED-indicatoren
Fan fail, HDD, Netwerk, Stroom
Certificering
BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL

Power voorraad

Vermogenstoevoer inclusief*
Ja
Netvoeding
668 W
Aantal voedingen
1
Ondersteunde vormfactoren stroomvoorziening
PS2
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
80 PLUS certificatie
80 PLUS Platinum

Poorten & interfaces

Audio-ingangen
Nee
Audio-uitgang
Nee
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2

Koeling

Ventilator snelheid
0 - 5000 RPM

Opslagmedia

Ondersteunde HDD-groottes*
3.5"
Hot-swap
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
178 mm
Diepte
647 mm
Hoogte
452 mm
Gewicht
23,6 kg

Verpakking

Breedte verpakking
625 mm
Diepte verpakking
795 mm
Hoogte verpakking
356 mm
Gewicht verpakking
24,9 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

Energie-efficiëntie
92 procent
Backplanes ondersteund
Ja
