Supermicro CSE-745BAC-R1K23B computerbehuizing Full Tower Zwart 1230 W

Supermicro CSE-745BAC-R1K23B, Full Tower, Server, Zwart, ATX, EATX, micro ATX, 4U, HDD, Netwerk, Stroom, Stroomuitval, Systeem

Nog 13 beschikbaar

Fabrikant Super Micro
MPN CSE-745BAC-R1K23B
EAN 0672042429936
€ 1.220,00 excl. BTW

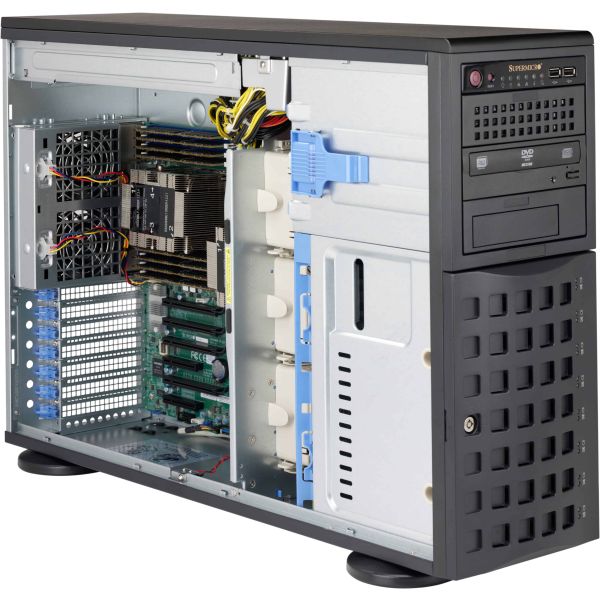

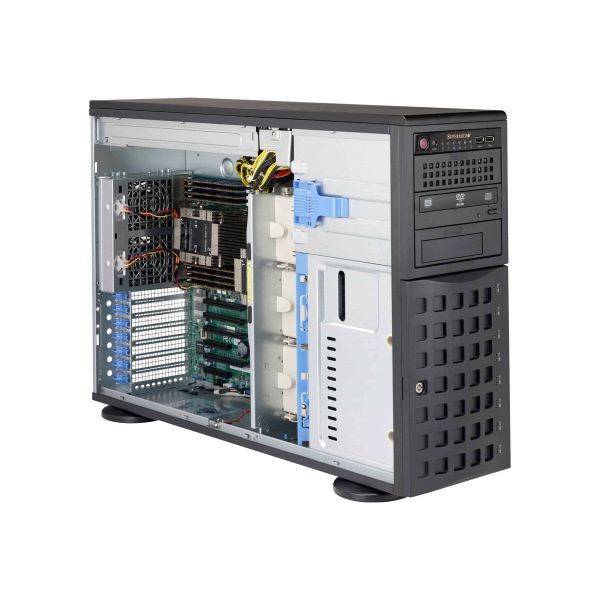

Supermicro CSE-745BAC-R1K23B computerbehuizing Full Tower Zwart 1230 W

Supermicro's SC745 chassis series is optimized for the latest Intel Xeon processor and is also compatible with previous generation Intel and AMD single/dual processor-based motherboards. Utilizing redundant, high-efficiency power supplies (95+%) and eight hot-swap 3.5" drive bays, this chassis offers reliable performance with problem-free maintenance. Designed with 100% cooling redundancy using a combination of high-performance fans, the chassis minimizes the probability of system downtime or performance degradation from thermal-related issues. With seven tool-less PCIe expansion slots, and 6-pin power connectors supporting up to three high-end graphics cards, and it is quick to configure and easy to operate. Optionally, this tower can be converted to a 4U rack-mountable chassis in a standard rack.
  • 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
  • Front HDD Door Lock & Side Panel Intrusion Switch
  • Front I/O Ports: 2x USB 3.0
  • 3x Middle 8cm (9400 rpm) PWM Fans & 2x 8cm (9400 rpm) PWM Fans
  • 4U / Full Tower Chassis Supports max. Motherboard, Sizes - E-ATX 13.68" x 13"/ATX/Micro ATX
  • 1200W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply
  • 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Vormfactor*
Full Tower
Soort*
Server
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, EATX, micro ATX
Aantal 3.5" bays*
8
Aantal 5.25" bays*
3
Aantal 2.5" bays
8
Aantal uitbreidingssleuven
7
Rack-montage
Ja
Rackcapaciteit
4U
Reset button
Ja
Aan-/uitknop
Ja
LED-indicatoren
HDD, Netwerk, Stroom, Stroomuitval, Systeem
Certificering
Redundant Titanium Level Certified

Power voorraad

Vermogenstoevoer inclusief*
Ja
Netvoeding
1230 W
Aantal SATA-aansluitingen
8

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2

Koeling

Aantal geïntstalleerde ventilators voorkant
3x 80 mm
Maximale aantal ventilators voorkant
3
Voorste ventilators ondersteunende diameters
80 mm
Geïnstalleerde ventilators achterkant
2x 80 mm
Maximaal aantal ventilators achterkant
2
Achterkant ventilators ondersteunende diameters
80 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5,5.25"
Maximum aantal HDD's per behuizing
19
Hot-swap
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
178 mm
Diepte
647 mm
Hoogte
452 mm
Gewicht
26,8 kg
