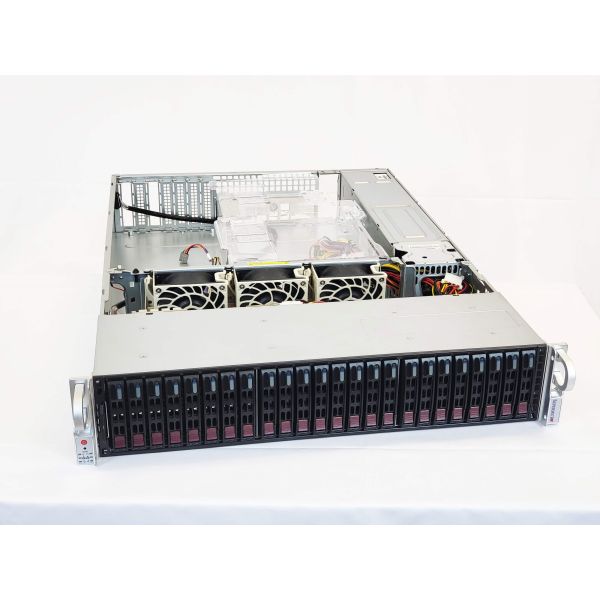

Supermicro SC826BE1C4-R1K23LPB Rack Zwart 1200 W

Supermicro SC826BE1C4-R1K23LPB, Rack, Server, Zwart, ATX, EATX, 2U, Fan fail, HDD, LAN, Stroom

Niet op voorraad

Fabrikant Super Micro
MPN CSE-826BE1C4-R1K23LPB
EAN 0672042269068
€ 1.562,00 excl. BTW

Supermicro SC826BE1C4-R1K23LPB Rack Zwart 1200 W

Supermicro's SC826 chassis maximizes the storage capacity of a 2U form factor by offering 12 hot-swap hard drive bays for extra storage. The chassis design optimizes every aspect of interior space without compromising superior cooling. It is also equipped with a redundant 740W, 920W and 1280W Platinum Level(95%) high efficiency power supply for superb power savings. 1200W chassis models come with palletized package designed to protect system during the shipping. SC826 with SAS3 support is the ideal storage chassis for limited rack space constrain.
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  • 12 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
  • 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
  • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
  • 7 low-profile expansion slot(s)
  • 3 x 8cm high-performance PWM fan(s)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Vormfactor*
Rack
Soort*
Server
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, EATX
Aantal 3.5" bays*
12
Aantal uitbreidingssleuven
7
Rack-montage
Ja
Rackcapaciteit
2U
Zijraam
Nee
Reset button
Ja
Aan-/uitknop
Ja
LED-indicatoren
Fan fail, HDD, LAN, Stroom

Power voorraad

Vermogenstoevoer inclusief*
Ja
Netvoeding
1200 W
Aantal voedingen
1
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
80 PLUS certificatie
80 PLUS Titanium

Poorten & interfaces

Audio-ingangen
Nee
Audio-uitgang
Nee

Opslagmedia

Ondersteunde HDD-groottes*
3.5"

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
437 mm
Diepte
647 mm
Hoogte
89 mm
Afmetingen voeding (BxDxH)
76 x 360 x 40 mm

Verpakking

Breedte verpakking
678 mm
Diepte verpakking
876 mm
Hoogte verpakking
290 mm
Gewicht verpakking
24,9 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

Backplanes ondersteund
Ja
