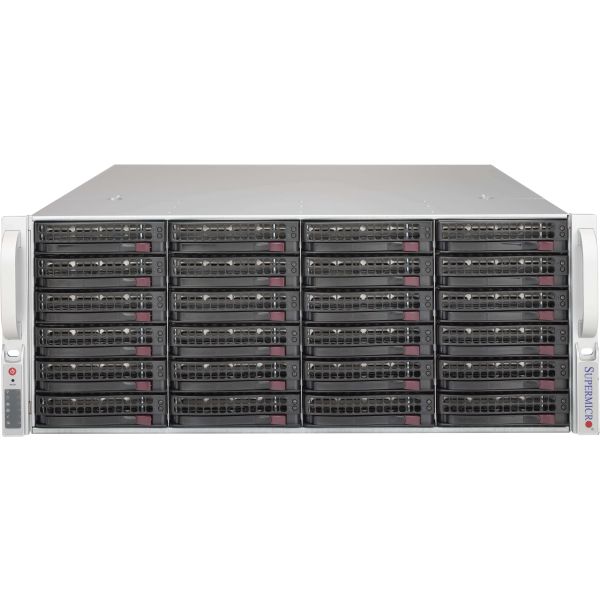

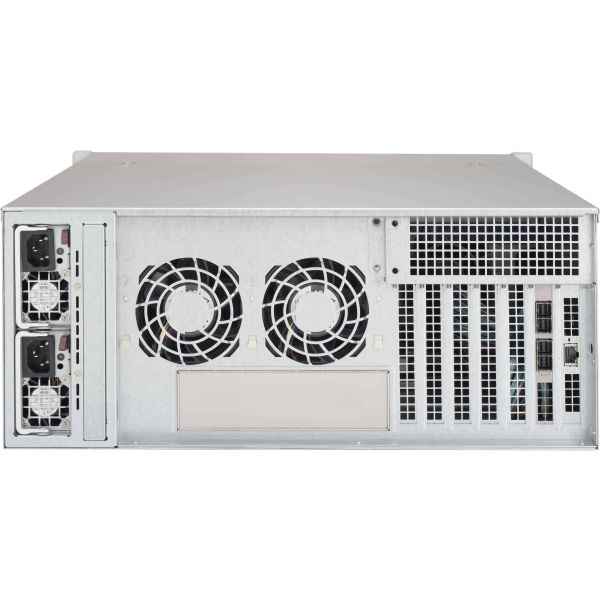

Supermicro SuperChassis 846BE1C-R1K03JBOD disk array Rack (4U) Zwart

Supermicro SuperChassis 846BE1C-R1K03JBOD, SATA III, 3.5", 27,2 kg, Rack (4U), Zwart

Niet op voorraad

Fabrikant Super Micro
MPN CSE-846BE1C-R1K03JBOD
EAN 0672042197507
€ 2.445,00 excl. BTW

Supermicro SuperChassis 846BE1C-R1K03JBOD disk array Rack (4U) Zwart

Be Confident with Supermicro's Application-Optimized Chassis Solutions

Supermicro Chassis Features:

- System Level Optimized Solutions
- Full Range of Rackmount, Workstation & Tower Chassis - mini-1U, 1U, 2U, 3U & 4U
- Support SAS3 12Gb/s & NVMe technology
- Optimized thermal design: better cooling performance, less power consumption
- Up to Titanium Level (96%) High-Efficiency Power Supplies
- High Availability, Adaptability, Scalability and Reliability
- Outstanding Price/Performance Ratio
- Highest Quality Components, Fans & Power Supplies
- Hot-Swappable Redundant Power Supplies, Fans and Drive Trays
- Maximum Storage Capacity

These design advantages have helped Supermicro rapidly establish its reputation as a leader in chassis design. To see the future of chassis designs now, check out our latest chassis solutions. Optimized for the latest x86 processors, these state-of-the-art chassis are equipped with hot-plug heavy-duty fans, fan speed controls and revolutionary air-shroud designs for 100% airflow redundancy.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslagdrives geïnstalleerd*
Nee
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD
Aantal storage drives ondersteund*
24
Opslag schijf-interface
SATA III
Opslag schijfgrootte
3.5"
Soorten RAID
JBOD
Overdrachtssnelheid
12 Gbit/s
Hot-swap drive bays
Ja

Poorten & interfaces

Host-poorten
4
Mini-SAS-hostpoort
Ja

Design

Type behuizing*
Rack (4U)
Kleur van het product
Zwart
LED-indicatoren
Netwerk
Aantal ventilatoren
5 ventilator(en)
Overtollige fans ondersteuning
Ja
Certificering
BSMI, CCC, CE/EMC, FCC A, UL/CB, UL/CUL

Prestatie

Backplanes ondersteund
Ja

Energie

Capaciteit voedingsunit (PSU)
1000 W
Aantal voedingen
2
Redundante voeding
Ja
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte
437 mm
Diepte
660 mm
Hoogte
178 mm
Gewicht
27,2 kg
Breedte verpakking
686 mm
Diepte verpakking
947 mm
Hoogte verpakking
376 mm
Gewicht verpakking
36,3 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717020

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 35 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent
