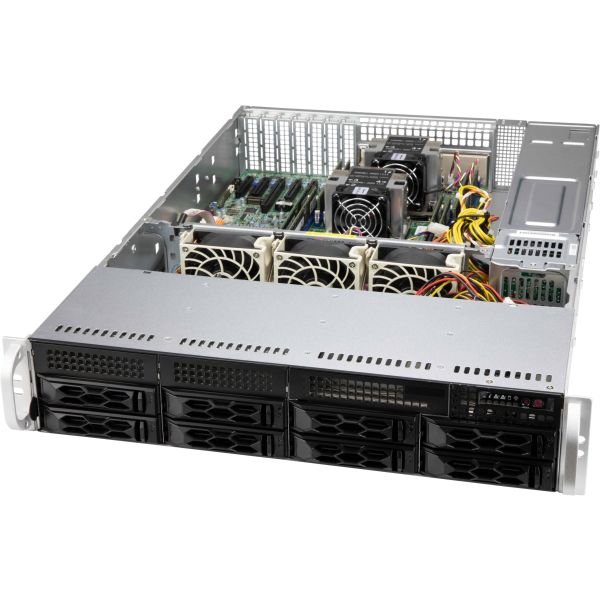

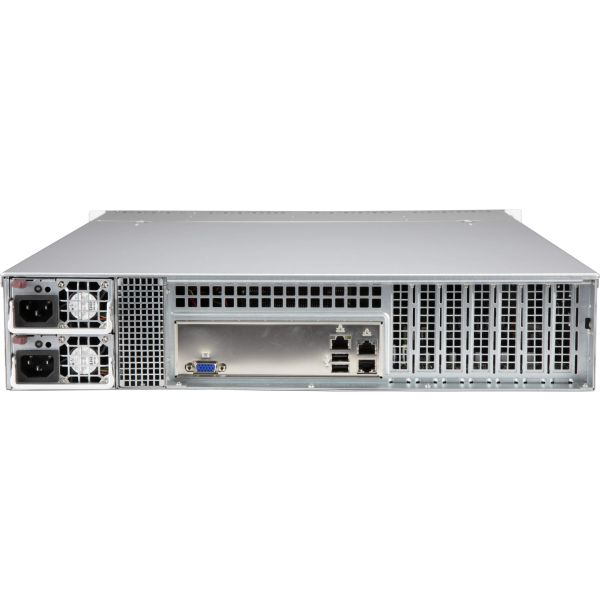

Supermicro CSE-LA25TQC-R609LP computerbehuizing Rack Zwart 600 W

Supermicro CSE-LA25TQC-R609LP, Rack, Server, Zwart, ATX, EATX, 2U, HDD, Netwerk, Stroom, Stroomuitval, Systeem

Nog 16 beschikbaar

Fabrikant Super Micro
MPN CSE-LA25TQC-R609LP
EAN 0672042384396
€ 552,00 excl. BTW

Supermicro CSE-LA25TQC-R609LP computerbehuizing Rack Zwart 600 W

Super Micro Server Geh Super Micro 2U/2x600W/8x3.5"" LA25TQC-R609LP
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  • 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay Optional 2x 3.5" fixed drive bay, Optional rear 2x 2.5" hot-swap drive bay kit
  • 2U 8-Slot 12G Backplane for 8x 3.5" SAS3/SATA HDD/SSD
  • 600W / 650W 1U Redundant Power Supply
  • 7 low-profile expansion slot(s)
  • 3x 80mm heavy duty fan(s) with PWM fan(s) speed control
  • Support Service Tag for system information
  • OEM Only, MOQ Applies

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Vormfactor*
Rack
Soort*
Server
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, EATX
Aantal 3.5" bays*
8
Aantal 2.5" bays
2
Aantal interne 3.5" baaien
2
Rack-montage
Ja
Rackcapaciteit
2U
Reset button
Ja
Aan-/uitknop
Ja
LED-indicatoren
HDD, Netwerk, Stroom, Stroomuitval, Systeem
Certificering
80 PLUS Platinum Certified

Power voorraad

Vermogenstoevoer inclusief*
Ja
Netvoeding
600 W
Aantal SATA-aansluitingen
8

Poorten & interfaces

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2

Koeling

Geïnstalleerde ventilators achterkant
3x 80mm
Maximaal aantal ventilators achterkant
3

Koeling

Achterkant ventilators ondersteunende diameters
80 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"
SSD-vormfactor
3.5"
Maximum aantal HDD's per behuizing
8
Hot-swap
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
437 mm
Diepte
647 mm
Hoogte
89 mm
Gewicht
15 kg

Verpakking

Breedte verpakking
610 mm
Diepte verpakking
864 mm
Hoogte verpakking
229 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
