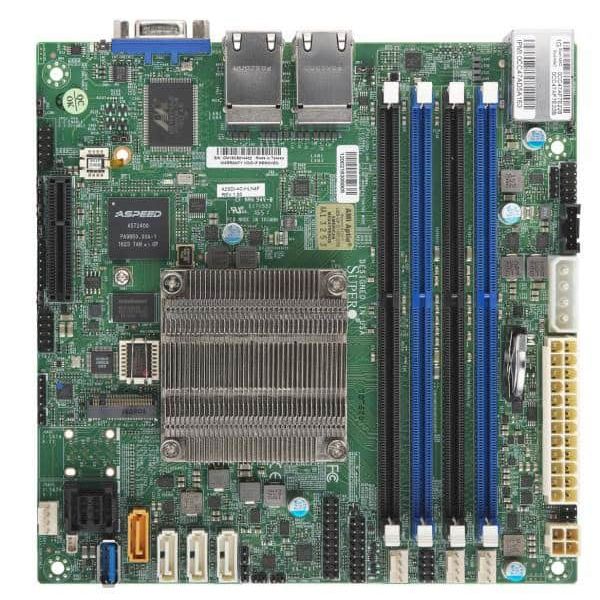

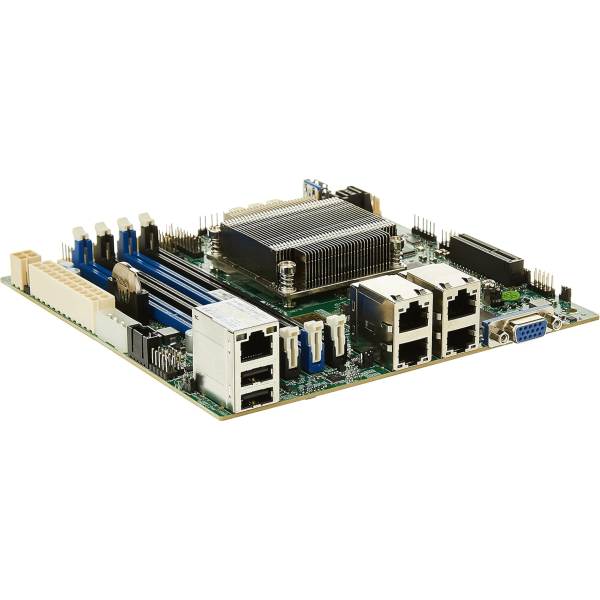

Supermicro A2SDI-4C-HLN4F mini ITX

Supermicro A2SDI-4C-HLN4F, Intel, Intel Atom®, DDR4-SDRAM, 256 GB, DIMM, 1.2 V

Ruim op voorraad

Fabrikant Super Micro
MPN MBD-A2SDI-4C-HLN4F-B
EAN 0672042268450
€ 576,00 excl. BTW

Supermicro A2SDI-4C-HLN4F mini ITX

Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Compatibele processors*
Intel Atom®

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen voltage
1.2 V
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
1600,1866,2133,2400 MHz
Maximum intern geheugen*
256 GB
Ondersteunde geheugenmodule capaciteiten
4GB, 8GB, 16GB, 32GB, 64GB
Niet gebufferd geheugen
Ja
Maximum UDIMM geheugen
256 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
SATA III

Grafisch

Grafische adapter-familie
ASPEED
Grafische adapter
AST2400

Interne aansluitingen

USB 2.0 aansluitingen*
2
Aantal SATA III connectors*
8

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Aantal Ethernet LAN (RJ-45)-poorten*
4
VGA (D-Sub)poort(en)*
1
Aantal COM-poorten
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet

Kenmerken

Component voor*
PC
Moederbord form factor*
mini ITX
Moederbord chipset familie*
Intel
Type stroombron
ATX, DC
DC voltage input
12 V

BIOS

BIOS type*
UEFI AMI

Eisen aan de omgeving

Temperatuur bij opslag
0 - 60 °C
Bedrijfstemperatuur (T-T)
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
10 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
170,2 mm
Diepte
170,2 mm

Overige specificaties

Ondersteunende RDIMM klok snelheden
2133 MHz
Maximum UDIMM geheugen
64 GB
Geregistreerd
Ja
Ondersteunende RDIMM klok snelheden
2133 MHz
