Supermicro X11DPI-NT, Intel, 10,4 GT/s, 205 W, DDR4-SDRAM, 2048 GB, 1.2 V

Nog slechts 5 beschikbaar

Fabrikant Super Micro
MPN MBD-X11DPI-NT-B
EAN 0672042272297

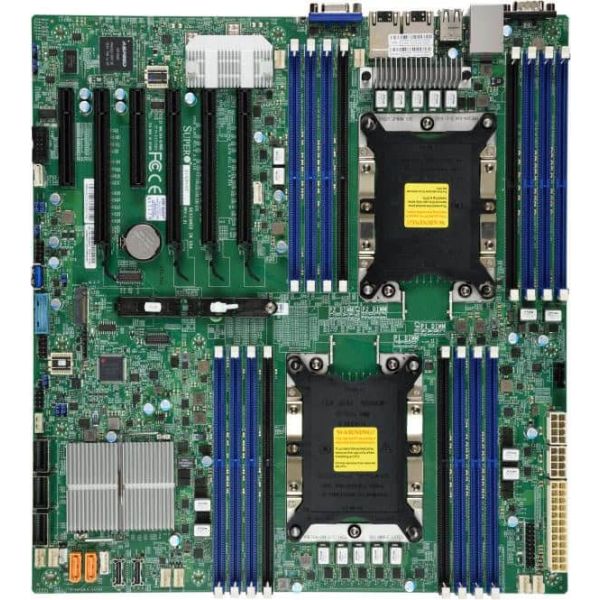

Supermicro X11DPI-NT Verlengd ATX

Supermicro motherboard advantages:
Technologically-advanced Motherboard Designs Since 1993
Consistent highest-quality Design, Components, and Production Expertise
Extensive Range of x86 Serverboards Available
Competitive Price/Performance
High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Systeembus
10,4 GT/s
Processor aantal cores ondersteund
28
Processor thermaal vermogen (max)
205 W

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Geheugen voltage
1.2 V
ECC
Ja
Supported memory clock speeds
2133,2400,2666 MHz
Maximum intern geheugen*
2048 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

On-board graphics adapter model
Aspeed AST2400

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
2
VGA (D-Sub)poort(en)*
1
Seriële poort(en)
1
Aantal COM-poorten
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet

Netwerk

Wifi*
Nee

Kenmerken

Component voor*
Server
Moederbord form factor*
Verlengd ATX

Uitbreidingsmodules

PCI Express x16 (Gen 3.x) slots
4

BIOS

BIOS type*
UEFI AMI

Eisen aan de omgeving

Temperatuur bij opslag
-20 - 60 °C
Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
10 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
304,8 mm
Diepte
330,2 mm

Inhoud van de verpakking

Meegeleverde software
Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

Overige specificaties

PCI Express x8 (Gen 3.x) slots
2
Ondersteunde LRDIMM module capciteit
64GB
Ondersteunde LRDIMM kloksnelheden
2133,2400,2666 MHz
Ondersteunende UDIMM module capaciteit
64GB
Aantal DIMM sloten
16
Aantal ondersteunde processoren
2
