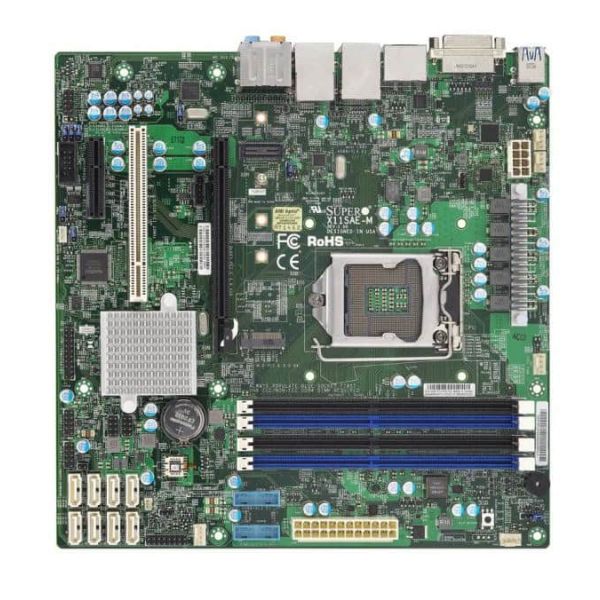

Supermicro X11SAE-M Intel® C236 LGA 1151 (Socket H4) micro ATX

Supermicro X11SAE-M, Intel, LGA 1151 (Socket H4), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, E3-1200, DDR4-SDRAM, 64 GB

Nog slechts 4 beschikbaar

Fabrikant Super Micro
MPN MBD-X11SAE-M-O
EAN 0672042204519
€ 427,00 excl. BTW

Supermicro X11SAE-M Intel® C236 LGA 1151 (Socket H4) micro ATX

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature - rich Support and application optimization

These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

In addition, Supermicro also offers high-performance Embedded motherboards with product life cycles of up to 7 years.
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots
  • Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM
  • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280/22110)
  • 6 USB 3.0 (2 rear + 4 via header(s)), 6 USB 2.0 (2 rear + 4 via header(s)), 2 USB 3.1 (10Gbps, rear)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1151 (Socket H4)
Compatibele processors*
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Intel® Xeon series
E3-1200

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Geheugen voltage
1.2 V
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
1600,1866,2133,2400 MHz
Maximum intern geheugen*
64 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
4
Aantal SATA III connectors*
8
ATX Power connector (24-pin)
Ja
Aansluitingen voor behuizingsventilatoren
5
Chassis intrusion aansluiting
Ja
COM aansluitingen
1
TPM connector
Ja

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
2
Aantal HDMI-poorten*
1
HDMI versie
1.4
DVI-D poorten*
1
Aantal DisplayPorts
1
DisplayPort versie
1.2

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I210-AT, Intel I219LM
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel® C236
Audiochip
Realtek ALC888S
PC gezondheids monitor
Ventilator, LED, Voeding, Temperatuur, Spanning
Component voor*
Workstation
Moederbord form factor*
micro ATX
Waakhondfunctie
Ja

Uitbreidingsmodules

PCI Express x16 (Gen 3.x) slots
1
PCI-slots
1

BIOS

BIOS type*
UEFI AMI
ACPI version
5.0
Plug and play
Ja
Versie Desktop Management Interface (DMI)
2.3
Systeem Management BIOS (SMBIOS) versie
3.0
Realtimeklok (RTC)
Ja

Processor speciale functies

Trusted Platform Module (TPM)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
243,8 mm
Diepte
243,8 mm

Inhoud van de verpakking

Meegeleverde software
AMT, SuperDoctor 5, vPro

Overige specificaties

DVI-poort
Ja
PCI Express x4 (Gen 3.x) slots
1
UEFI-versie
2.3.1
Ondersteunend DIMM module capaciteiten
4GB, 8GB, 16GB
Ondersteunende RDIMM klok snelheden
1600,1866,2133,2400 MHz
Aantal DIMM sloten
4
Aantal ondersteunde processoren
1
Thermal Design Power (TDP)
95 W

Technische details

Duurzaamheidscertificaten
RoHS
