Supermicro X11SCL-F, Intel, LGA 1151 (Socket H4), Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, DDR4-SDRAM, 128 GB, 1.2 V

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Super Micro
MPN MBD-X11SCL-F-B
EAN 0672042327645

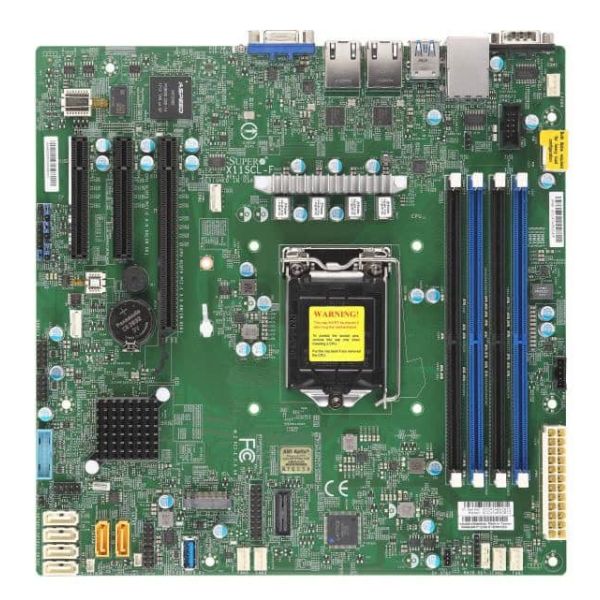

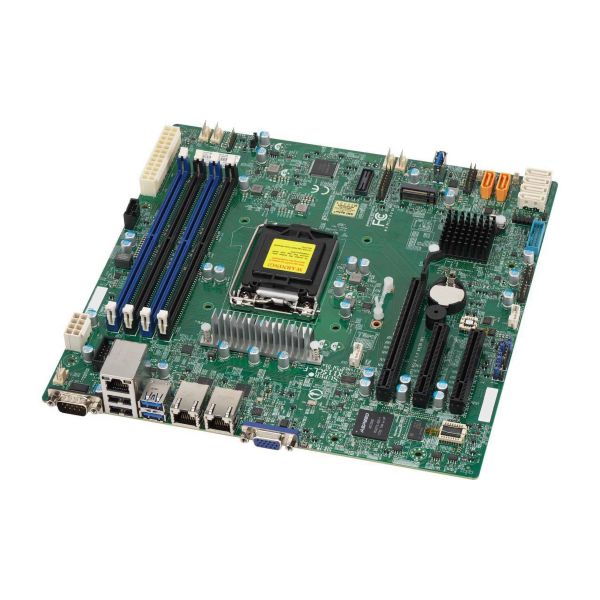

Supermicro X11SCL-F Intel C242 LGA 1151 (Socket H4) micro ATX

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature-rich Support and application optimization

These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

In addition, Supermicro also offers high-performance Embedded motherboards with product life cycles of up to 7 years.
  • 8th/9th Generation Intel®
  • Intel® C242 chipset
  • Dual GbE LAN with Intel® i210-AT
  • M.2 NGFF connector

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1151 (Socket H4)
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®
Processor aantal cores ondersteund
6

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Geheugen voltage
1.2 V
Supported memory clock speeds
2666 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

On-board graphics adapter model
Aspeed AST2500

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
6
COM aansluitingen
1
TPM connector
Ja

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
2
VGA (D-Sub)poort(en)*
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet

Netwerk

LAN controller
Intel I210
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel C242
PC gezondheids monitor
Ventilator, LED, Temperatuur, Spanning
Component voor*
Server
Moederbord form factor*
micro ATX

Uitbreidingsmodules

PCI Express x16 (Gen 3.x) slots
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI
Grootte BIOS-geheugen
256 Mbit
ACPI version
6.0
Systeem Management BIOS (SMBIOS) versie
2.7

Eisen aan de omgeving

Temperatuur bij opslag
-40 - 70 °C
Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

UEFI-versie
2.7
Ondersteunende UDIMM module capaciteit
4GB, 8GB, 16GB, 32GB
Aantal DIMM sloten
4
Aantal ondersteunde processoren
1
Thermal Design Power (TDP)
95 W
