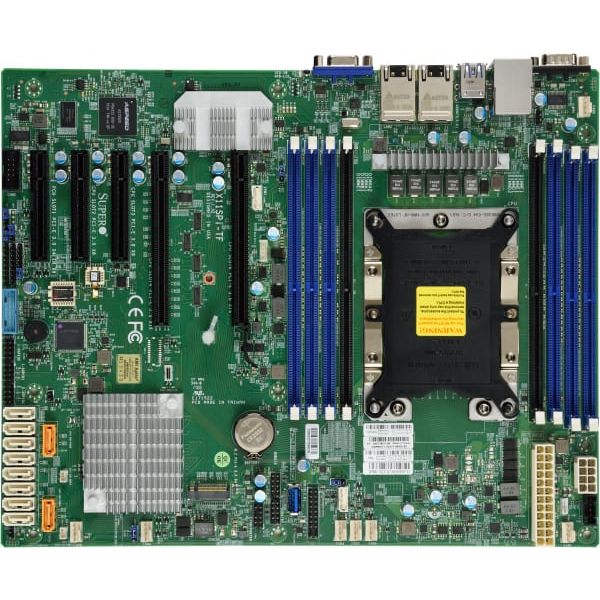

Supermicro X11SPI-TF ATX
Supermicro X11SPI-TF, Intel, 205 W, DDR4-SDRAM, 1024 GB, 1.2 V, 1600,1866,2133,2400,2666 MHz
Nog 12 beschikbaar
Fabrikant
Super Micro
MPN
MBD-X11SPI-TF-B
EAN
4260387381055
€ 736,00
excl. BTW
€ 736,00
excl. BTW
excl. BTW
Supermicro X11SPI-TF ATX
Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Processor
Processorfabrikant*
Intel
Processor aantal cores ondersteund
28
Processor thermaal vermogen (max)
205 W
Geheugen
Ondersteunde geheugen types*
DDR4-SDRAM
Geheugen voltage
1.2 V
ECC
Ja
Supported memory clock speeds
1600,1866,2133,2400,2666 MHz
Maximum intern geheugen*
1024 GB
Maximum UDIMM geheugen
256 GB
Opslag-controllers
Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10
Grafisch
On-board graphics adapter model
Aspeed AST2500
Interne aansluitingen
USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
Serial port headers
1
Aansluitingen achterzijde
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
2
VGA (D-Sub)poort(en)*
1
Seriële poort(en)
1
Netwerk
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Wifi*
Nee
Kenmerken
Component voor*
Server
Moederbord form factor*
ATX
Uitbreidingsmodules
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type*
UEFI AMI
ACPI version
6.0
Eisen aan de omgeving
Temperatuur bij opslag
-40 - 70 °C
Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
Gewicht en omvang
Breedte
304,8 mm
Diepte
243,8 mm
Inhoud van de verpakking
Meegeleverde software
Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Overige specificaties
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
Ondersteunend DIMM module capaciteiten
4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Ondersteunde LRDIMM module capciteit
32GB, 64GB
Maximum LRDIMM geheugen
512 GB
Ondersteunende UDIMM module capaciteit
4GB, 8GB, 16GB, 32GB
Aantal DIMM sloten
8
Aantal ondersteunde processoren
1
