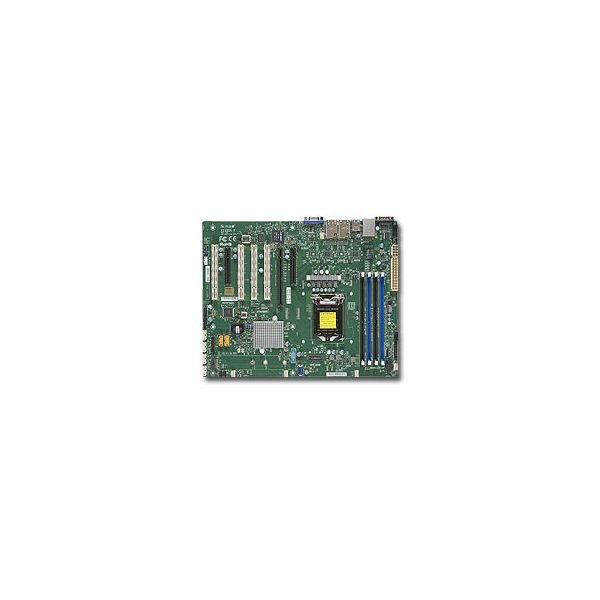

Supermicro X11SSA-F, Intel, LGA 1151 (Socket H4), E3-1200, 80 W, DDR4-SDRAM, 64 GB

Niet op voorraad

Fabrikant Super Micro
MPN MBD-X11SSA-F-O
EAN 0672042198610

Supermicro X11SSA-F Intel® C236 LGA 1151 (Socket H4) ATX

Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1151 (Socket H4)
Intel® Xeon series
E3-1200
Processor thermaal vermogen (max)
80 W

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Geheugen voltage
1.2 V
ECC
Ja
Supported memory clock speeds
1600,1866,2133 MHz
Maximum intern geheugen*
64 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

On-board graphics adapter model
Aspeed AST2400

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
6
Chassis intrusion aansluiting
Ja
COM aansluitingen
1
TPM connector
Ja

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
2
IPMI LAN (RJ-45) port
Ja
VGA (D-Sub)poort(en)*
1
Aantal COM-poorten
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel® C236
Component voor*
Server
Moederbord form factor*
ATX

Uitbreidingsmodules

PCI-slots
4

BIOS

BIOS type*
AMI
Grootte BIOS-geheugen
16 Mbit
ACPI version
5.0

Processor speciale functies

Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
1.2

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Gewicht en omvang

Breedte
305 mm
Diepte
224 mm

Overige specificaties

PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
Ondersteunend DIMM module capaciteiten
4GB, 8GB, 16GB
Aantal DIMM sloten
4
Aantal ondersteunde processoren
1

Technische details

Duurzaamheidscertificaten
RoHS
