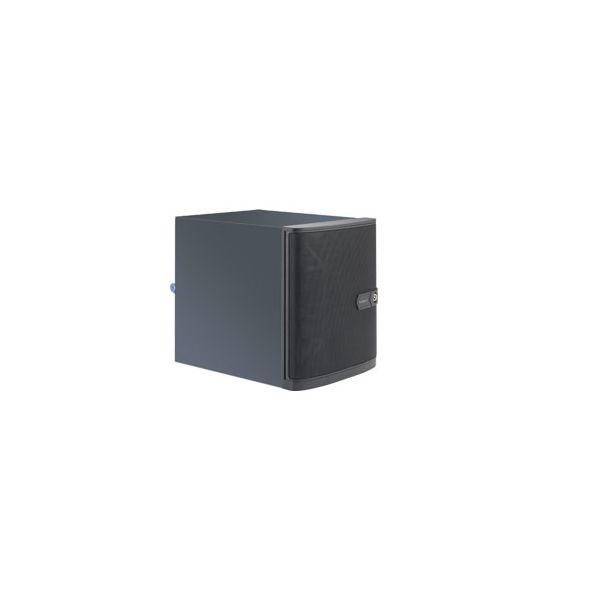

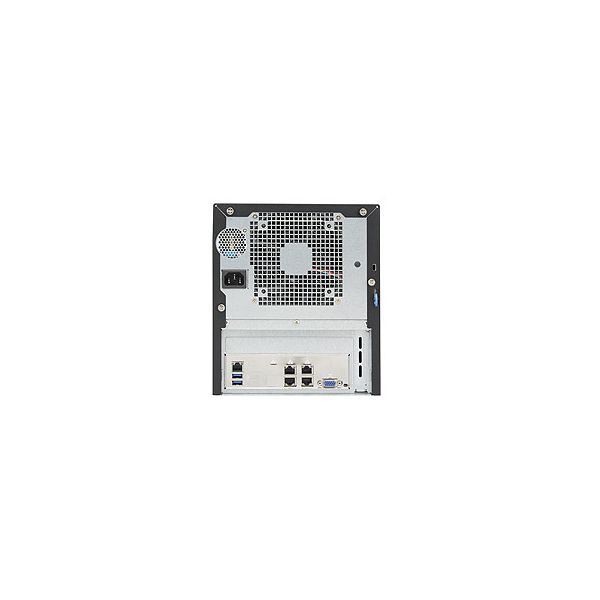

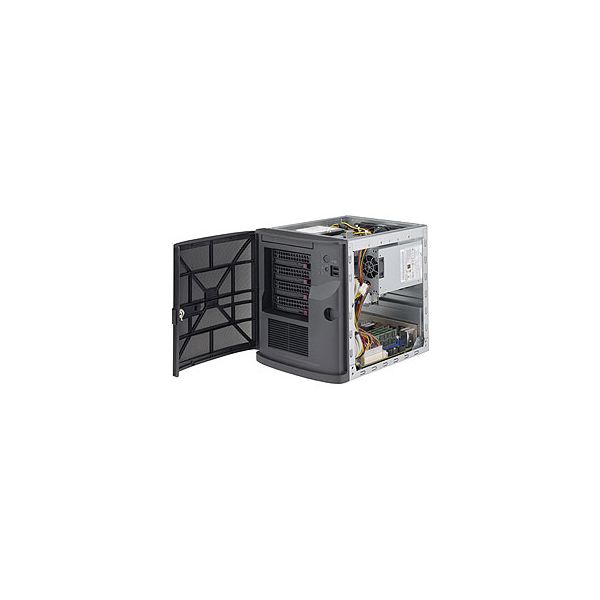

Supermicro 5028D-TN4T BGA 1667 Zwart

Supermicro 5028D-TN4T, BGA 1667, Intel, D-1541, 2,1 GHz, Intel® Xeon®, D-1500

Niet op voorraad

Fabrikant Super Micro
MPN SYS-5028D-TN4T
EAN 0672042189205
€ 1.178,00 excl. BTW

Supermicro 5028D-TN4T BGA 1667 Zwart

These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom™ and dual Xeon® to quad Xeon® MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Ja
Processor socket*
BGA 1667
Processorfamilie
Intel
Processormodel
D-1541
Frequentie van processor
2,1 GHz
Aantal ondersteunde processoren*
1
Compatibele processors
Intel® Xeon®
Intel® Xeon series
D-1500

Geheugen

Aantal DIMM sloten*
4
Ondersteunde geheugen types*
DDR4-SDRAM
Ondersteunend DIMM module capaciteiten
16GB, 32GB, 4GB, 8GB
Maximum intern geheugen
128 GB
Maximum UDIMM geheugen
128 GB
Maximum UDIMM geheugen
64 GB
Geheugen voltage
1.2 V
ECC
Ja
Non-ECC
Ja

Opslagmedia

Aantal storage drives ondersteund*
6
Hot-swap HDD bays*
Ja
Opslagschijf afmetingen ondersteund
2.5,3.5"
Ondersteunde opslagstationinterfaces
SATA III

Grafisch

On-board graphics adapter model
Aspeed AST2400

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Koperen ethernetbekabelingstechnologie
1000BASE-T, 100BASE-T, 10BASE-T
LAN controller
Intel® I350-AM2, Realtek RTL8201N

Poorten & interfaces

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal Ethernet LAN (RJ-45)-poorten*
5
VGA (D-Sub)poort(en)
1
Seriële poort(en)
1
Aantal SATA III connectors
6

Uitbreidingsmodules

PCI Express x4 slots
1
PCI Express x16 slots
1

Kenmerken

Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
1.2
Ingebouwde opties beschikbaar
Nee

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Processor speciale functies

Intelligent Platform Management Interface (IPMI) support
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja

BIOS

BIOS type
AMI
Grootte BIOS-geheugen
16 Mbit
ACPI version
4.0
BIOS-functies
APM 1.2, PCI 2.2, Plug & Play, UEFI

Design

Kleur van het product
Zwart
LED-indicatoren
Ja
Aan/uitschakelaar
Ja

Energie

Netvoeding*
250 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
10 - 95 procent

Gewicht en omvang

Breedte
210 mm
Diepte
279 mm
Hoogte
240 mm
Gewicht
6,8 kg

Overige specificaties

CPU configuratie (max)
1
