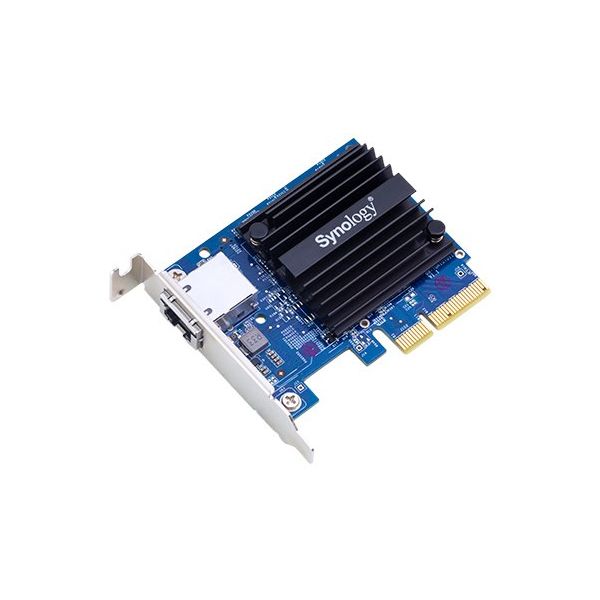

Synology E10G18-T1 netwerkkaart Intern Ethernet 10000 Mbit/s
Flexible and economic solution for 10GbE adoption
Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.
5 year warranty
Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.
Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.
5 year warranty
Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
PCI versie
3.0
PCI Card form factor
Full-height (low-profile)
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500,5000,10000 Mbit/s
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
Auto-negotiation
Ja
Jumbo frames
9000
Design
Kleur van het product
Zwart, Blauw
Intern*
Ja
Design
Compatibele producten
FS series:FS2500, FS6400, FS3600, FS3400, FS3017, FS2017, FS1018
SA series:SA3600, SA3400, SA3200D
UC series:UC3200
22 series:DS3622xs+, DS2422+
21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
20 series:RS820RP+, RS820+
19 series:RS1619xs+, RS1219+, DS2419+, DS2419+II, DS1819+
18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+
17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS3617xsII, DS1817+, DS1517+
16 series:RS18016xs+
15 series:RC18015xs+, DS3615xs
14 series:RS3614xs+, RS3614RPxs, RS3614xs
13 series:RS10613xs+, RS3413xs+
12 series:RS3412RPxs, RS3412xs, DS3612xs
11 series:RS3411RPxs, RS3411xs, DS3611xs
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Gewicht en omvang
Breedte
68,1 mm
Diepte
13,6 mm
Hoogte
86 mm
Verpakking
Aantal
1
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Datastroombeheer
Ja
