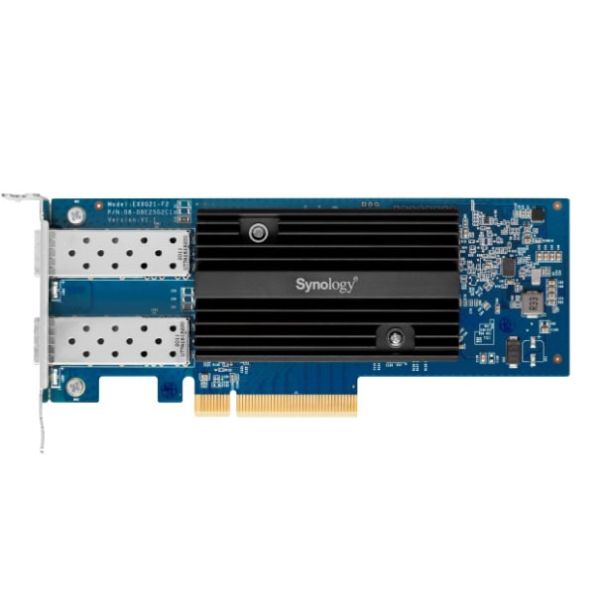

Synology E10G21-F2 netwerkkaart Intern Fiber 10000 Mbit/s
Cost-effective upgrade for Synology NAS and IP-SAN
The E10G21-F2 adapter gives you more connectivity options with support for SR and LR transceivers and DAC options. Dual 10GbE ports help alleviate network bandwidth limitations and support Link Aggregation (network bonding) for increased resiliency in the face of network disruptions. CPU offloading technologies reduce network transfer overhead on the host system's processor to boost system performance.
The E10G21-F2 adapter gives you more connectivity options with support for SR and LR transceivers and DAC options. Dual 10GbE ports help alleviate network bandwidth limitations and support Link Aggregation (network bonding) for increased resiliency in the face of network disruptions. CPU offloading technologies reduce network transfer overhead on the host system's processor to boost system performance.
- Throughput
- Dual-port 10GbE SFP+
- Flexibility
- Optical SR, Optical LR, and DAC support
- Compatibility
- Purpose-built for Synology servers
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Vezel-optische connector
SFP+
PCI versie
3.0
PCI Card form factor
Full-height (low-profile)
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.3ad, IEEE 802.3ae
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Design
Component voor*
Server
Design
Kleur van het product
Zwart, Blauw, Zilver
Intern*
Ja
Compatibele producten
FS series:FS2500, FS6400, FS3600, FS3400, FS3017, FS2017, FS1018
SA series:SA3600, SA3400, SA3200D
UC series:UC3200
22 series:DS3622xs+, DS2422+
21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
20 series:RS820RP+, RS820+
19 series:RS1619xs+, DS2419+, DS2419+II, DS1819+
18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Gewicht en omvang
Breedte
168 mm
Diepte
69 mm
Hoogte
17,3 mm
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
