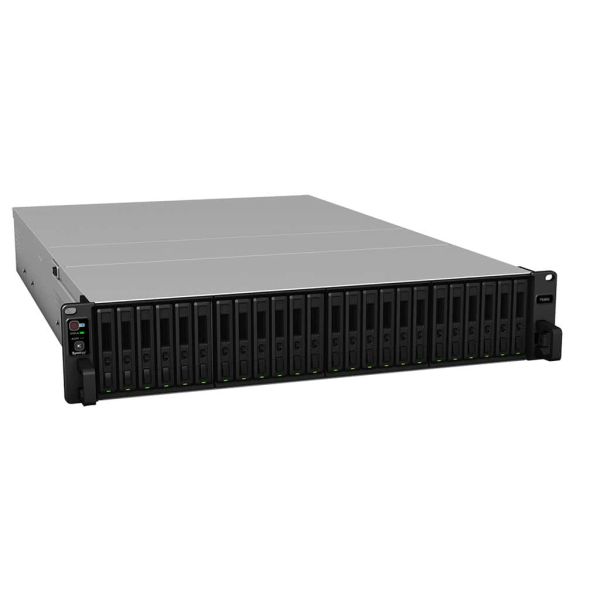

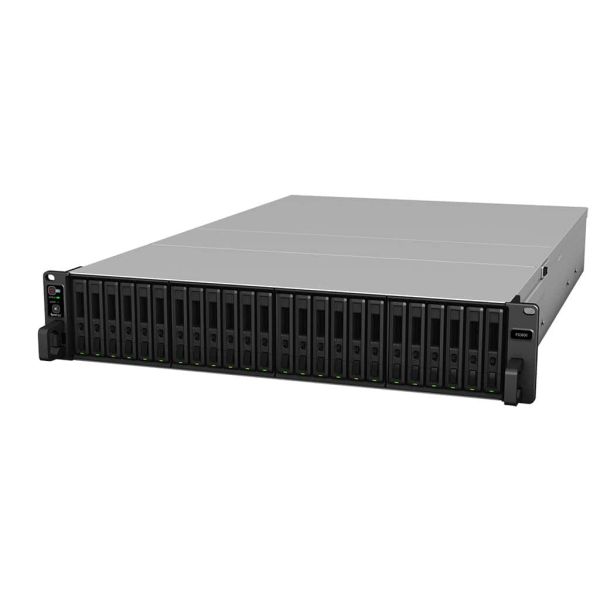

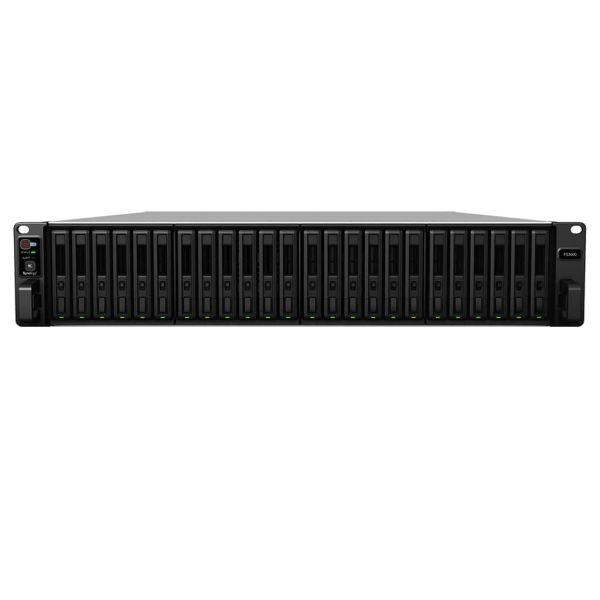

Synology FlashStation FS3600, NAS, Rack (2U), Intel® Xeon® D, D-1567, Zwart

Nog slechts 8 beschikbaar

Fabrikant Synology
MPN FS3600
EAN 4711174723614

Synology FlashStation FS3600 data-opslag-server NAS Rack (2U) Ethernet LAN Zwart D-1567

Fast and scalable all-flash NAS
FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.

Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.

Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.

- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Ondersteunde opslagstationinterfaces
SATA III, Serial Attached SCSI (SAS)
RAID support*
Ja
Hot-swap drive bays
Ja
Ondersteunde bestandsystemen
BTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
24
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon® D
Processormodel*
D-1567
Frequentie van processor*
2,1 GHz
Maximale turbofrequentie van processor
2,7 GHz
Aantal processorkernen
12
Processor aantal threads
24
Processor cache
18 MB
L3 cache
18 MB
CPU configuratie (max)
1
PCI Express configuraties
1x16, 1x4, 1x8
PCI Express slots versie
2.0, 3.0
Processor cache type
L3
Processorcode
SR2M3
Codenaam processor
Broadwell
Processor lithografie
14 nm
Processor operating modes
64-bit
Verpakkingsgrootte processor
37.5 x 37.5 mm
Processorserie
Intel Xeon D-1500
Processor socket
BGA 1667
Schaalbaarheid
1S
Stepping
Y0
Thermal Design Power (TDP)
65 W
Maximaal intern geheugen ondersteund door processor
128 GB
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Ondersteund maximum RAM
128 GB
Geheugenslots
4
Intern geheugen*
16 GB
Geheugen form factor
DIMM

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,10000 Mbit/s
iSCSI support
Ja
Ondersteunde netwerkprotocollen
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP)
Dynamic DNS (DDNS)
Ja

Poorten & interfaces

USB-poort*
Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal Ethernet LAN (RJ-45)-poorten*
6

Design

Type behuizing*
Rack (2U)
Type koeling*
Actief
Kleur van het product
Zwart
Aantal ventilatoren
4 ventilator(en)

Design

Ventilator diameter
8 cm

Prestatie

Soort*
NAS
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja
Back-up-eigenschappen
Cloud, USB-stick
Geluidsniveau
57 dB

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
500 W
Aantal voedingen
1
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
482 mm
Diepte*
724 mm
Hoogte*
88 mm
Gewicht
14,9 kg

Technische details

Duurzaamheidscertificaten
RoHS

Processor speciale functies

Ingebouwde opties beschikbaar
Ja
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Enhanced Halt State
Ja
Versie Intel® Secure Key Technology
1,00
Intel® Trusted Execution Technology
Ja
Intel® TSX-NI
Ja
Versie Intel® TSX-NI
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® OS Guard
Ja
Intel® Secure Key
Ja
Intel® Turbo Boost Technology
2.0
Maximaal aantal PCI Express-lijnen
32
Thermal Monitoring Technologies
Ja
UART
Ja
Geheugentypen ondersteund door processor
DDR3-SDRAM, DDR4-SDRAM

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 35 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Temperatuur bij opslag
-20 - 60 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Overige specificaties

ARK ID processor
93356
