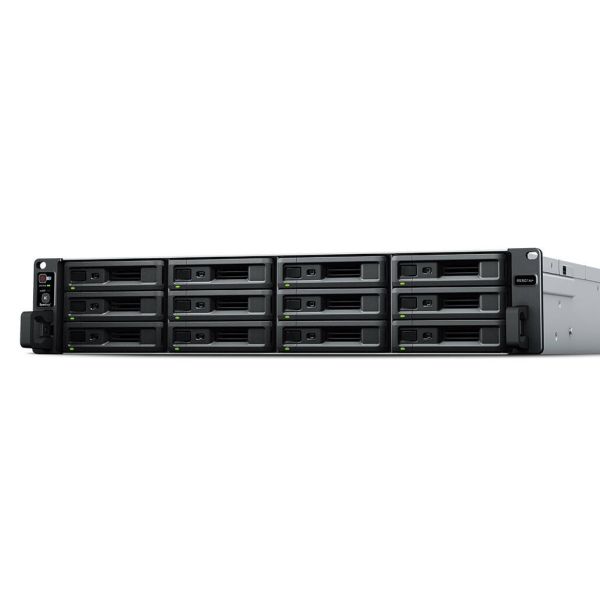

Synology RackStation RS3621XS+, Opslagserver, Rack (2U), Intel® Xeon®, D-1541, Zwart

Ruim op voorraad

Fabrikant Synology
MPN RS3621XS+
EAN 4711174724079

Synology RackStation RS3621XS+ data-opslag-server Opslagserver Rack (2U) Ethernet LAN Zwart D-1541

Accelerate your business operations
The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput1— a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.

Storage you can trust
The RS3621xs+ keeps your data protected while you concentrate on delivering the best results to your customers — even when disaster strikes.

Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system.

Maximize service availability
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.

Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.

Tailored to your business
The RS3621xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment2.

Double bandwidth
Upgrade network bandwidth in minutes by 2x or more with Synology’s range of 10GbE NICs.

SSD cache3
Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5” SAT5200 SSDs.

Storage expansion
Quickly and easily scale up to 36 drives with two RX1217(RP) expansion units.

Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication4, integrity checks, and incremental transfer technology reduce bandwidth and storage used.

Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.

Active Backup Suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.

Storage for virtualization
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.

Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslag schijf-interface*
SATA II, SATA III
Opslagschijf afmetingen ondersteund
2.5,3.5"
RAID support*
Ja
Soorten RAID
5, 6
Hot-swap drive bays
Ja
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
12
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon®
Processormodel*
D-1541
Frequentie van processor*
2,1 GHz
Maximale turbofrequentie van processor
2,7 GHz
Aantal processorkernen
8
CPU configuratie (max)
1
On-board graphics adapter model
Niet beschikbaar
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Ondersteund maximum RAM
64 GB
Geheugenslots
4
Intern geheugen*
8 GB
Geheugen form factor
UDIMM
ECC
Ja

Netwerk

Ethernet LAN*
Ja
Ondersteunde datasnelheid Ethernet LAN (max)
10000 Mbit/s
Wake-on-LAN
Ja

Poorten & interfaces

USB-poort*
Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal Ethernet LAN (RJ-45)-poorten*
6
PCI Express x8 (Gen 3.x) slots
2

Design

Type behuizing*
Rack (2U)
Type koeling*
Actief
Kleur van het product
Zwart
Aantal ventilatoren
4 ventilator(en)
Ventilator diameter
8 cm
Ingebouwd display
Nee
Ingebouwde luidsprekers
Nee

Prestatie

Soort*
Opslagserver
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja
Geluidsniveau
50,2 dB
Aan/uitschakelaar
Ja

Energie

Capaciteit voedingsunit (PSU)
500 W
Aantal voedingen
1
Redundante voeding
Ja
Stroomverbruik (typisch)
142,5 W
Elektriciteitsverbruik (HDD-stand-by)
72,76 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
482 mm
Diepte*
724 mm
Hoogte*
88 mm
Gewicht
14,5 kg

Inhoud van de verpakking

Aantal stroomkabel
2

Processor speciale functies

Ingebouwde opties beschikbaar
Nee
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Enhanced Halt State
Ja
Versie Intel® Secure Key Technology
1,00
Intel® Trusted Execution Technology
Ja
Intel® TSX-NI
Ja
Versie Intel® TSX-NI
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 35 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Temperatuur bij opslag
-20 - 60 °C

Certificaten

Certificering
FCC CE BSMI VCCI RCM EAC CCC KC UL

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100
