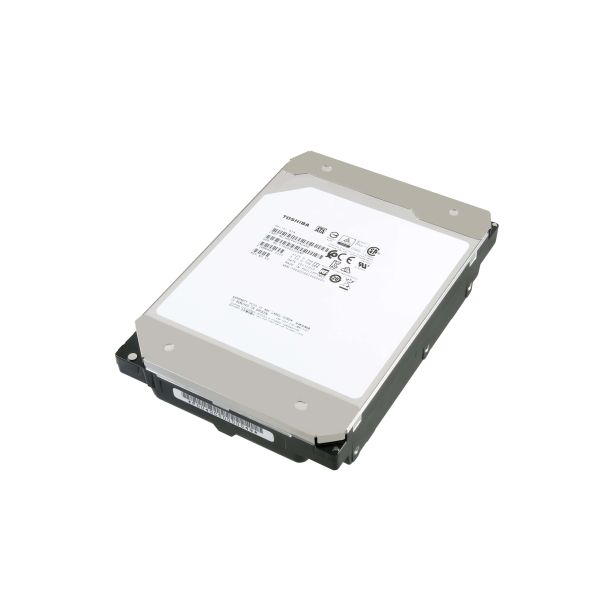

Toshiba MG07ACA14TE interne harde schijf 3.5" 14000 GB SATA
Using the world’s first 9-disk Helium-sealed design, the MG07ACA Enterprise Capacity SATA HDD provides up to 14TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside the 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO objectives for cloud-scale and software-defined data center infrastructure.
The massive 14TB and 12TB model capacity is delivered using proven CMR/PRM recording technologies providing optimum compatibility and data reliability. Equipped with SATA 6.0 Gbit/s interface, the MG07ACA models integrate easily into standard 3.5-inch SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.
The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside the 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO objectives for cloud-scale and software-defined data center infrastructure.
The massive 14TB and 12TB model capacity is delivered using proven CMR/PRM recording technologies providing optimum compatibility and data reliability. Equipped with SATA 6.0 Gbit/s interface, the MG07ACA models integrate easily into standard 3.5-inch SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.
- 14TB and 12TB capacity models
- Innovative 9-disk helium-sealed design for superior storage density
- Industry Standard 3.5-inch 26.1 mm Form Factor
- 7,200 rpm Performance
- SATA 6.0 Gbit/s Interface
- Low operational power profile, providing excellent power efficiency (W/TB) for better TCO
- 550 Total TB Transferred per Year Workload Rating
- 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
- Sanitize Instant Erase (SIE) option model available
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
HDD omvang*
3.5"
HDD capaciteit*
14000 GB
HDD rotatiesnelheid*
7200 RPM
Interface*
SATA
Soort*
HDD
Buffergrootte opslagstation
256 MB
Overdrachtsnelheid HDD-interface
6 Gbit/s
Permanente overdrachtsnelheid HDD
248 MiB/s
Werkbelasting-gegevenssnelheidslimiet
550 TB/jaar
Mean time between failures (MTBF)
2500000 uur
Energie
Stroomverbruik (typisch)
4,22 W
Stroomverbruik (lezen)
7,8 W
Operating voltage
5 / 12 V
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
5 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Eisen aan de omgeving
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Trillingen, in bedrijf
0,75 G
Trillingen bij opslag
3 G
Hoogte, in bedrijf
-305 - 3048 m
Hoogte bij opslag
-305 - 12192 m
Schokbestendigheid
70 G
Schokbestendigheid (buiten gebruik)
250 G
Gewicht en omvang
Breedte
101,8 mm
Hoogte
26,1 mm
Diepte
147 mm
Gewicht
720 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84717050
