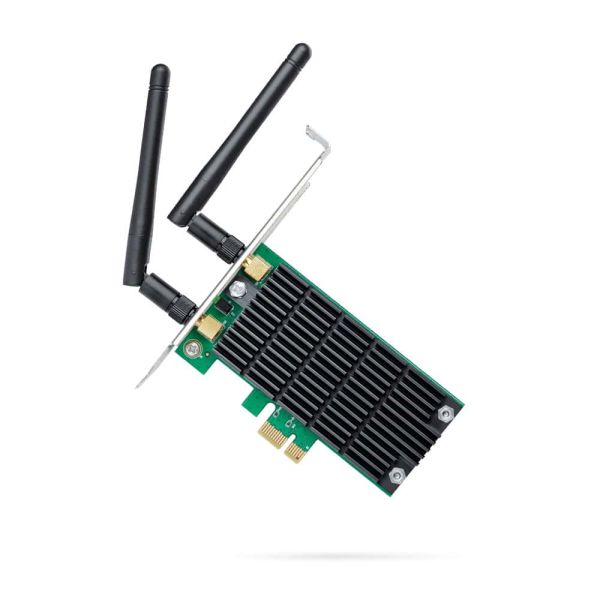

TP-Link Archer T4E Intern WLAN 867 Mbit/s

TP-Link Archer T4E, Intern, Draadloos, PCI Express, WLAN, 867 Mbit/s, Zwart, Groen

Ruim op voorraad

Fabrikant TP-Link
MPN ARCHER T4E
EAN 6935364089931
€ 54,00 excl. BTW

TP-Link Archer T4E Intern WLAN 867 Mbit/s

802.11ac - Dual Band Wi-Fi for Faster Connections
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

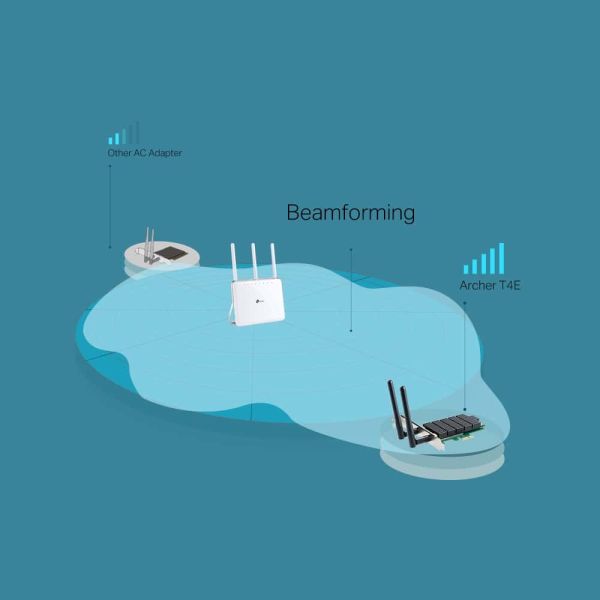

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.
  • Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
  • High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
  • 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
  • Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists

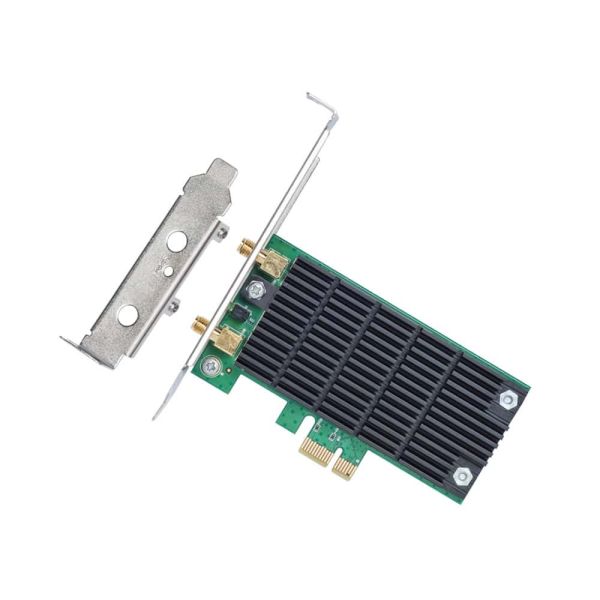

  • Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
  • 2×2 MIMO – Users can easily access a high-speed wireless connection
  • Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Draadloos
Hostinterface*
PCI Express
Interface*
WLAN
PCI versie
3.0

Netwerk

Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Netwerkstandaard*
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wifi
Ja
Wifi-band
Dual-band (2.4 GHz / 5 GHz)
Frequentiebereik
2,4 - 5 GHz
Wifi-standaard
Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ondersteunde WLAN data-overdrachtsnelheden
11,54,300,867 Mbit/s
Modulatie
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Ondersteunde beveiligingsalgoritmen
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK

Design

Component voor*
PC
Kleur van het product
Zwart, Groen
Intern*
Ja
Antenne
Ja
Antenne-ontwerp
Extern
LED-indicatoren
Status
Certificering
CE, FCC

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
115,2 mm
Diepte
120,8 mm
Hoogte
21,5 mm

Verpakking

Breedte verpakking
207 mm
Diepte verpakking
148 mm
Hoogte verpakking
42 mm

Overige specificaties

Afneembare antennes
Ja
Antennas quantity
2
Snelstartgids
Ja
Meegeleverde software
CD
