TP-Link CPE510, 300 Mbit/s, 300 Mbit/s, 10,100 Mbit/s, 300 Mbit/s, 5.15 - 5.85 GHz, 5 GHz

Ruim op voorraad

MPN CPE510
EAN 6935364070922

TP-Link CPE510 300 Mbit/s Wit Power over Ethernet (PoE)

What this product does
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.

Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).

Double Protection against ESD Attacks

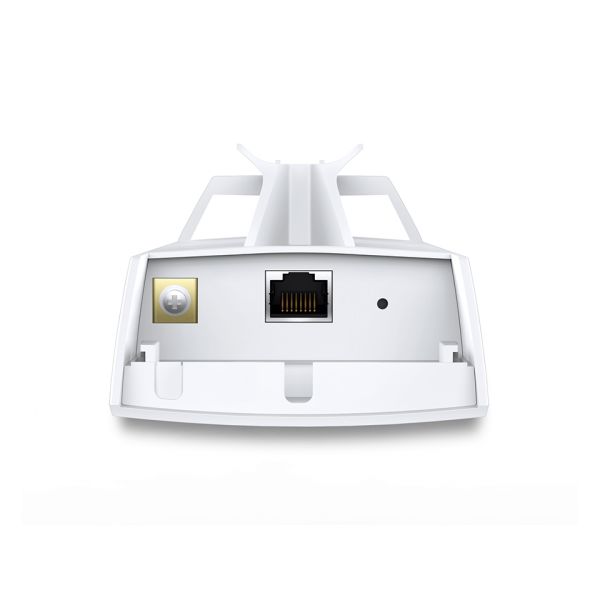

Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to apply more specific configurations
  • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 23dBm/200mw
  • System-level optimizations for more than 15km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Nee
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
300 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
300 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Gegevensdoorvoersnelheid
300 Mbit/s
Frequentieband
5.15 - 5.85 GHz
Bandbreedte
5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11n
Bekabelingstechnologie
10/100Base-T(X)
Automatische kanaalselectie
Ja
Automatisch scannen kanalen
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Maximum outdoorbereik
15000 m
Gevoeligheid ontvanger
802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC adres filtering
Ja
IP-adresfilter
Ja
IGMP snooping
Ja

Protocollen

Beheerprotocollen
TDMA

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja
Beheerplatform
Pharos Control

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1
WAN-poort
Ethernet (RJ-45)

Energie

Power over Ethernet (PoE)*
Ja
DC voltage bereik
16 - 27 V
Stroomverbruik (typisch)
13 W

Design

Plaatsing*
Paal, Muur
Kleur van het product*
Wit

Design

Materiaal behuizing
Kunststof
Internationale veiligheidscode (IP)
IP5X
Reset button
Ja
LED-indicatoren
Ja
Certificering
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS

Antenne

Soort antenne*
Intern
Type antennerichting
Omni-directioneel
Antennefuncties
Ingebouwde antenne
Antennas quantity
1
Antenne versterkingsniveau (max)
13 dBi

Prestatie

Type processor
Ja
Processormodel
Qualcomm Atheros
Frequentie van processor
560 MHz
Processor architectuur
MIPS 74Kc
Flash memory
8 MB
Intern geheugen
64 MB
Compatibele besturingssystemen
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Gewicht en omvang

Breedte
224,4 mm
Diepte
79 mm
Hoogte
60,3 mm

Verpakking

Breedte verpakking
270 mm
Diepte verpakking
132 mm
Hoogte verpakking
106 mm
Gewicht verpakking
720 g

Inhoud van de verpakking

Inclusief PoE-adapter
Ja
Meegeleverde kabels
AC
Montage gereedschap
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
-30 - 70 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent
