TP-Link CPE710, 867 Mbit/s, 10,100,1000 Mbit/s, 5.15 - 5.85 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, 80 MHz, 27 dBmW

Ruim op voorraad

Fabrikant TP-Link
MPN CPE710
EAN 6935364089702

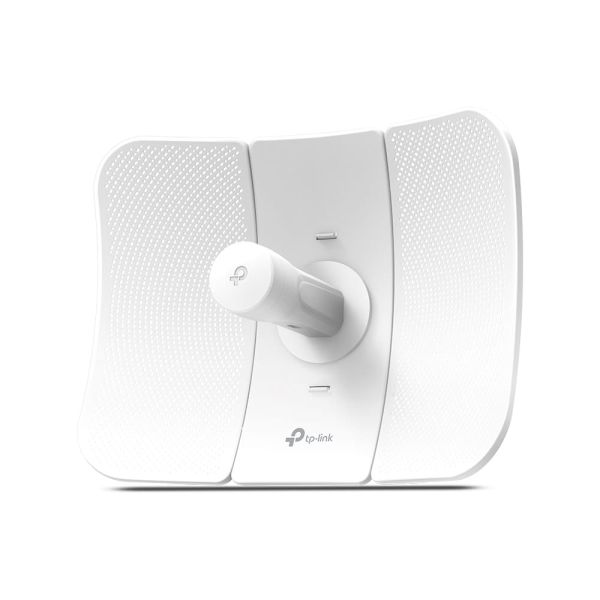

TP-Link CPE710 draadloos toegangspunt (WAP) 867 Mbit/s Wit Power over Ethernet (PoE)

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
  • 802.11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation

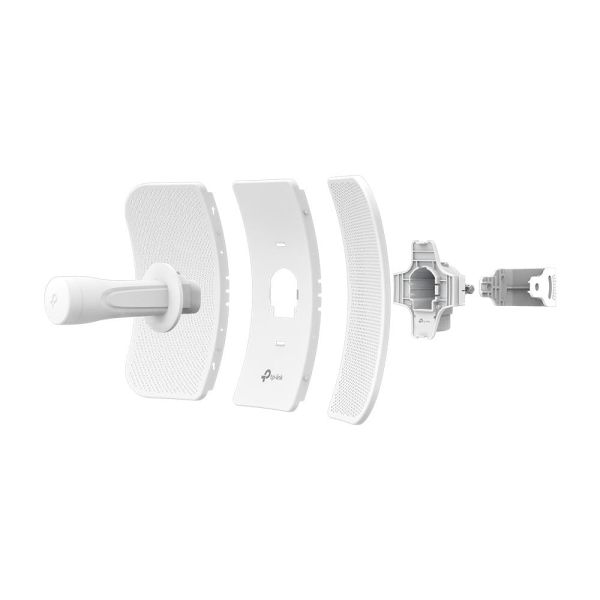

  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Nee
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
5.15 - 5.85 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Kanaalbandbreedte
80 MHz
Automatische kanaalselectie
Ja
MIMO
Ja
Draadloze isolatie
Ja
Dynamic Frequency Selection (DFS)
Ja
Zendvermogen
27 dBmW

Beveiliging

Ondersteunde beveiligingsalgoritmen*
HTTPS, SNMP, SSH, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
MAC adres filtering
Ja
Service Set Identifier (SSID) functies
Multiple SSIDs, SSID-broadcast, SSID-broadcast aan/uit
IGMP snooping
Ja
Auto Wireless Distribution System (WDS)
Ja

Protocollen

Universal Plug and Play ( UPnP )
Ja

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Spanning
24 V
Output current
0,6 A

Design

Plaatsing*
Paal

Design

Kleur van het product*
Wit
Materiaal behuizing
Kunststof
Internationale veiligheidscode (IP)
IP65
Reset button
Ja
LED-indicatoren
Stroom
Certificering
CE, FCC, RoHS, IC

Antenne

Antenne versterkingsniveau (max)
23 dBi

Prestatie

Type processor
Ja
Frequentie van processor
750 MHz
Flash memory
16 MB
Intern geheugen
128 MB
Compatibele besturingssystemen
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux

Gewicht en omvang

Breedte
366 mm
Diepte
280 mm
Hoogte
207 mm

Verpakking

Type verpakking
Doos

Inhoud van de verpakking

Inclusief PoE-adapter
Ja
Meegeleverde kabels
AC
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
