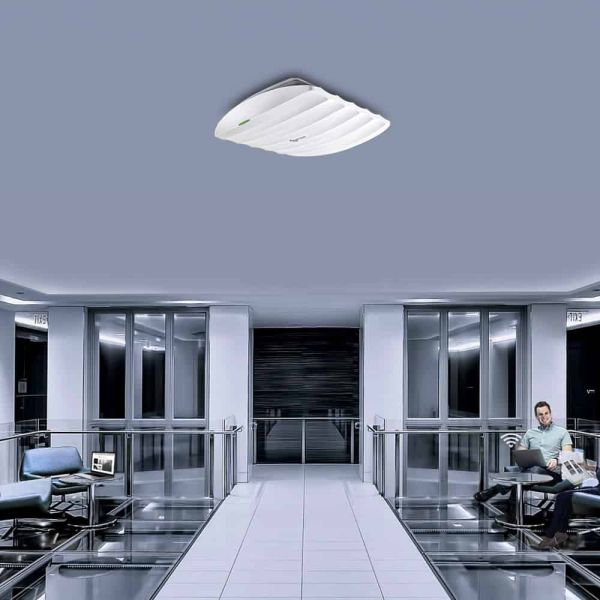

TP-Link EAP223 V1 867 Mbit/s Wit Power over Ethernet (PoE)

TP-Link EAP223 V1, 867 Mbit/s, 450 Mbit/s, 867 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Multi User MIMO, 20, 23 dBm

20+ op voorraad (levering verwacht binnen 3 dagen)Dit item is op voorraad in een centraal Europees magazijn. De levertijd is ~3 werkdagen.

Fabrikant TP-Link
MPN EAP223
EAN 4895252500509
€ 178,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Secure Guest Network with Facebook Wi-Fi and SMS Authentication
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
  • PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
450 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatische kanaalselectie
Ja
Automatisch scannen kanalen
Ja
MIMO
Ja
MIMO-type
Multi User MIMO
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Rate limiting
Ja
Draadloze isolatie
Ja
Bandbreedteaansturing
Ja
Quality of Service (QoS)
Ja
Zendvermogen (CE)
20, 23 dBm
Zendvermogen (FCC)
24, 22 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
SSID
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
15

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja
Beheerplatform
Omada

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja

Energie

Type Power over Ethernet (PoE) ondersteunt
Active PoE, Passive PoE
Spanning
48 V
Stroomverbruik (typisch)
9,7 W

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
Reset button
Ja
LED-indicatoren
Stroom
Certificering
CE, FCC, RoHS

Antenne

Soort antenne*
Intern
Type antennerichting
Omni-directioneel
Antennas quantity
3

Prestatie

Compatibele besturingssystemen
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Gewicht en omvang

Breedte
205,5 mm
Diepte
181,5 mm
Hoogte
37,1 mm

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Meegeleverde kabels
AC
Montage gereedschap
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent
