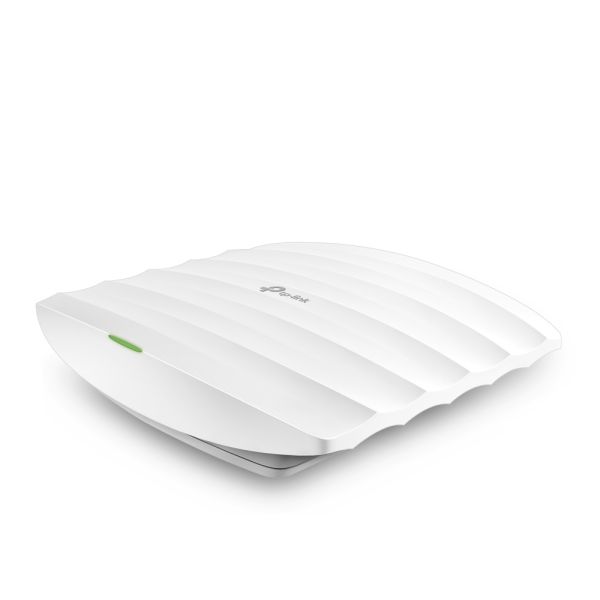

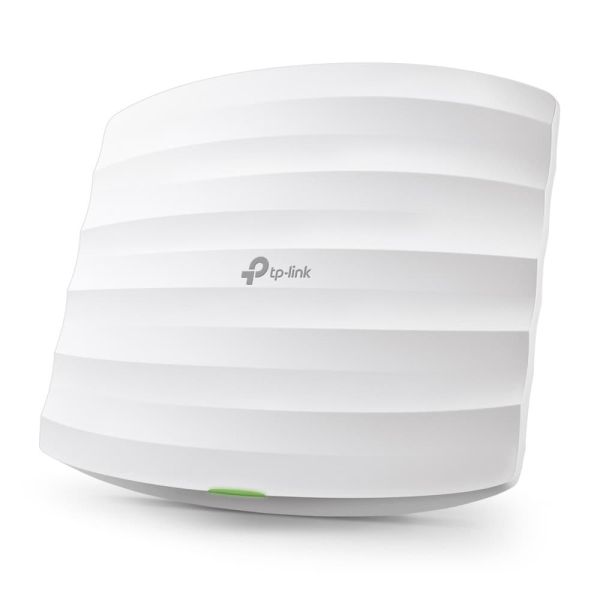

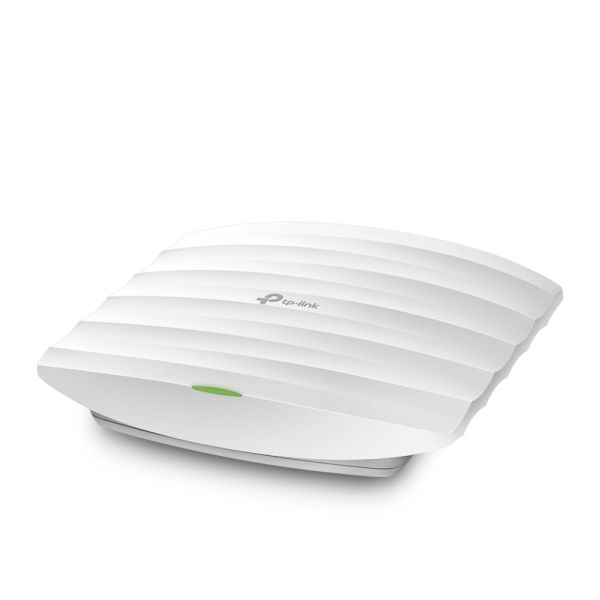

TP-Link Omada EAP225 draadloos toegangspunt (WAP) 1350 Mbit/s Wit Power over Ethernet (PoE)
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
- Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds
- EAP Controller Software lets administrators easily manage hundreds of EAPs
- Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- Supports management VLAN for an enhanced network management
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Kenmerken
2,4 GHz*
Ja
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
1350 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
450 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Bekabelingstechnologie
10/100/1000Base-T(X)
MIMO
Ja
MIMO-type
Multi User MIMO
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
VLAN mapping
Rate limiting
Ja
Bandbreedteaansturing
Ja
Airtime Fairness (ATF)
Ja
Quality of Service (QoS)
Ja
BeamForming
Ja
Zendvermogen (CE)
23 dBm
Zendvermogen (FCC)
24 dBm
Beveiliging
Ondersteunde beveiligingsalgoritmen*
64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC adres filtering
Ja
Service Set Identifier (SSID) functies
Multiple SSIDs
Aantal SSID-ondersteuningen
16
Access Control List (ACL)
Ja
Beheerfuncties
Web-gebaseerd management
Ja
Syslog
Ja
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja
Energie
Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
Passive PoE
Spanning
12 V
Output current
1,5 A
Stroomverbruik (typisch)
10,15 W
Design
Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
Bevestigingsmogelijkheid voor kabelslot
Ja
Design
Kabelslot sleuf type
Kensington
Aan/uitschakelaar
Ja
Reset button
Ja
LED-indicatoren
Stroom, WLAN
Antenne
Soort antenne*
Intern
Type antennerichting
Omni-directioneel
Antennefuncties
Ingebouwde antenne
Antennas quantity
5
Antenne versterkingsniveau (max)
5 dBi
Prestatie
Compatibele besturingssystemen
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Certificaten
Certificaten van naleving
CE, Federal Communications Commission (FCC), RoHS
Mobiel netwerken
SIM-kaartsleuf
Nee
Gewicht en omvang
Breedte
205,5 mm
Diepte
181,5 mm
Hoogte
37,1 mm
Verpakking
Breedte verpakking
228 mm
Diepte verpakking
340 mm
Hoogte verpakking
65 mm
Gewicht verpakking
910 g
Type verpakking
Doos

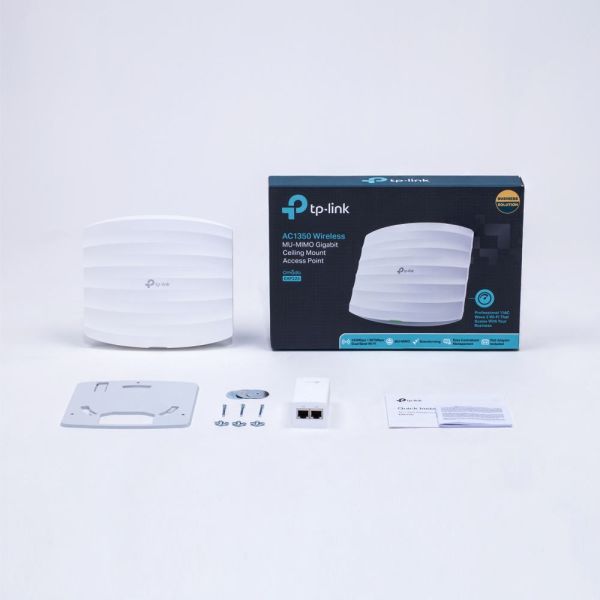

Inhoud van de verpakking
Aantal per verpakking
1 stuk(s)
Inclusief AC-adapter
Ja
Inclusief PoE-adapter
Ja
Montage gereedschap
Ja
Snelstartgids
Ja
Eisen aan de omgeving
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent
Duurzaamheid
Naleving van duurzaamheid
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
