TP-Link EAP225-Outdoor, 1200 Mbit/s, 300 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab,...

Ruim op voorraad

Fabrikant TP-Link
MPN EAP225-OUTDOOR
EAN 6935364083571

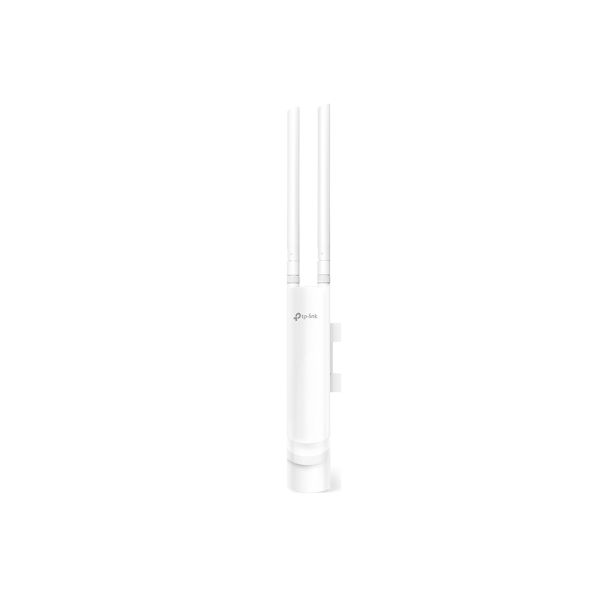

TP-Link EAP225-Outdoor 1200 Mbit/s Wit Power over Ethernet (PoE)

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management

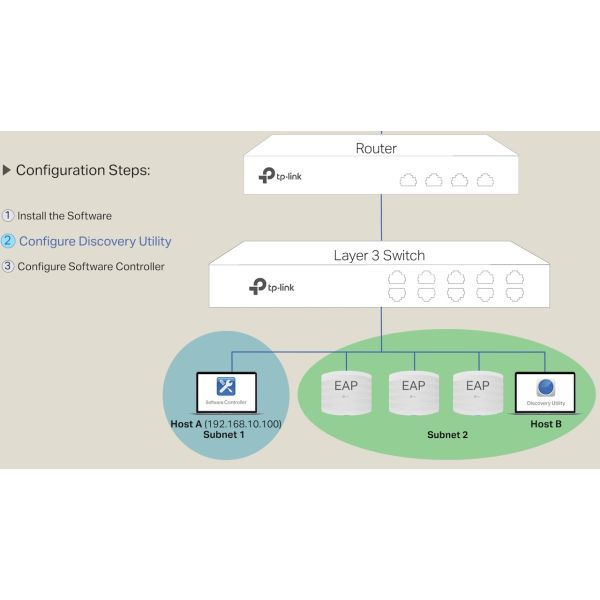

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1200 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
300 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO
Ja
MIMO-type
Multi User MIMO
Rate limiting
Ja
Airtime Fairness (ATF)
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen*
802.1x RADIUS
Aantal SSID-ondersteuningen
16

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
Spanning
24 V
Stroomverbruik (typisch)
10,5 W

Design

Plaatsing*
Plafond, Muur

Design

Kleur van het product*
Wit
Reset button
Ja

Antenne

Soort antenne*
Extern
Type antennerichting
Omni-directioneel
Antennefuncties
Afneembare antenne
Antennas quantity
2
Antenne versterkingsniveau (max)
4 dBi

Gewicht en omvang

Breedte
215 mm
Diepte
46 mm
Hoogte
27 mm

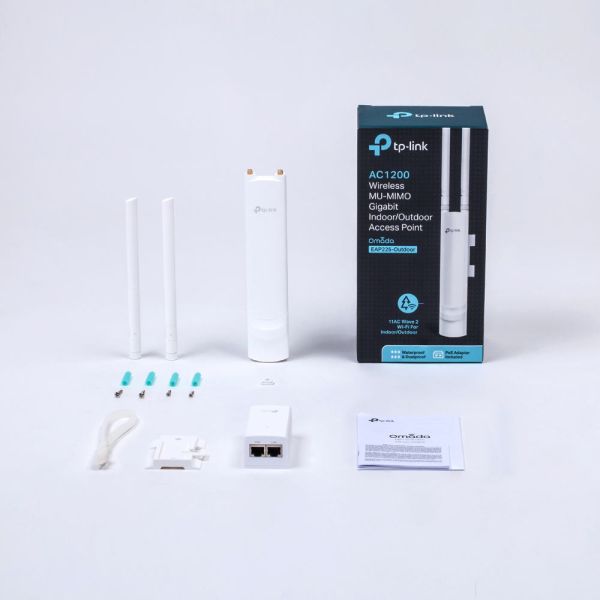

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief AC-adapter
Ja
Montage gereedschap
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
-30 - 70 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
