TP-Link EAP235-Wall 867 Mbit/s Wit Power over Ethernet (PoE)

TP-Link EAP235-Wall, 867 Mbit/s, 300 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af,...

Ruim op voorraad (levering verwacht binnen 3 dagen)

Fabrikant TP-Link
MPN EAP235-WALL
EAN 6935364088972
€ 60,00 excl. BTW

TP-Link EAP235-Wall 867 Mbit/s Wit Power over Ethernet (PoE)

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

Absolute Thinnest, Inconspicuous Design

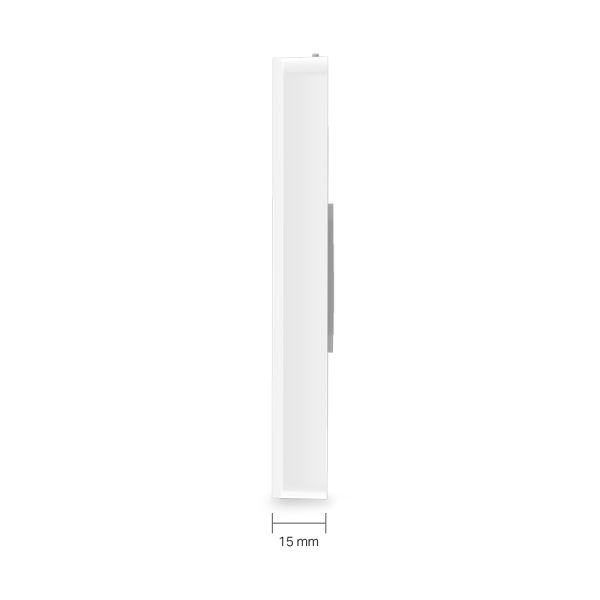

The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
  • Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
  • Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
  • Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
  • High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
  • Cloud management and Omada app supported for ultra-convenience and easy management
  • Enterprise class Wi-Fi security helps to decrease network security threats
  • Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
300 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Bekabelingstechnologie
10/100/1000Base-T(X)
Automatische kanaalselectie
Ja
Automatisch scannen kanalen
Ja
MIMO
Ja
MIMO-type
Multi User MIMO
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Rate limiting
Ja
Draadloze isolatie
Ja
Quality of Service (QoS)
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen*
64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
16
Remote Authentication Dial-In User Service (RADIUS)
Ja
Access Control List (ACL)
Ja

Protocollen

Universal Plug and Play ( UPnP )
Ja

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
4

Poorten & interfaces

WAN-poort
Ethernet (RJ-45)

Energie

Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
Active PoE, Passive PoE
Stroomverbruik (typisch)
24,4 W

Design

Plaatsing*
Muur
Kleur van het product*
Wit
Reset button
Ja
LED-indicatoren
LAN, Stroom, Status, WAN, WLAN

Antenne

Soort antenne*
Intern
Antennas quantity
2
Antenne versterkingsniveau (max)
4 dBi

Gewicht en omvang

Breedte
143 mm
Diepte
86 mm
Hoogte
20 mm

Verpakking

Type verpakking
Doos

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Montage gereedschap
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
