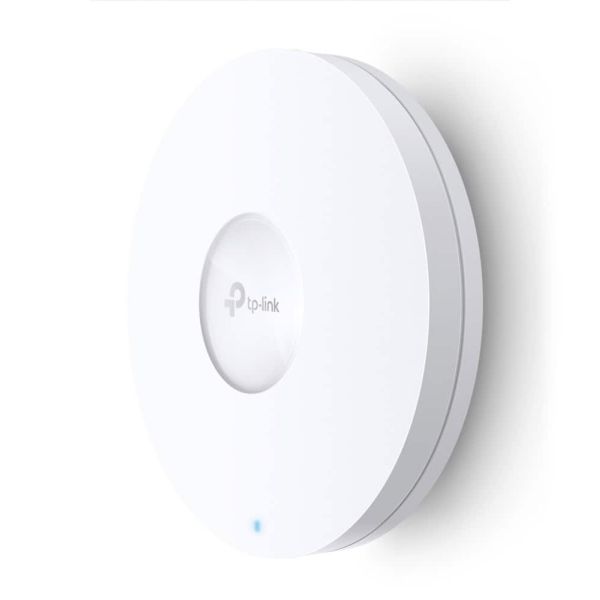

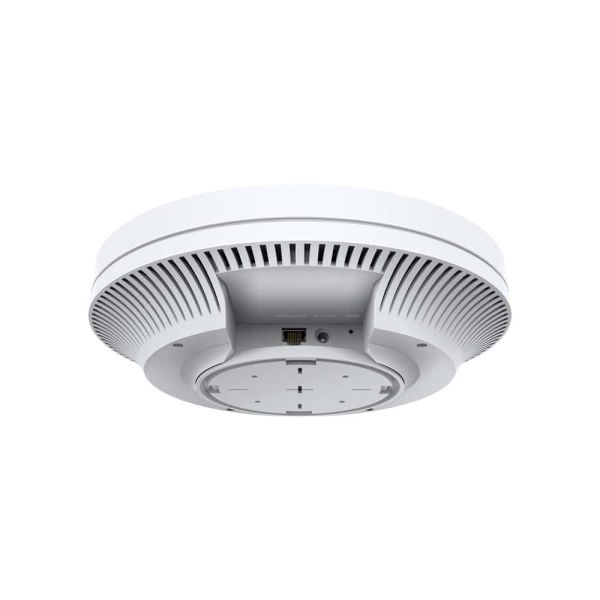

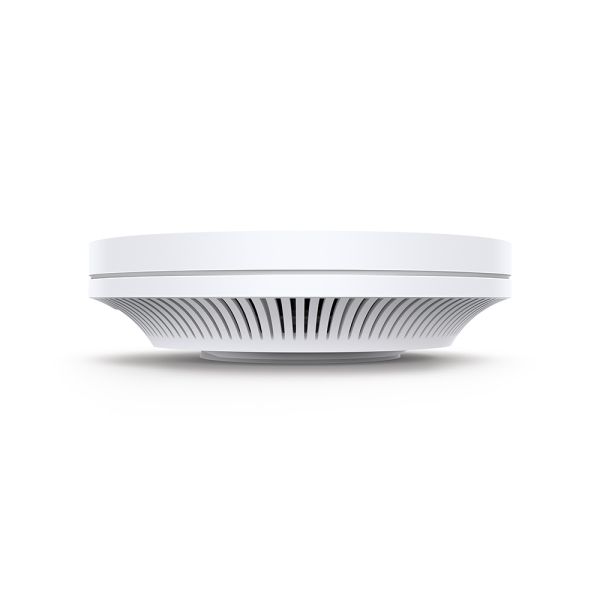

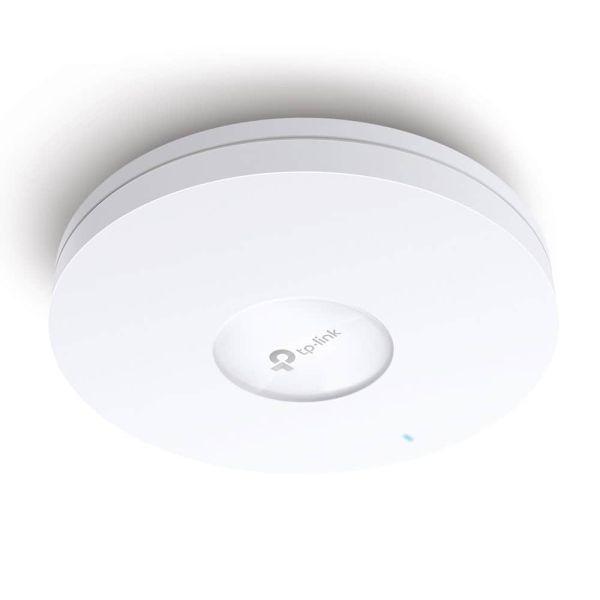

TP-Link EAP620 HD draadloos toegangspunt (WAP) 1201 Mbit/s Wit Power over Ethernet (PoE)

TP-Link EAP620 HD, 1201 Mbit/s, 574 Mbit/s, 1201 Mbit/s, 1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at

Niet op voorraad

MPN EAP620 HD SLIM
EAN 4897098687765
€ 117,00 excl. BTW

TP-Link EAP620 HD draadloos toegangspunt (WAP) 1201 Mbit/s Wit Power over Ethernet (PoE)

High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
  • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
6 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
1201 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
574 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
1201 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Frequentieband
2.4 - 5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Automatische kanaalselectie
Ja
Automatisch scannen kanalen
Ja
MIMO
Ja
MIMO-type
Multi User MIMO
Modulatie
1024-QAM, OFDM
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
VLAN mapping
Rate limiting
Ja
Draadloze isolatie
Ja
Bandbreedteaansturing
Ja
Airtime Fairness (ATF)
Ja
Quality of Service (QoS)
Ja
Zendvermogen (CE)
20/23 dBm
Zendvermogen (FCC)
23 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC adres filtering
Ja
Service Set Identifier (SSID) functies
Multiple SSIDs
Aantal SSID-ondersteuningen
16
Remote Authentication Dial-In User Service (RADIUS)
Ja

Beheerfuncties

Web-gebaseerd management
Ja
Syslog
Ja
Upgraden van firmware mogelijk
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja

Energie

Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
Active PoE, Passive PoE
Spanning
12 V
Output current
1,5 A
Stroomverbruik (typisch)
12 W

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
Reset button
Ja
Certificering
CE, FCC, RoHS

Antenne

Soort antenne*
Intern
Type antennerichting
Omni-directioneel
Antenne versterkingsniveau (max)
6 dBi

Prestatie

Compatibele besturingssystemen
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Gewicht en omvang

Breedte
160 mm
Diepte
160 mm
Hoogte
33 mm

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief AC-adapter
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
