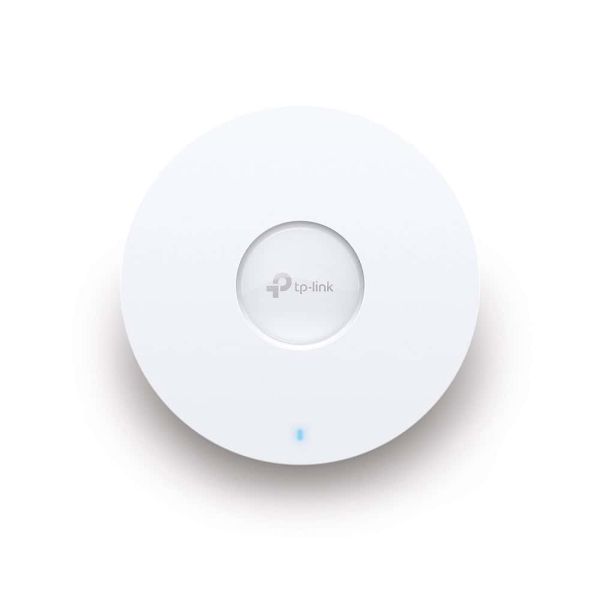

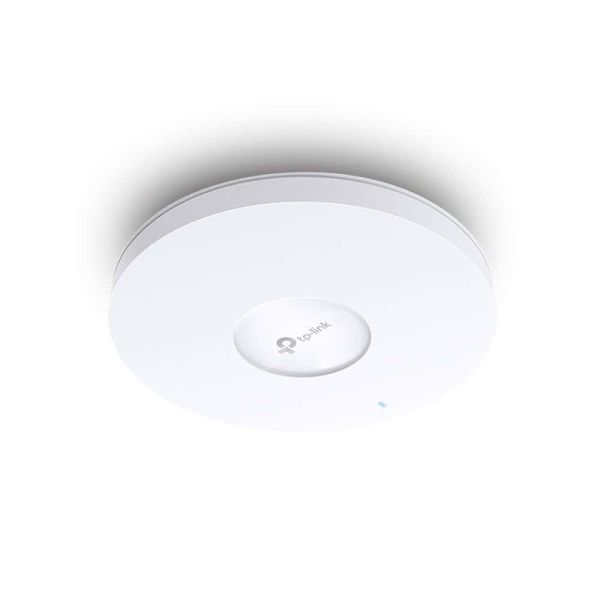

TP-Link EAP650 draadloos toegangspunt (WAP) 2976 Mbit/s Wit Power over Ethernet (PoE)

TP-Link EAP650, 2976 Mbit/s, 574 Mbit/s, 2402 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x,...

Ruim op voorraad (levering verwacht binnen 3 dagen)

Fabrikant TP-Link
MPN EAP650
EAN 4897098683545
€ 147,00 excl. BTW

TP-Link EAP650 draadloos toegangspunt (WAP) 2976 Mbit/s Wit Power over Ethernet (PoE)

The New Slimline Business WiFi 6
AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment

Seamless Roaming
Uninterrupted streaming when moving between APs

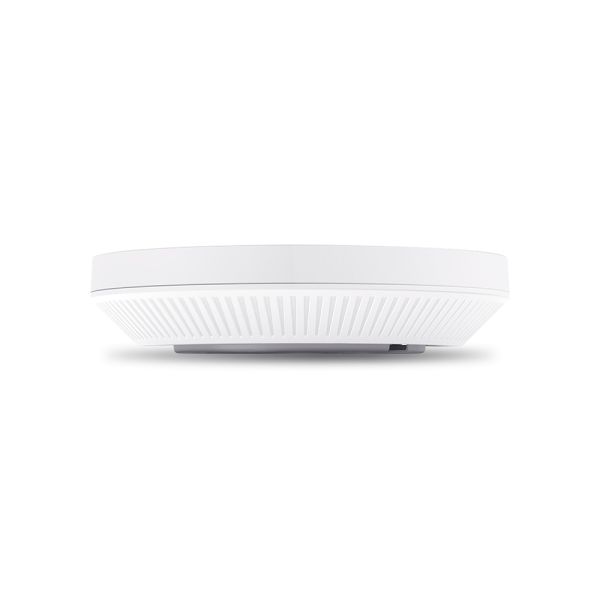

Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

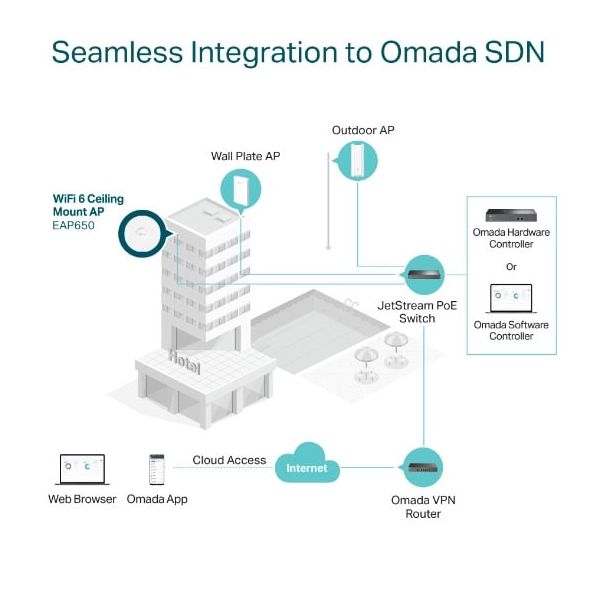

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

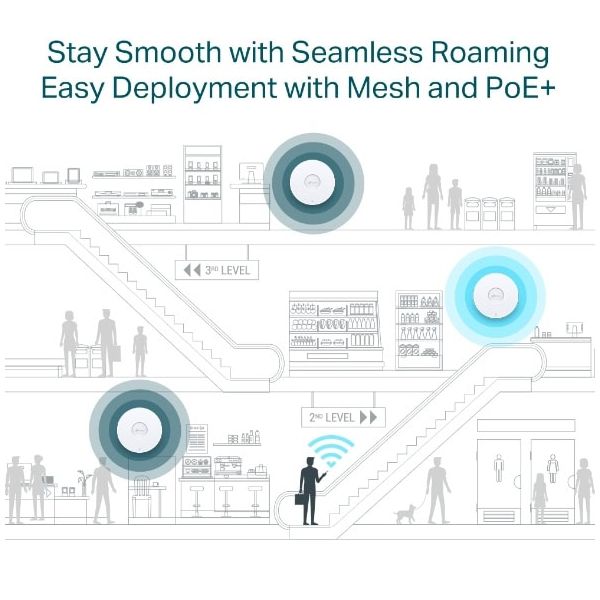

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

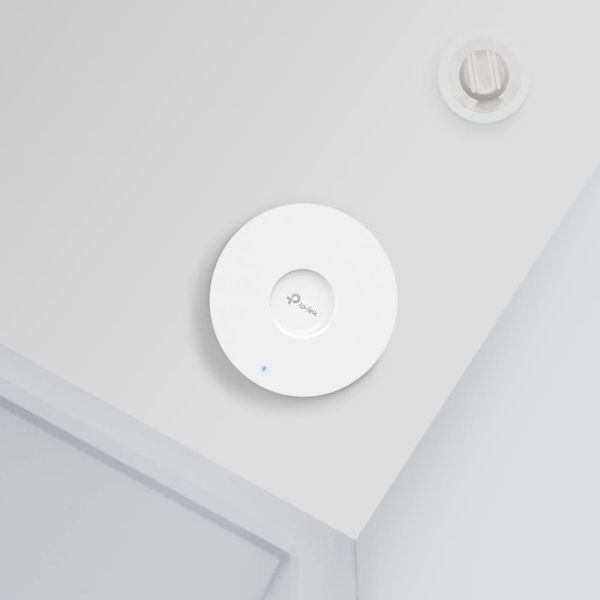

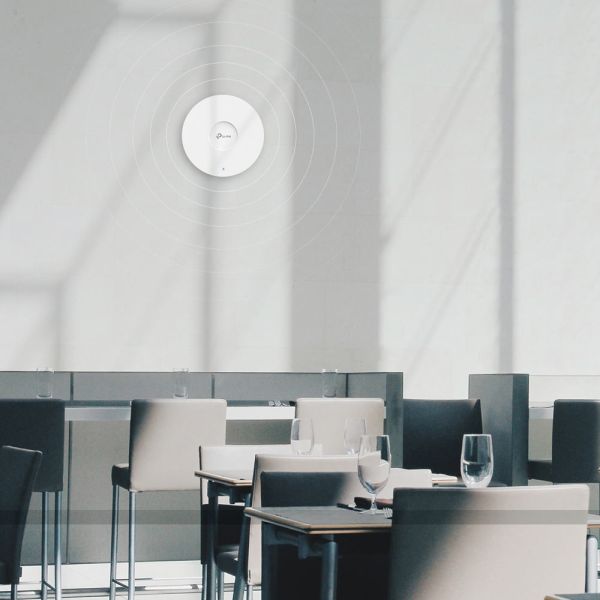

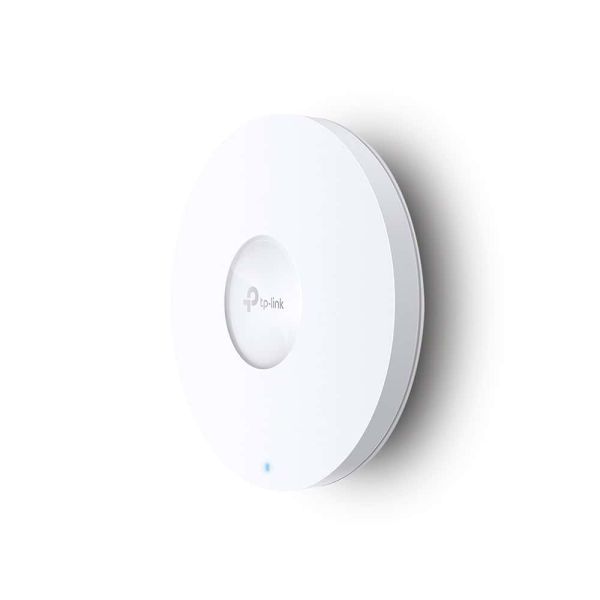

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
2976 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
574 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
2402 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
MIMO
Ja
MIMO-type
Multi User MIMO
Spread spectrum methode
OFDMA
Modulatie
1024-QAM, OFDM
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Rate limiting
Ja
Draadloze isolatie
Ja
Quality of Service (QoS)
Ja
Zendvermogen (CE)
<20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)
Zendvermogen (FCC)
<25 dBm (2.4 GHz) <25 dBm (5 GHz)

Beveiliging

Ondersteunde beveiligingsalgoritmen*
SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC adres filtering
Ja
Service Set Identifier (SSID) functies
Multiple SSIDs
Aantal SSID-ondersteuningen
16
Access Control List (ACL)
Ja

Beheerfuncties

Web-gebaseerd management
Ja

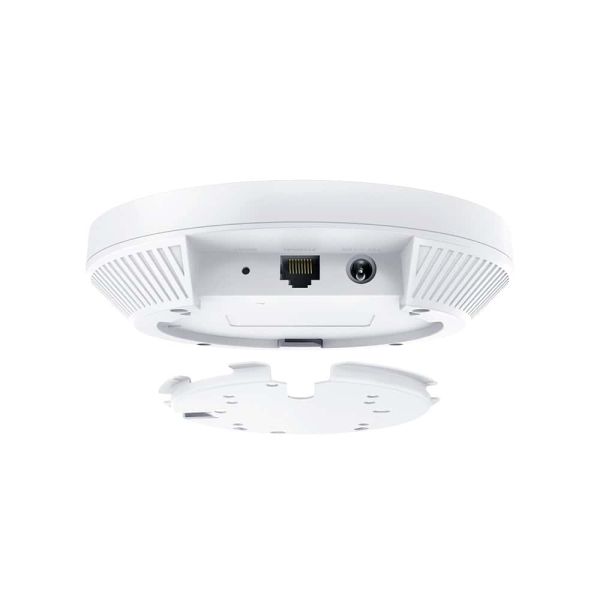

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
Spanning
12 V
Output current
1 A

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
LED-indicatoren
Ja
Certificering
CE, FCC, RoHS

Antenne

Soort antenne*
Intern
Type antennerichting
Omni-directioneel
Antenne versterkingsniveau (max)
5 dBi

Gewicht en omvang

Breedte
160 mm
Diepte
160 mm
Hoogte
33,6 mm

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief AC-adapter
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
