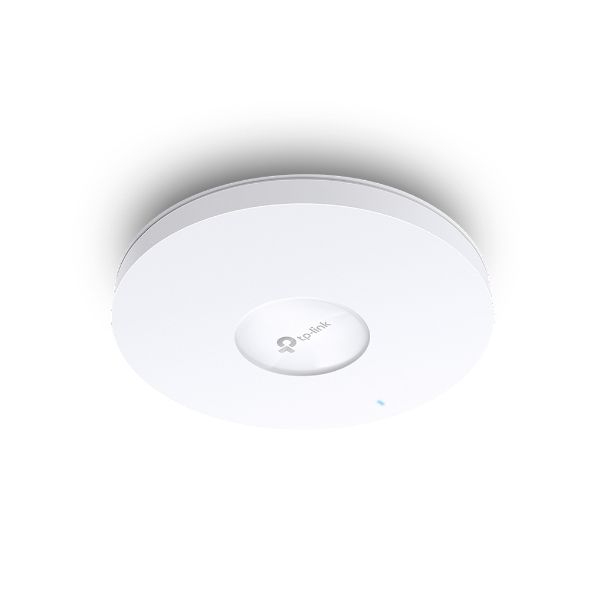

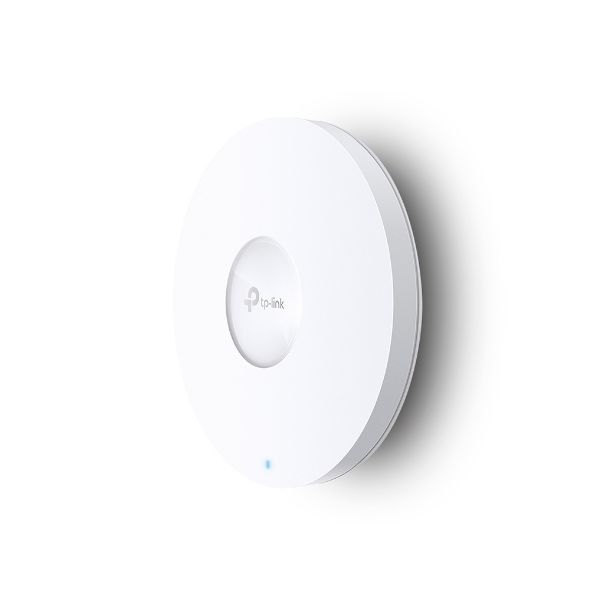

TP-Link EAP653 draadloos toegangspunt (WAP) 2976 Mbit/s Wit Power over Ethernet (PoE)

TP-Link EAP653, 2976 Mbit/s, 574 Mbit/s, 2402 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, 160 MHz

Ruim op voorraad

MPN EAP653
EAN 4897098685235
€ 137,00 excl. BTW

TP-Link EAP653 draadloos toegangspunt (WAP) 2976 Mbit/s Wit Power over Ethernet (PoE)

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

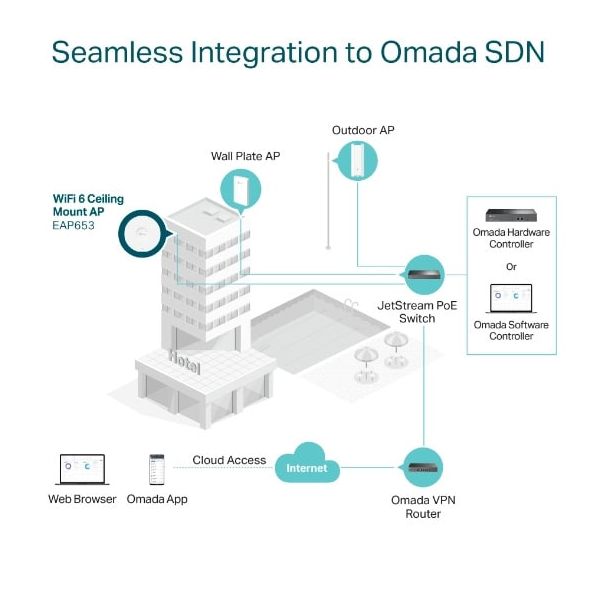

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility

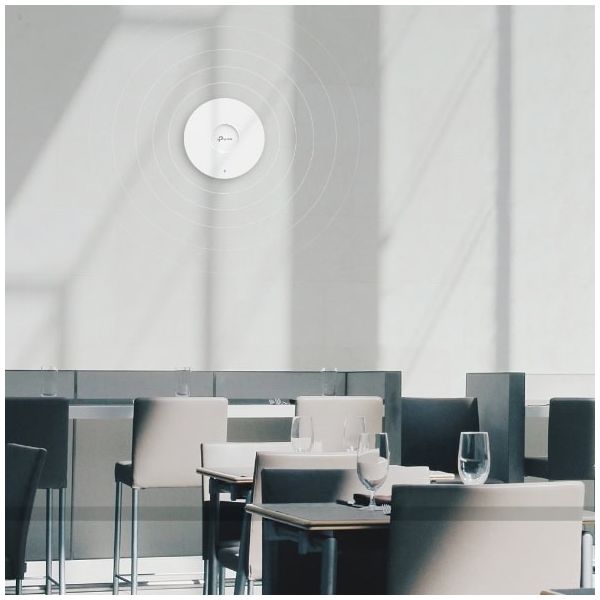

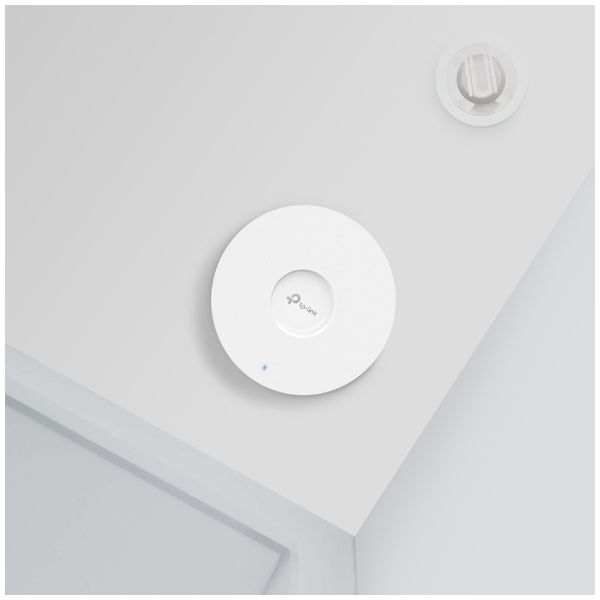

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations

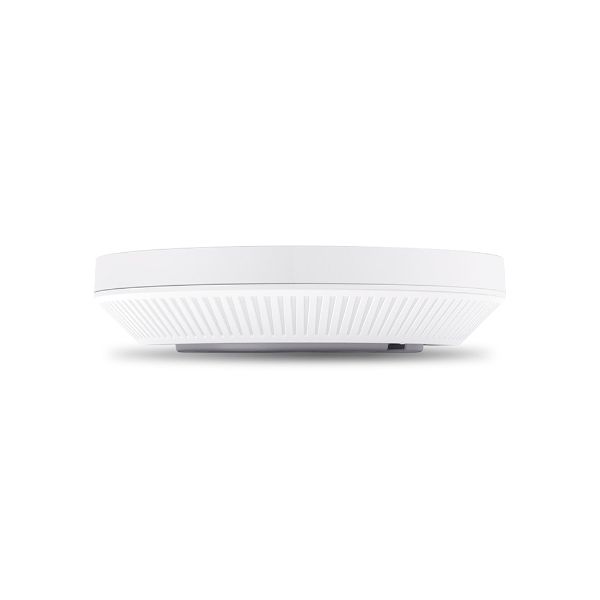

  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
2976 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
574 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
2402 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Kanaalbandbreedte
160 MHz
MIMO
Ja
MIMO-type
Multi User MIMO
Spread spectrum methode
OFDMA
Fit AP-modusfuncties
Vermaasd netwerk
VLAN=ondersteuning
Ja
Virtuele LAN-functies
VLAN mapping
Bandbreedteaansturing
Ja
Quality of Service (QoS)
Ja
Zendvermogen (CE)
27 dBm
Zendvermogen (FCC)
22 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3
MAC adres filtering
Ja

Beheerfuncties

Web-gebaseerd management
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
Reset button
Ja
LED-indicatoren
Ja

Antenne

Soort antenne*
Intern
Antennas quantity
4
Antenne versterkingsniveau (max)
5 dBi

Prestatie

Compatibele besturingssystemen
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Gewicht en omvang

Breedte
160 mm
Diepte
160 mm
Hoogte
33,6 mm

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 90 procent

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
