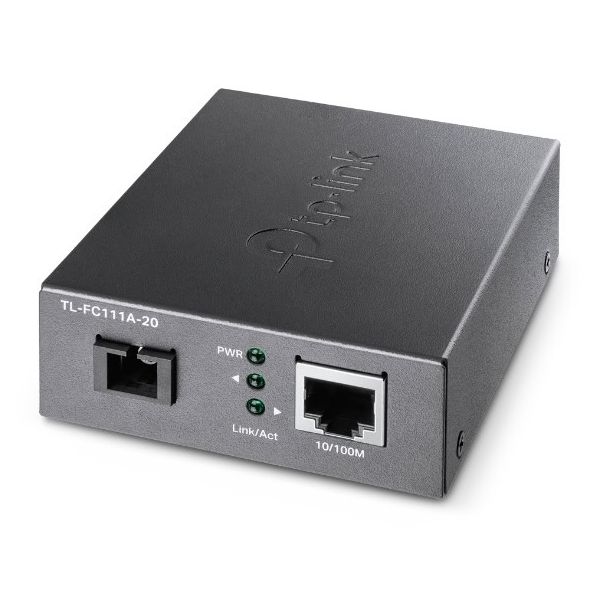

TP-Link TL-FC111A-20 netwerk media converter 100 Mbit/s Single-mode Zwart
TP-Link TL-FC111A-20, 100 Mbit/s, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, 10,100 Mbit/s, 10BASE-T, 100BASE-T, 100BASE-FX, Volledig, Half
Ruim op voorraad
Fabrikant
TP-Link
MPN
FC111A-20
EAN
6935364010980
€ 31,00
excl. BTW
(€ 37,51 incl. BTW)
TP-Link TL-FC111A-20 netwerk media converter 100 Mbit/s Single-mode Zwart
What This Product Does

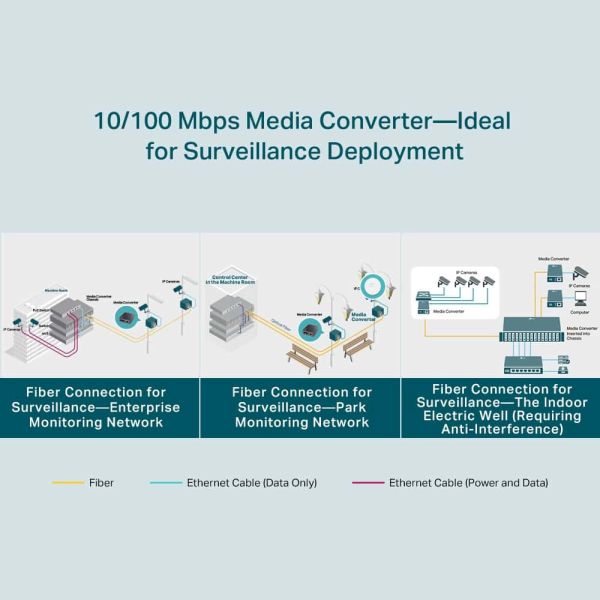

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

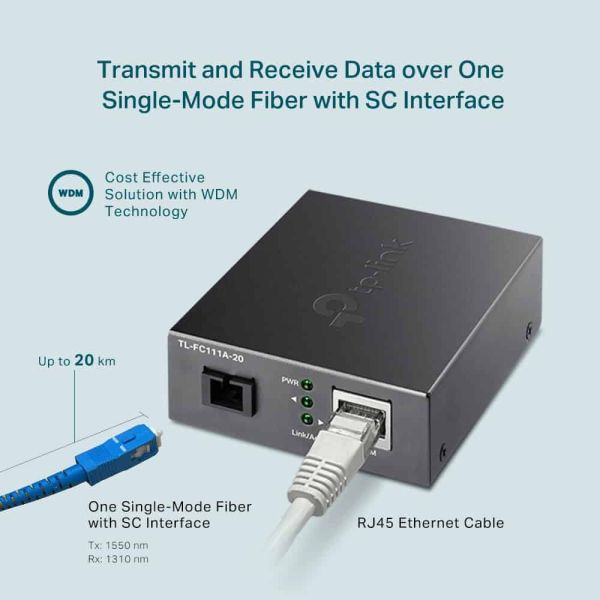

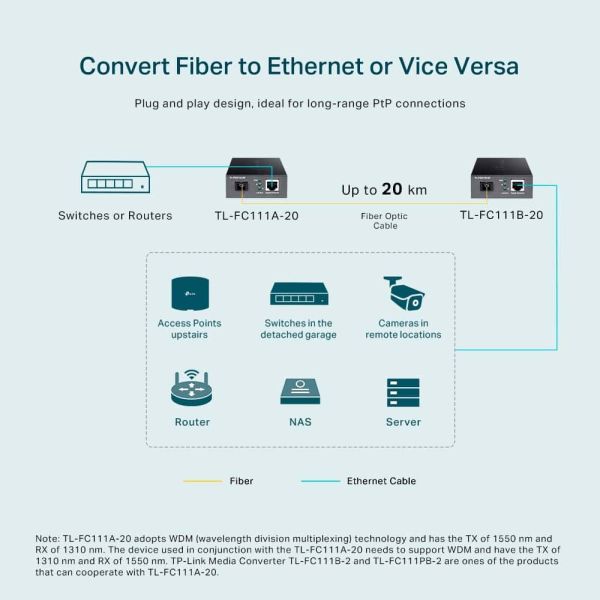

TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

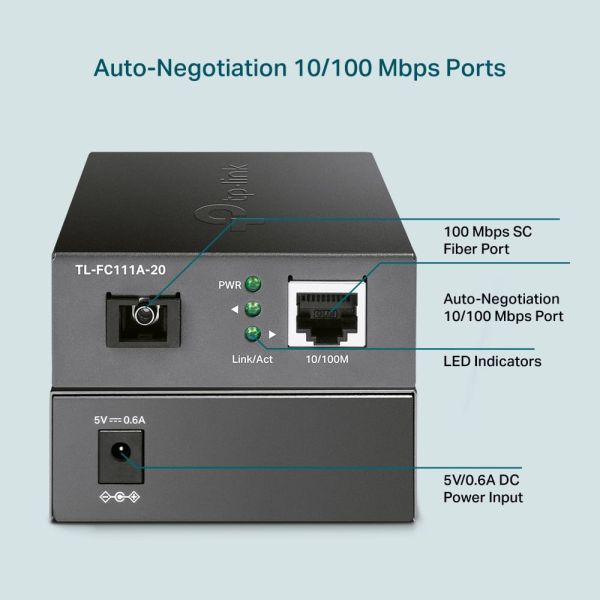

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Netwerk
Maximale overdrachtssnelheid van gegevens*
100 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-T
Fiber ethernet cabling technologie
100BASE-FX
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
Duplex systeem
Volledig, Half
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Poorten & interfaces
Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SC
Prestatie
Maximaal bereik*
20000 m
Draad modus structuur
Single-mode
Vezelkabel diameters ondersteund
9/125 µm
Design
Intern*
Nee
LED-indicatoren
Activiteit, Link, Stroom
Kleur van het product
Zwart
Design
Certificering
FCC, CE
Energie
Spanning
5 V
Output current
0,6 A
Gewicht en omvang

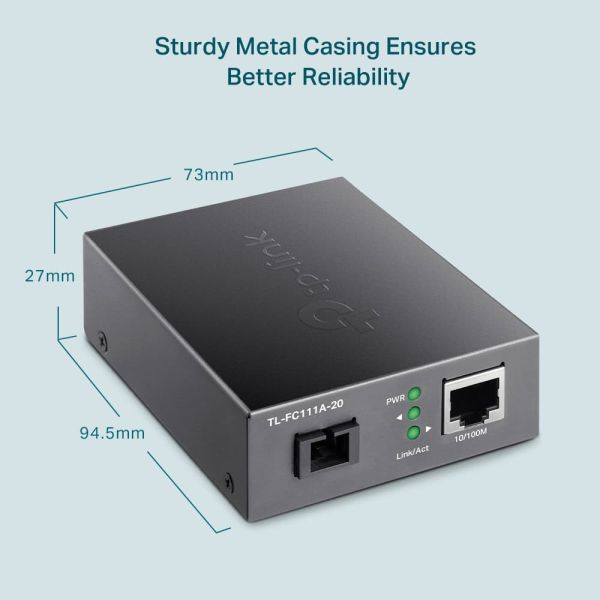

Breedte
94,5 mm
Diepte
73 mm
Hoogte
27 mm
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Verpakking
Breedte verpakking
165 mm
Diepte verpakking
204 mm
Hoogte verpakking
65 mm
Gewicht verpakking
360 g
Technische details
Duurzaamheidscertificaten
RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
