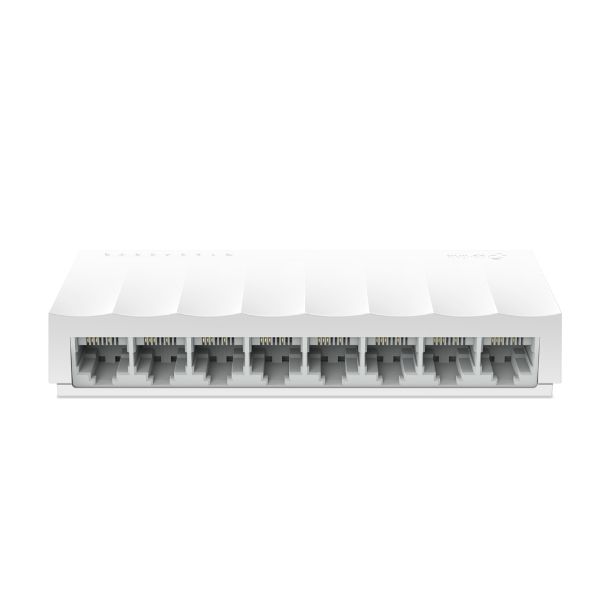

TP-Link LS1008 Unmanaged Fast Ethernet (10/100) Wit
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1008 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1008 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing and desktop design
- Plug and play, no configuration needed
- Fanless design ensures quiet operation
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Netstekker
DC-in ingang
Netwerk
Netwerkstandaard*
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
Data-uitwisseling
Switchingcapaciteit*
1,6 Gbit/s
Verzending snelheid
1,2 Mpps
MAC-adrestabel*
2000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
2000
Packet buffergeheugen
0,75 MB
Design
Kleur van het product
Wit
Materiaal behuizing
Kunststof
LED-indicatoren
Activiteit, Link, Stroom
Ophangsysteem voor aan de muur
Nee
Certificering
CE, FCC, RoHS
Energie
Stroombron*
DC
Energie
Vermogenstoevoer inclusief*
Ja
Stroom
0.6 A
Ingangsspanning
5 V
Vermogensverbruik (max)
2,64 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
9,002 BTU/h
Gewicht en omvang
Breedte
124,6 mm
Diepte
48,7 mm
Hoogte
22,8 mm
Verpakking
Snelstartgids
Ja
Type verpakking
Doos
Breedte verpakking
129 mm
Diepte verpakking
82 mm
Hoogte verpakking
84 mm
Gewicht verpakking
170 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
