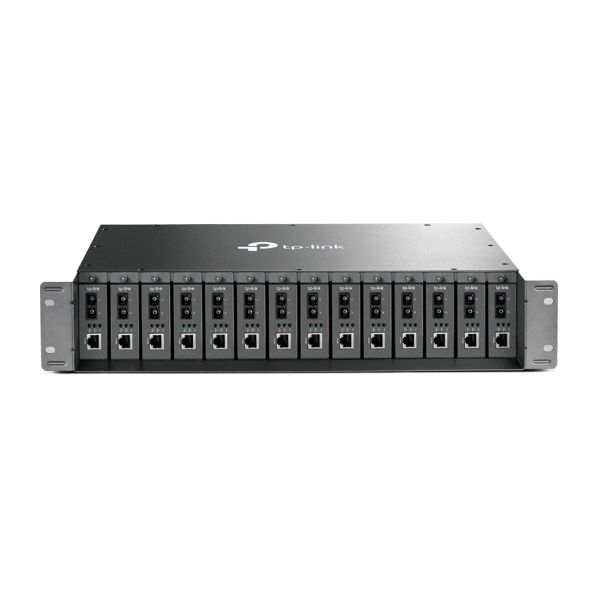

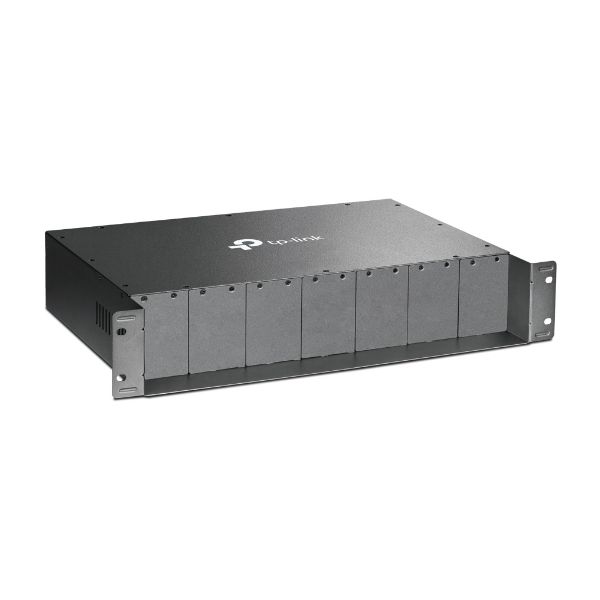

TP-Link TL-MC1400 V3 netwerkchassis 2U

TP-Link TL-MC1400 V3, 100-240V, 50 - 60 Hz, 9.5 V, 0 - 40 °C, -40 - 70 °C, 10 - 90 procent

Nog 17 beschikbaar

MPN MC1400
EAN 6935364030384
€ 165,00 excl. BTW

TP-Link TL-MC1400 V3 netwerkchassis 2U

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINKs Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.

Features
- 14 bays to house up to 14 media converters;
- Standard 19-inch rack-mountable with, 2U height;
- - Optional redundant power supply to ensure non-stop reliable operation;
- Provides hot-swapping of media converters and redundant power supplies;
- - Two cooling fans (internal) mounted at the rear panel for system cooling;
- Media converter power isolation for electrical isolation from each bay;
- Offers over-voltage and over-current protections.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Technische details

Rackcapaciteit
2U
Afmetingen (B x D x H)
482 x 358 x 86 mm
Maat
48,3 cm (19")
Aantal poorten
14
Aantal ventilatoren
2 ventilator(en)

Energie

Stroomvoorziening
100-240V
AC-ingangsfrequentie
50 - 60 Hz
AC-adapter, uitgangsspanning
9.5 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
482 mm
Diepte
358 mm
Hoogte
86 mm
Gewicht
8 kg
