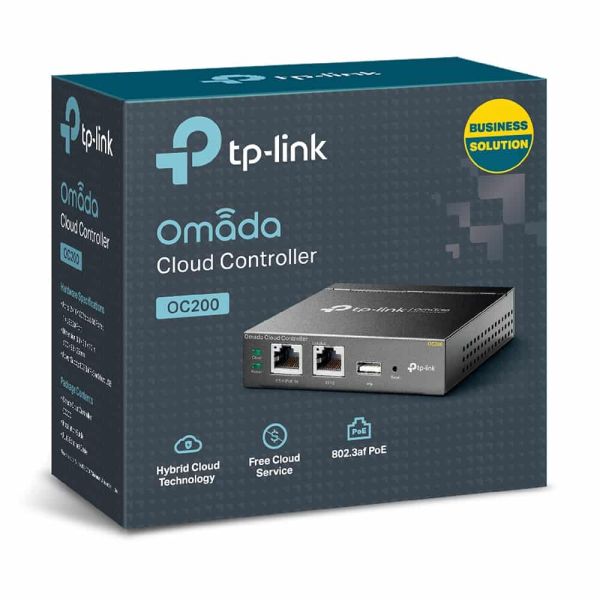

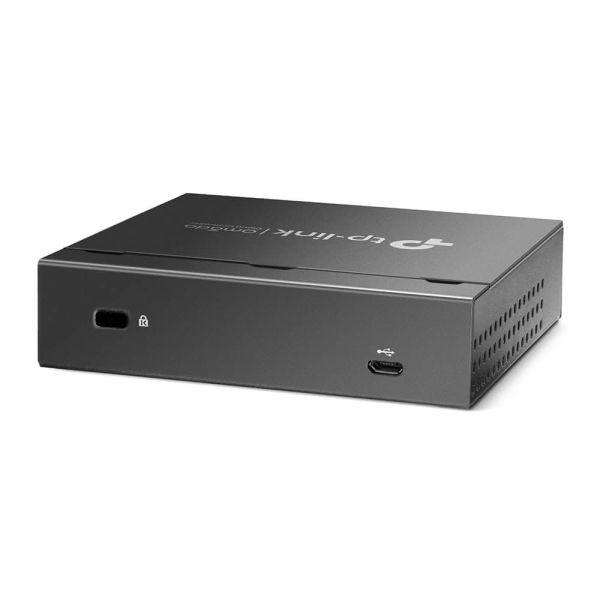

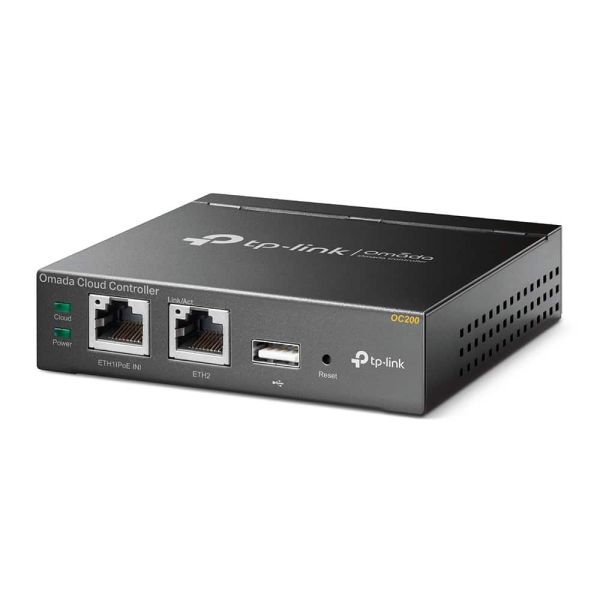

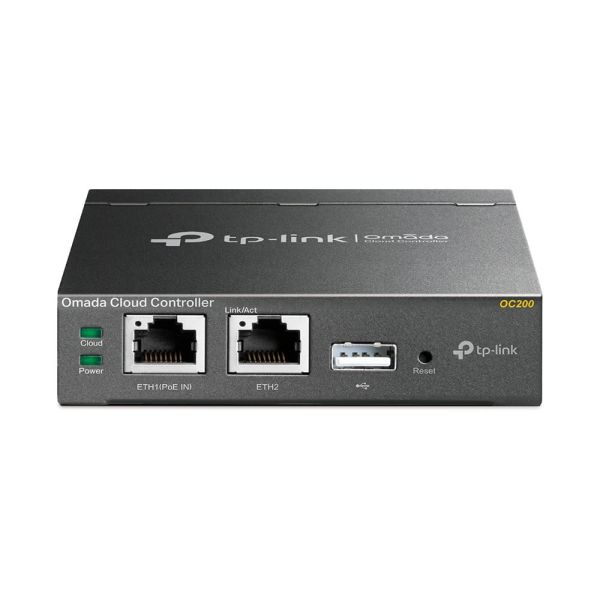

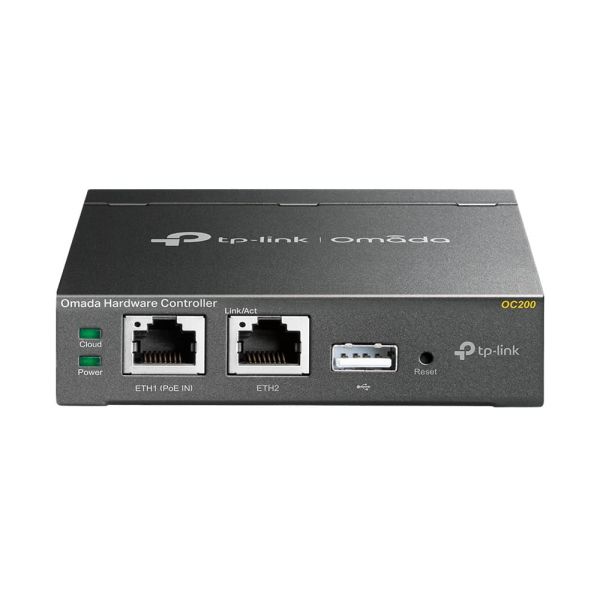

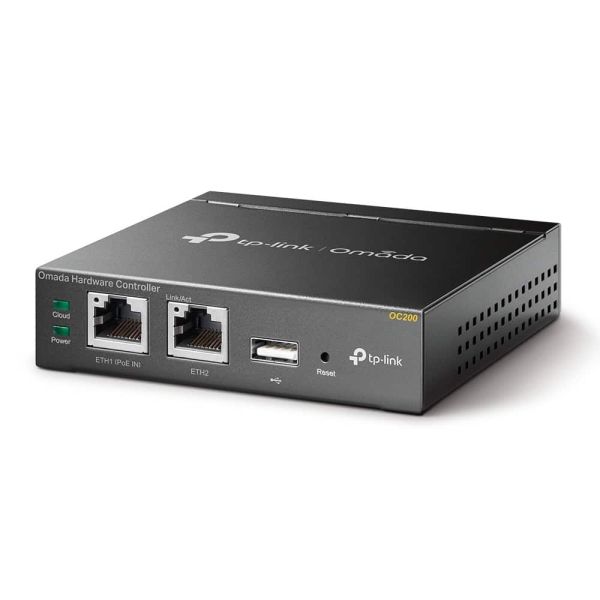

TP-Link OC200 gateway/controller 10, 100 Mbit/s
TP-Link OC200, Zwart, CE, FCC, RoHS, 1000 MHz, 1024 MB, DDR3, 4000 MB
Ruim op voorraad (levering verwacht binnen 3 dagen)
Fabrikant
TP-Link
MPN
OC200
EAN
6935364084233
€ 132,00
excl. BTW
€ 132,00
excl. BTW
excl. BTW
TP-Link OC200 gateway/controller 10, 100 Mbit/s
Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
- LED-indicatoren
- Type processor
- MAC adres filtering
- Web-gebaseerd management
- Reset button
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Kleur van het product*
Zwart
LED-indicatoren
Ja
Certificering
CE, FCC, RoHS
Prestatie
Besturings -en afbeeldingseenheid*
Nee
Type processor
Ja
Frequentie van processor
1000 MHz
Aantal geïnstalleerde processoren
1
Intern geheugen
1024 MB
Intern geheugentype
DDR3
Flash memory
4000 MB
Netwerk
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at
Beveiliging
MAC adres filtering
Ja
Ondersteunde beveiligingsalgoritmen
SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VLAN=ondersteuning
Ja
Poorten & interfaces
Aantal USB 2.0-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten
2
Beheerfuncties
Beheerplatform
L3
Web-gebaseerd management
Ja
Reset button
Ja
Syslog
Ja
Energie
Stroomverbruik (typisch)
5 W
Ingangsspanning
5 V
Stroom
1 A
Power over Ethernet (PoE)
Ja
DC voltage input
5 V
Software
Compatibele besturingssystemen
Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux
Gewicht en omvang
Breedte
99,8 mm
Diepte
98 mm
Hoogte
25 mm
Verpakking
Breedte verpakking
135 mm
Diepte verpakking
128 mm
Hoogte verpakking
70 mm
Inhoud van de verpakking
Meegeleverde kabels
LAN (RJ-45)
Snelle installatiehandleiding
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
