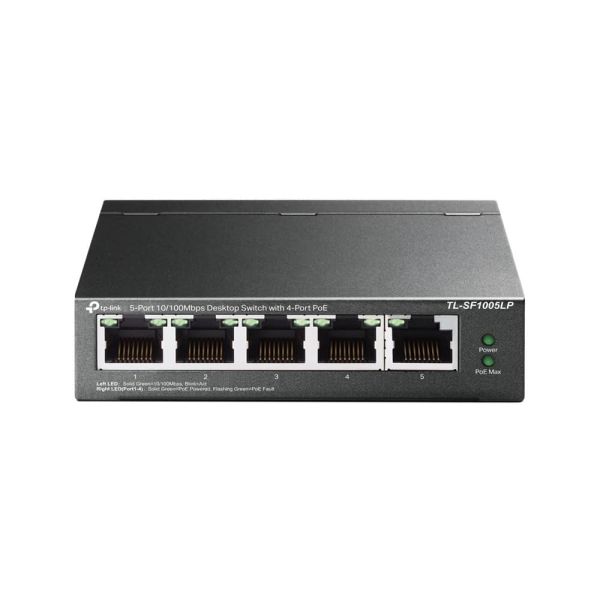

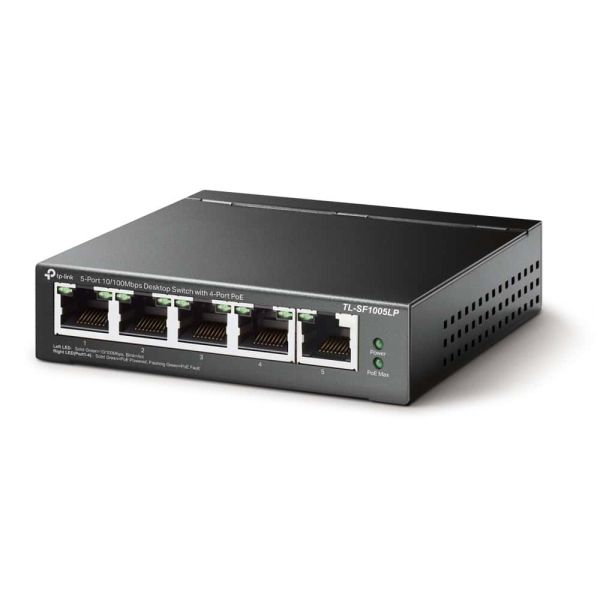

TP-Link TL-SF1005LP netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

TP-Link TL-SF1005LP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)

14 op voorraad (levering verwacht binnen 5 dagen)

Fabrikant TP-Link
MPN SF1005LP
EAN 6935364052782
€ 90,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005LP

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
5
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
1 Gbit/s
Verzending snelheid
0,744 Mpps
MAC-adrestabel*
2000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
2000

Design

Rack-montage*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja

Prestatie

Fanloos
Ja

Energie

Stroombron*
DC/PoE
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
220 V

Energie

AC-ingangsfrequentie
50 Hz
Stroom
0.81 A
Ingangsspanning
53.5 V
Vermogensverbruik (max)
47 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
4
Totaal Power over Ethernet (PoE)-budget
41 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
160,27 BTU/h

Gewicht en omvang

Breedte
100 mm
Diepte
98 mm
Hoogte
25 mm

Verpakking

Gebruiksaanwijzing
Ja
Inclusief AC-adapter
Ja
Breedte verpakking
131 mm
Diepte verpakking
196 mm
Hoogte verpakking
121 mm
Gewicht verpakking
740 g

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, Federal Communications Commission (FCC), RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
