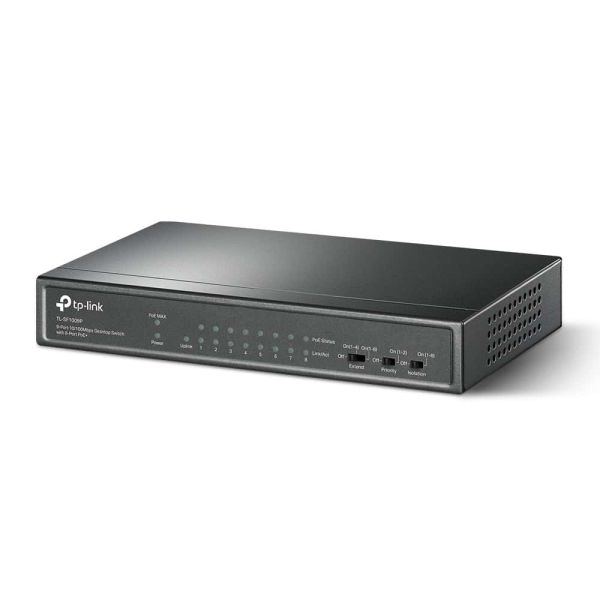

TP-Link TL-SF1009P netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

TP-Link TL-SF1009P, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

7 op voorraad (levering verwacht binnen 3 dagen)

Fabrikant TP-Link
MPN SF1009P
EAN 6935364052966
€ 64,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

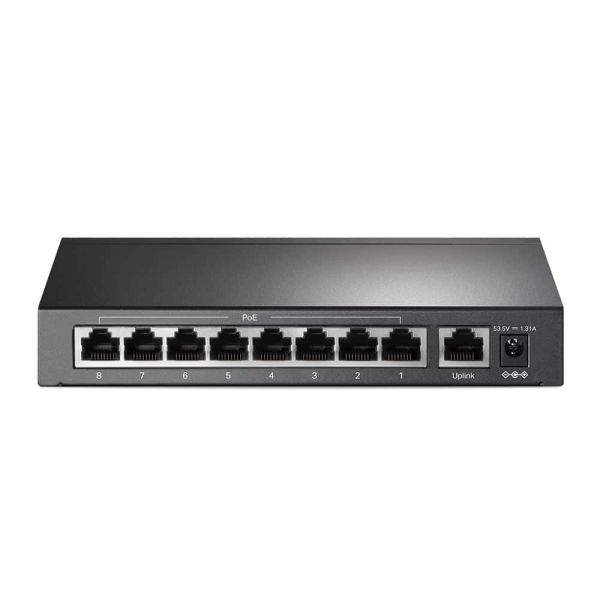

  • 9× 10/100 Mbps RJ45 ports
  • 8× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for 8 PoE ports*
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play with no configuration required
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
9
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
9
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
1,6 Gbit/s
Verzending snelheid
1,3392 Mpps
MAC-adrestabel*
2000 entries
Store-and-forward
Ja

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Ophangsysteem voor aan de muur
Ja
Certificering
FCC, CE, RoHS

Prestatie

Fanloos
Ja

Energie

Stroombron*
DC/PoE

Energie

Vermogenstoevoer inclusief*
Nee
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50 Hz
DC voltage input
53.5 V
Stroom
1.31 A
Vermogensverbruik (max)
77,08 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
65 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
262,84 BTU/h

Gewicht en omvang

Breedte
171 mm
Diepte
98 mm
Hoogte
27 mm

Verpakking

Gebruiksaanwijzing
Ja
Inclusief AC-adapter
Ja
Type verpakking
Doos
Breedte verpakking
223 mm
Diepte verpakking
280 mm
Hoogte verpakking
68 mm
Gewicht verpakking
980 g

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
Federal Communications Commission (FCC), CE, RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
