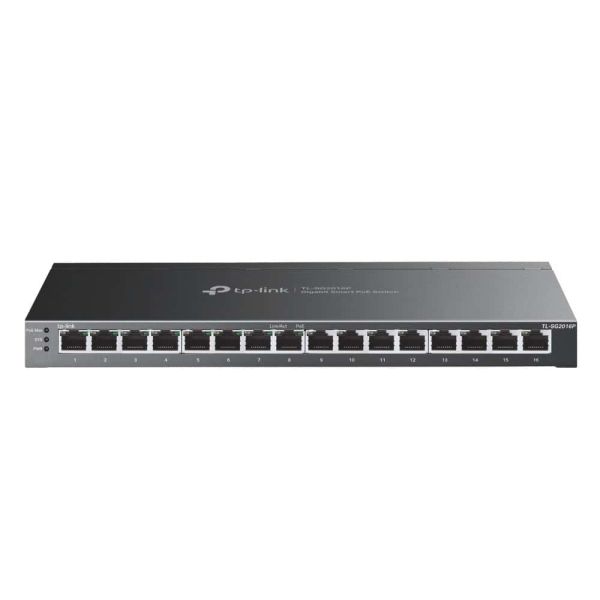

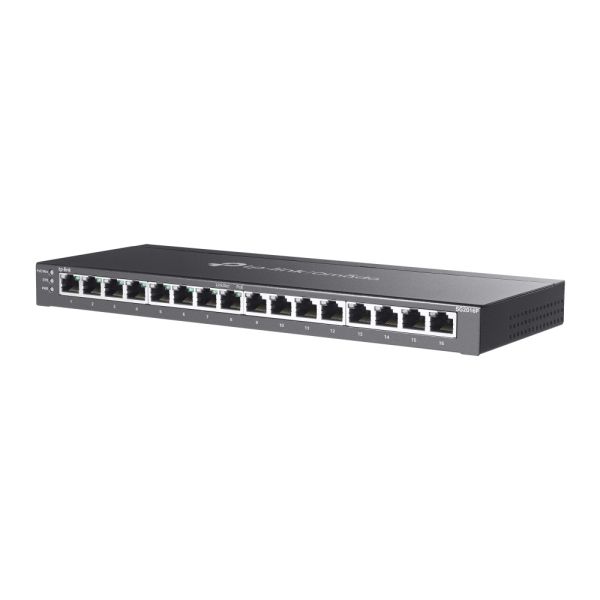

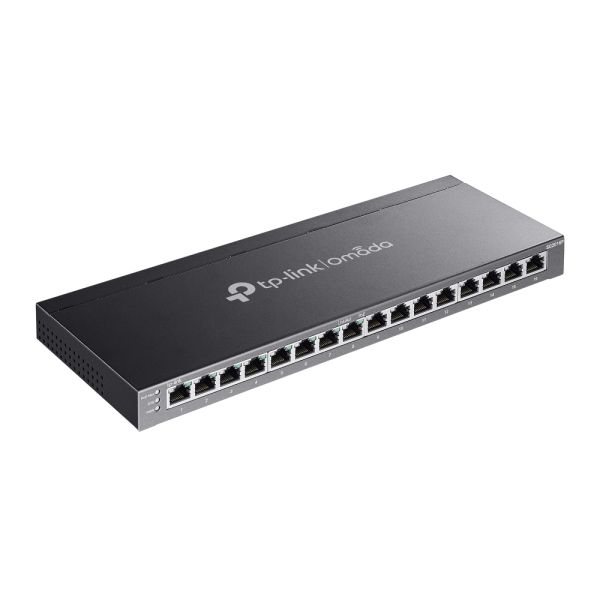

TP-Link TL-SG2016P netwerk-switch L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

TP-Link TL-SG2016P, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Ruim op voorraad (levering verwacht binnen 3 dagen)

MPN SG2016P
EAN 4897098689493
€ 222,00 excl. BTW

TP-Link TL-SG2016P netwerk-switch L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Smarter Switching for Smarter Results
JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Value-Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.

VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
  • 120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections
  • Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch-laag
L2/L3/L4
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
MIB-ondersteuning
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Multicast VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4000

Data-uitwisseling

Doorvoercapaciteit
16 Gbit/s
MAC-adrestabel*
8000 entries
Aantal wachtrijen
8
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
4,1 MB

Beveiliging

DHCP-functies
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
MAC adres filtering
Ja
SSH/SSL support
Ja
BPDU filtering / bescherming
Ja
IP-MAC-Port binding
Ja

Beveiliging

Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie
Algoritmen wachtrijplanning
SP, Weighted Round Robin (WRR)
MAC-adressen
Dynamische MAC-adresinvoer, Statische MAC-adressen

Multicast-functies

Multicast-ondersteuning
Ja
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2

Protocollen

Ondersteunde netwerkprotocollen
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
GARP VLAN Registratieprotocol (GVRP)
Ja
IPv4- & IPv6-functies
Dual stack IPv4/IPv6

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Power over Ethernet (PoE), Stroom, Systeem
Certificering
CE, FCC, RoHS

Prestatie

Upgraden van firmware mogelijk
Ja
Fanloos
Ja
Minimale systeemeisen
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux

Energie

Stroombron*
DC/PoE
DC voltage input
53.5 V
Stroom
1.31 A
Vermogensverbruik (max)
146,5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
499,98 BTU/h

Gewicht en omvang

Breedte
286 mm
Diepte
111,7 mm
Hoogte
25,4 mm

Verpakking

Gebruikershandleiding
Ja
Breedte verpakking
227 mm
Diepte verpakking
434 mm
Hoogte verpakking
70 mm
Gewicht verpakking
1,94 kg
