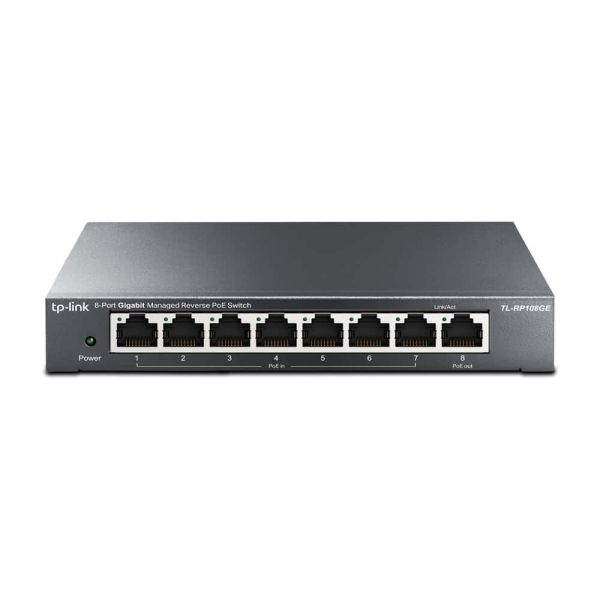

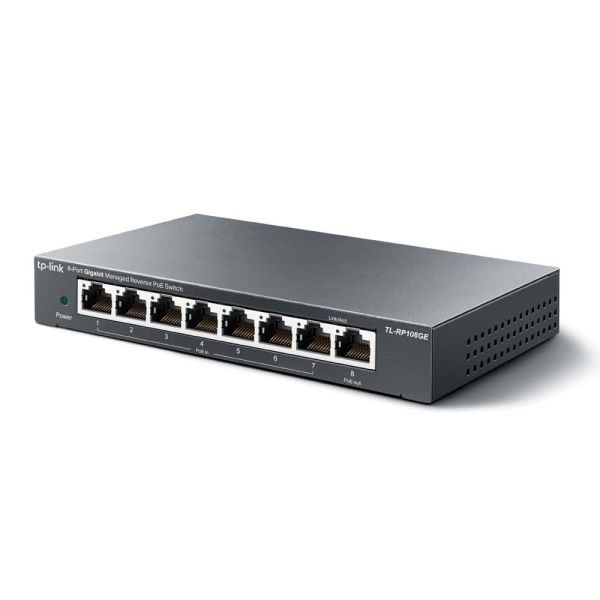

TP-Link TL-RP108GE netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart
TP-Link TL-RP108GE, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Niet op voorraad
Fabrikant
TP-Link
MPN
TL-RP108GE
EAN
6935364052706
€ 36,00
excl. BTW
€ 36,00
excl. BTW
excl. BTW
TP-Link TL-RP108GE netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart
What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
- 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports

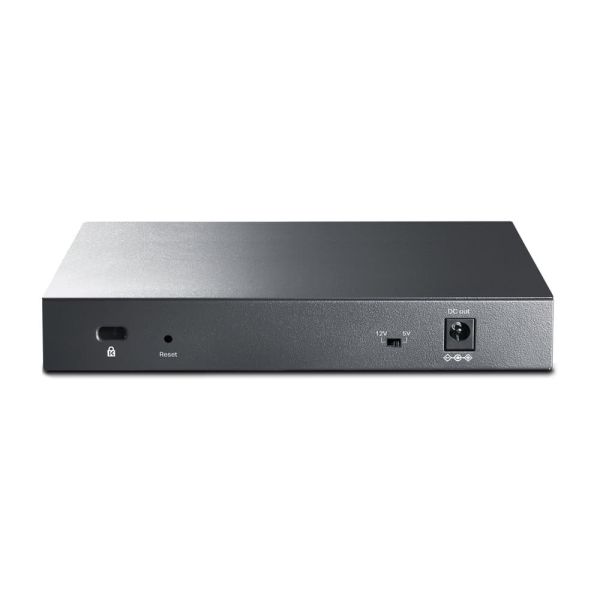

- 1 DC output port that supports both 5V and 12 V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netwerk
Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Half-duplex
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Tagged VLAN
Aantal VLANs
4000
Data-uitwisseling
Switchingcapaciteit*
16 Gbit/s
Verzending snelheid
11,9 Mpps
MAC-adrestabel*
4000 entries
Store-and-forward
Ja
Statische route
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
16000
Beveiliging
IGMP snooping
Ja
Beveiliging
Bescherming lus
Ja
Design
Kleur van het product
Zwart
Reset button
Ja
LED-indicatoren
Ja
Certificering
FCC, CE, RoHS
Energie
Stroombron*
DC
Vermogenstoevoer inclusief*
Nee
Stroom
1 A
Ingangsspanning
5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
Passive PoE
Hoeveelheid Power over Ethernet (PoE) ports
8
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Gewicht en omvang
Breedte
158 mm
Diepte
99,1 mm
Hoogte
25 mm
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
