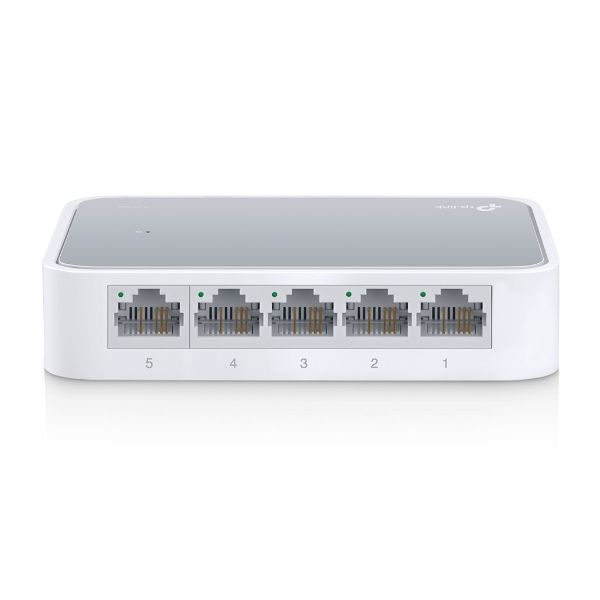

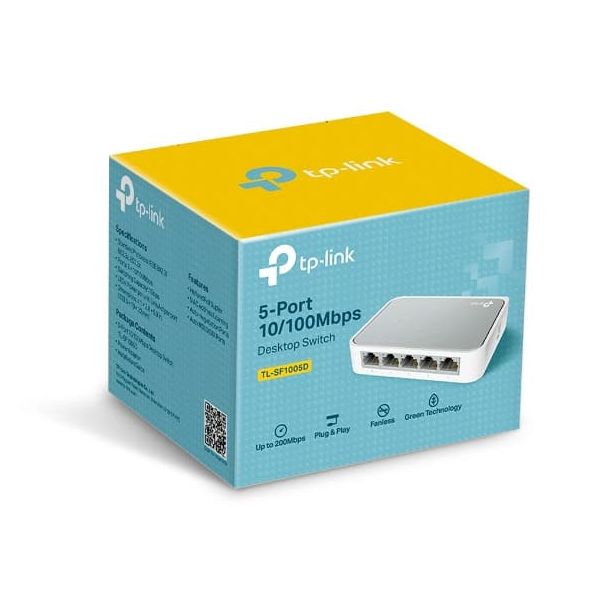

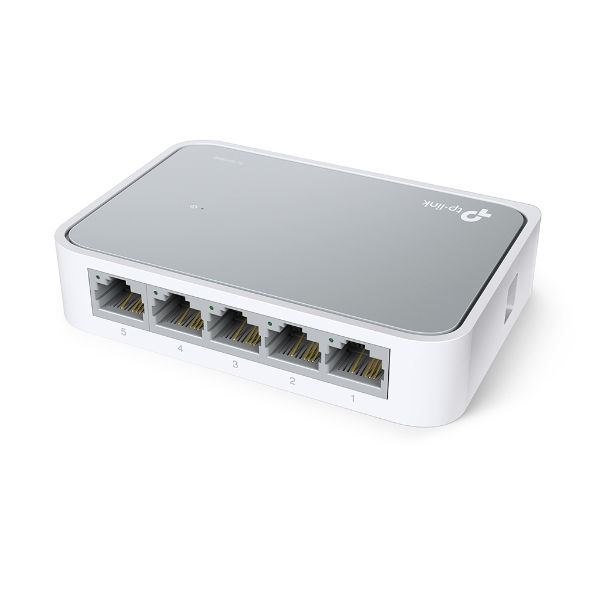

TP-Link TL-SF1005D V15 netwerk-switch Managed Fast Ethernet (10/100) Wit
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
5
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
5
Netstekker
DC-in ingang
Netwerk
Netwerkstandaard*
IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-T
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Auto-negotiation
Ja
Data-uitwisseling
Switchingcapaciteit*
1,6 Gbit/s
MAC-adrestabel*
1000 entries
Store-and-forward
Ja
Protocollen
Ondersteunde netwerkprotocollen
CSMA/CD, TCP/IP
Design
Rack-montage*
Nee
Design
Kleur van het product
Wit
LED-indicatoren
Ja
Certificering
FCC, RoHs
Energie
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50 Hz
Stroomverbruik (typisch)
1,87 W
Vermogensverbruik (max)
1,87 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
6,4 BTU/h
Gewicht en omvang
Breedte
104 mm
Diepte
22 mm
Hoogte
70 mm
Verpakking
Meegeleverde kabels
AC
Gebruikershandleiding
Ja
Type verpakking
Doos
