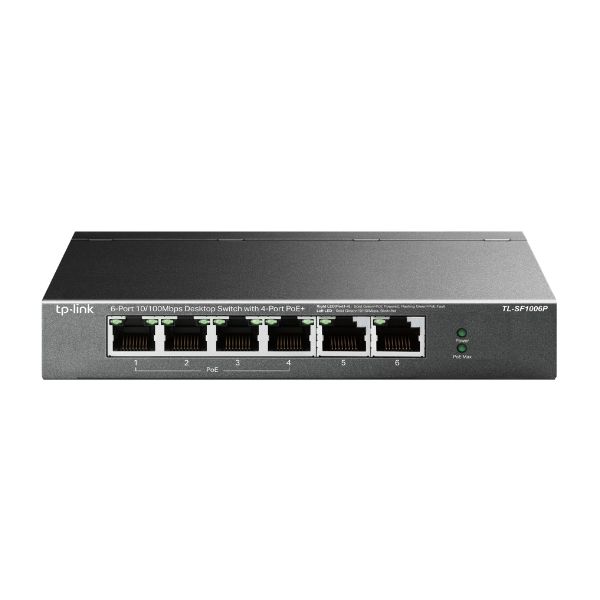

TP-Link TL-SF1006P netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

TP-Link TL-SF1006P, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE)

Ruim op voorraad

MPN TL-SF1006P
EAN 6935364030933
€ 52,00 excl. BTW

TP-Link TL-SF1006P netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
  • 6× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports*
  • Plug and play with no configuration required

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
6
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3at
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
1,2 Gbit/s
MAC-adrestabel*
2000 entries
Store-and-forward
Ja

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Certificering
FCC, CE, RoHS

Prestatie

Fanloos
Ja

Energie

Vermogenstoevoer inclusief*
Ja
DC voltage input
53.5 V
Stroom
1.31 A
Vermogensverbruik (max)
74 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
252,34 BTU/h

Gewicht en omvang

Breedte
158 mm
Diepte
101 mm
Hoogte
25 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
