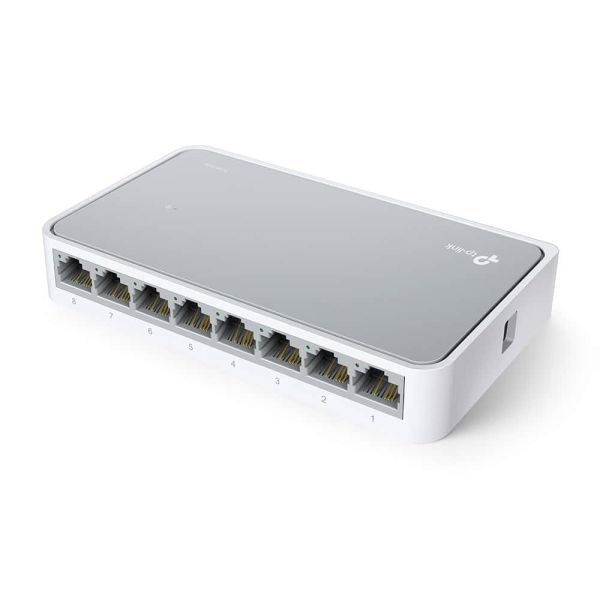

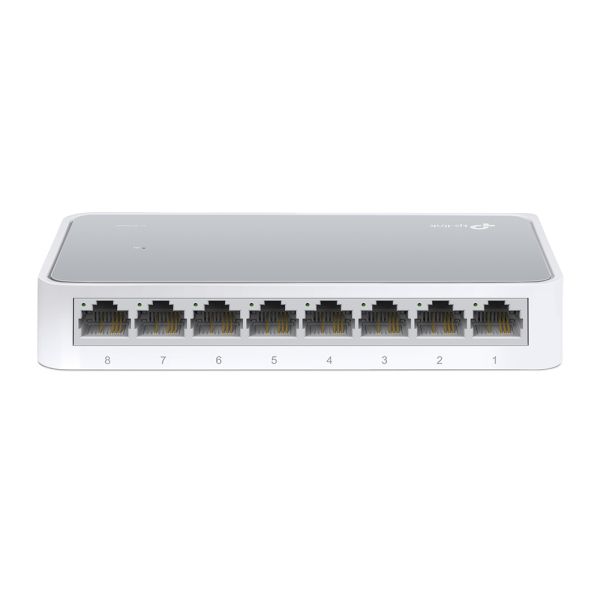

TP-Link TL-SF1008D Unmanaged Fast Ethernet (10/100) Wit

TP-Link TL-SF1008D, Unmanaged, Fast Ethernet (10/100), Full duplex

Ruim op voorraad

MPN TL-SF1008D
EAN 6935364020071
€ 11,00 excl. BTW

TP-Link TL-SF1008D Unmanaged Fast Ethernet (10/100) Wit

What This Product Does
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-Link Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
  • 8x 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
8
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
1,6 Gbit/s
MAC-adrestabel*
1000 entries
Store-and-forward
Ja

Protocollen

Ondersteunde netwerkprotocollen
CSMA/CD, TCP/IP

Design

Rack-montage*
Nee
Kleur van het product
Wit

Design

LED-indicatoren
Ja
Certificering
FCC, CE, RoHs

Energie

AC-ingangsspanning
220 V
AC-ingangsfrequentie
50 Hz
Vermogensverbruik (max)
2,05 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
134,5 mm
Diepte
79 mm
Hoogte
22,5 mm

Verpakking

Type verpakking
Doos

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
