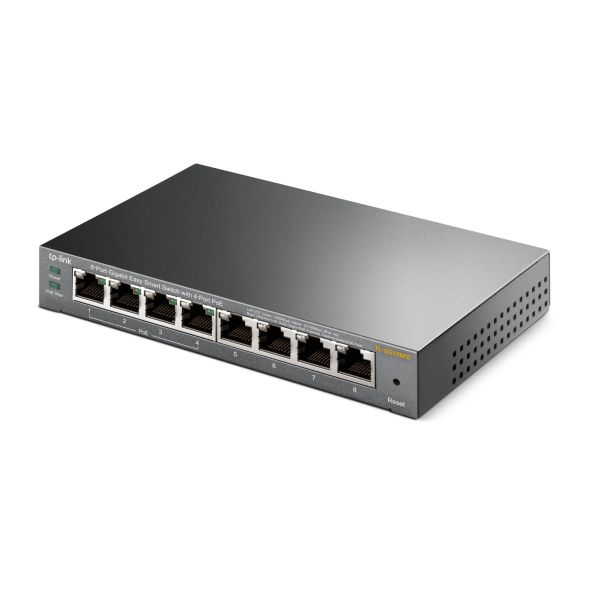

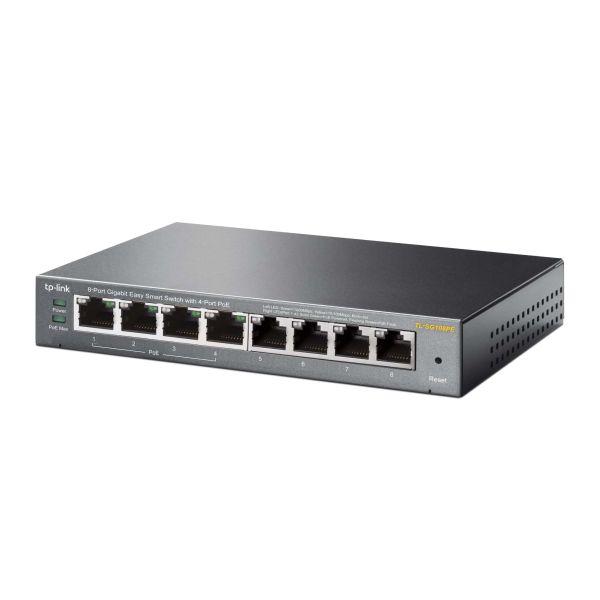

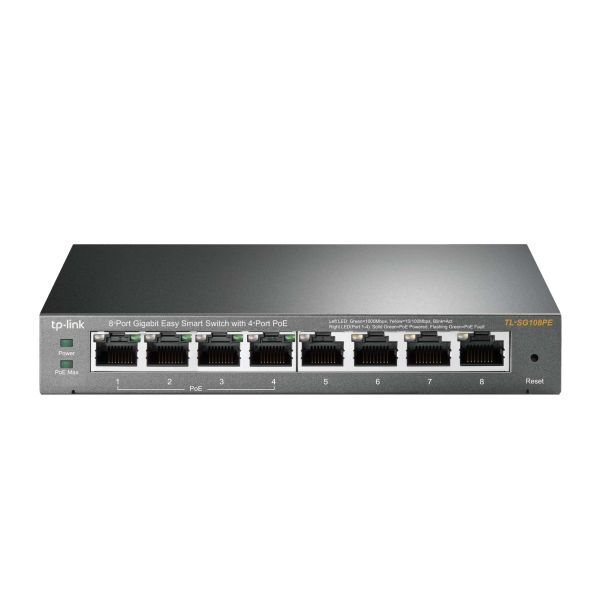

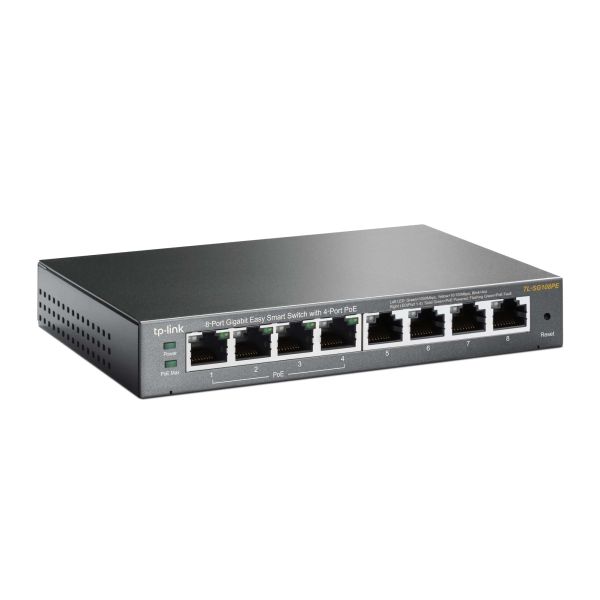

TP-Link TL-SG108PE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart
TP-Link TL-SG108PE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
100+ op voorraad (nu besteld = vandaag verzonden)
€ 47,00
excl. BTW
€ 47,00
excl. BTW
excl. BTW
4,5
·
4,0
·
Gratis verzending vanaf €250
PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 55W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Productassistent
Vraag mij alles over dit product
Onze digitale assistent geeft direct antwoord op je productvragen, maar kan zich soms vergissen.
Beheerfuncties
Switch type
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8
Netwerk
Netwerkstandaard
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN
Aantal VLANs
32
Data-uitwisseling
Switchingcapaciteit
16 Gbit/s
Verzending snelheid
11,9 Mpps
MAC-adrestabel
4000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
15000
Packet forwarding rate (1 Gbps)
11900000 pps
Packet buffergeheugen
1,5 MB
Beveiliging
IGMP snooping
Ja
Bescherming lus
Ja
Design
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom, Snelheid, Status
Energie
Stroombron
DC
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50 Hz
Stroom
1.25 A
Ingangsspanning
48 V
Vermogensverbruik (max)
65,2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
4
Aantal Power over Ethernet plus (PoE +)-poorten
4
Vermogen per poort Power over Ethernet (PoE)
15,4 W
Totaal Power over Ethernet (PoE)-budget
64 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
256,19 BTU/h
Gewicht en omvang
Breedte
158 mm
Diepte
101 mm
Hoogte
25 mm
Inhoud van de verpakking
Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja
Verpakking
Type verpakking
Doos
Breedte verpakking
131 mm
Diepte verpakking
196 mm
Hoogte verpakking
121 mm
Gewicht verpakking
860 g
Certificaten
Certificering
FCC, CE, RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
