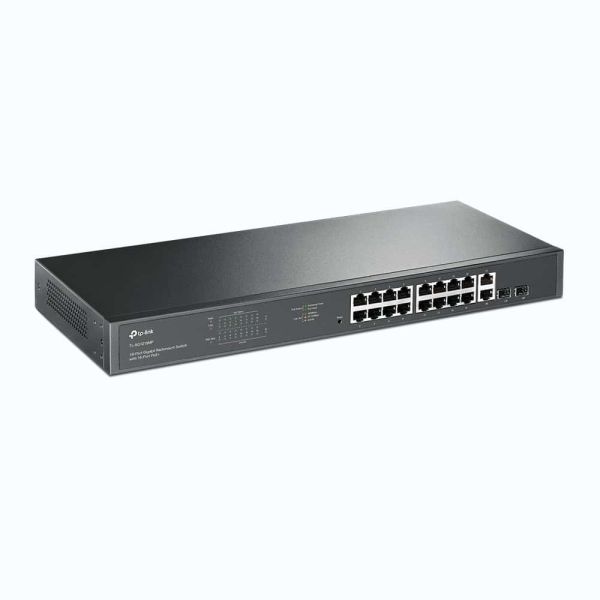

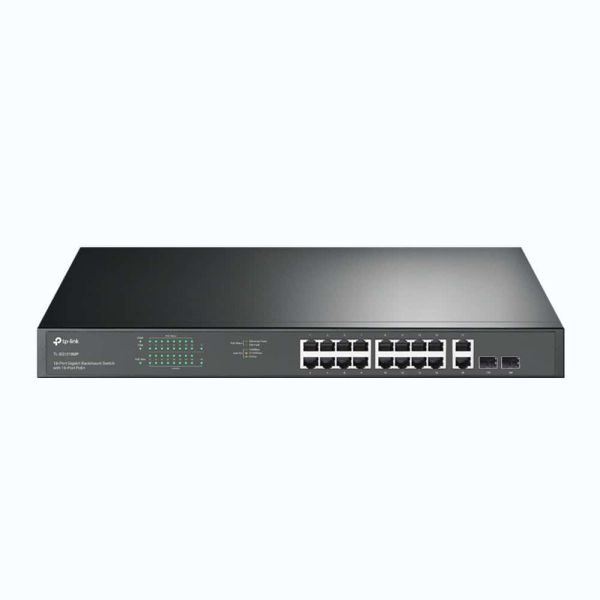

TP-Link TL-SG1218MP netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TP-Link TL-SG1218MP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Nog 3 beschikbaar (bel voor reservering · nu besteld = vandaag verzonden)Wij lezen 's ochtends ~08:30 de voorraden van onze leveranciers in. Deze kan gedurende de dag door anderen besteld worden (niet alleen onze klanten; ook die van de leveranciers). Hoe later op de dag, hoe groter de kans dat deze (beperkte) voorraad is verkocht. Neem daarom contact op voor zekerheid en/of een reservering.

Fabrikant TP-Link
MPN TL-SG1218MP
EAN 6935364072155
€ 149,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+

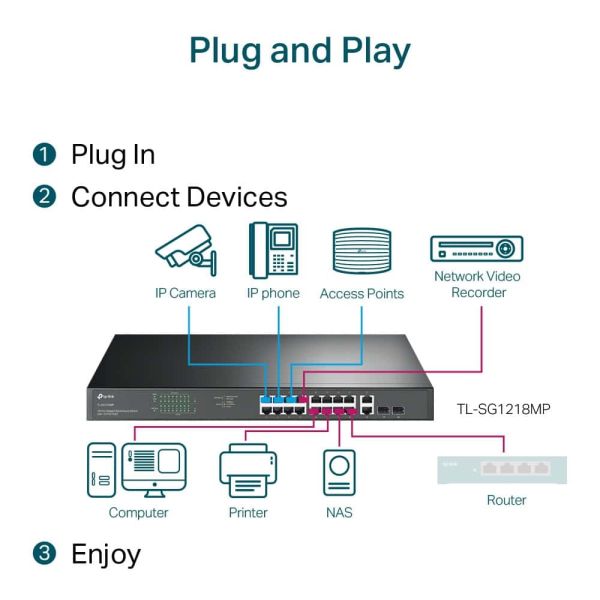

Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

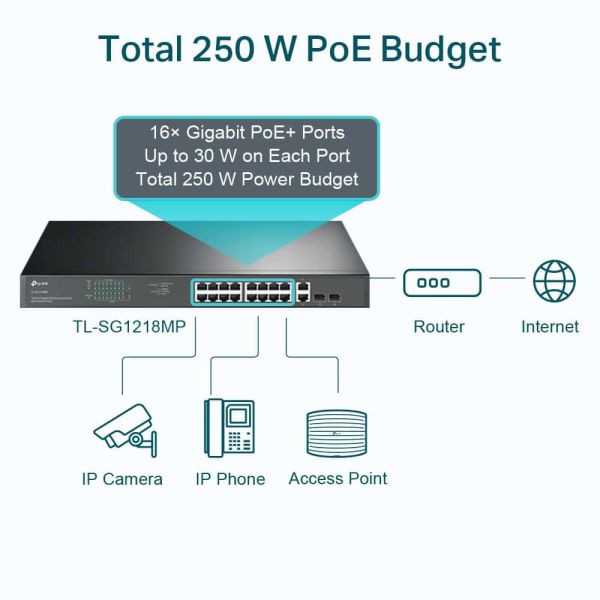

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

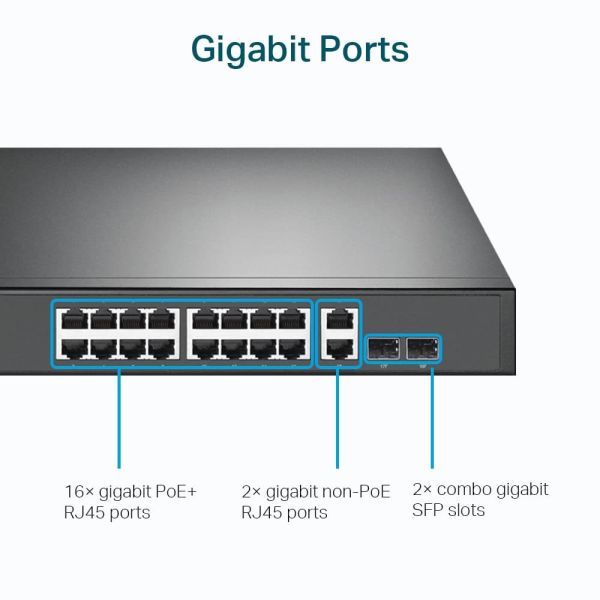

  • 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Working with IEEE 802.3af/at compliant PDs
  • Plug and play, with no configuration and installation needed
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Quality of Service (QoS)
Ja
Traffic-classificatie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
18
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
18
Aantal Combo SFP-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e, Cat6
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
36 Gbit/s
Verzending snelheid
26,78 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Aantal ventilatoren
2 ventilator(en)

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
286,64 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
250 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
977,44 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
180 mm
Hoogte
44 mm

Inhoud van de verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja

Verpakking

Breedte verpakking
250 mm
Diepte verpakking
528 mm
Hoogte verpakking
80 mm
Gewicht verpakking
3,05 kg

Certificaten

Certificering
CE, FCC, RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
