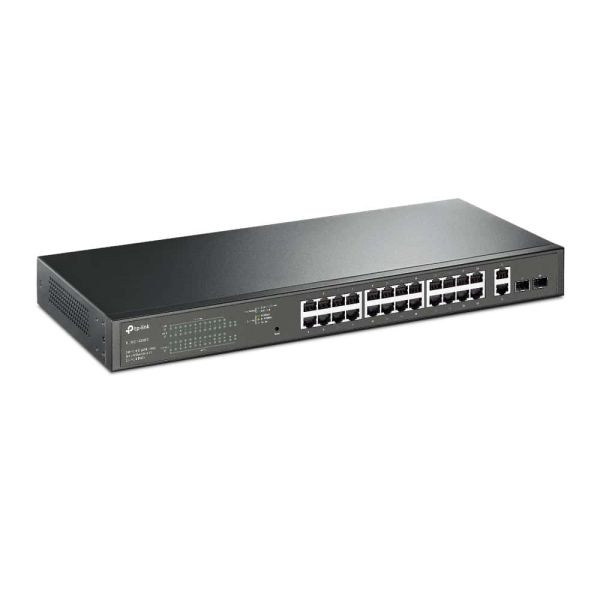

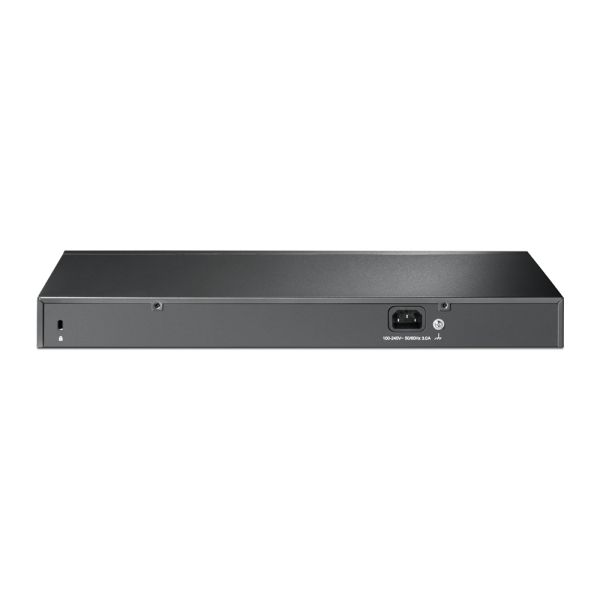

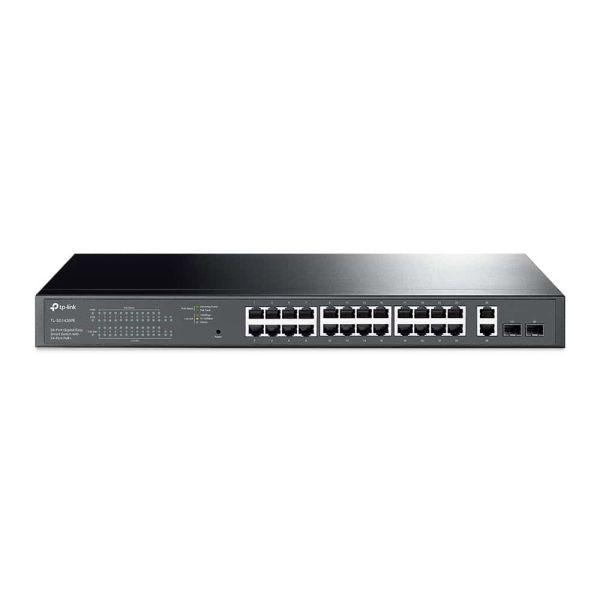

TP-Link TL-SG1428PE netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TP-Link TL-SG1428PE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

MPN TL-SG1428PE
EAN 6935364072209
€ 181,00 excl. BTW

TP-Link TL-SG1428PE netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

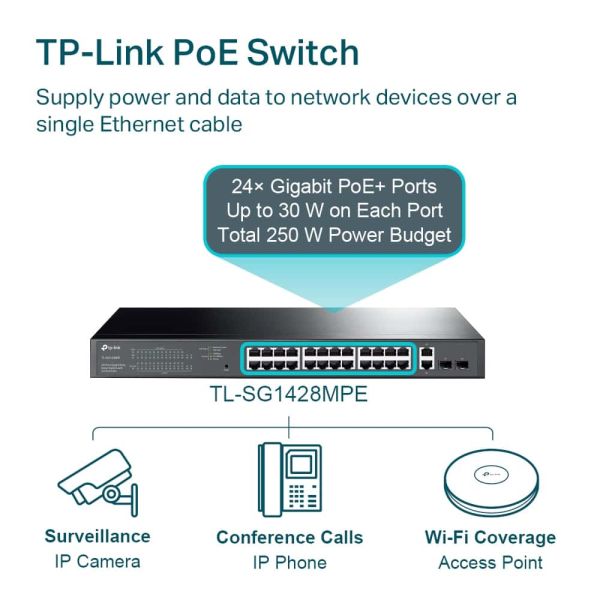

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Easy to Use

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.

Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Factors Guarantee Stable Operation

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

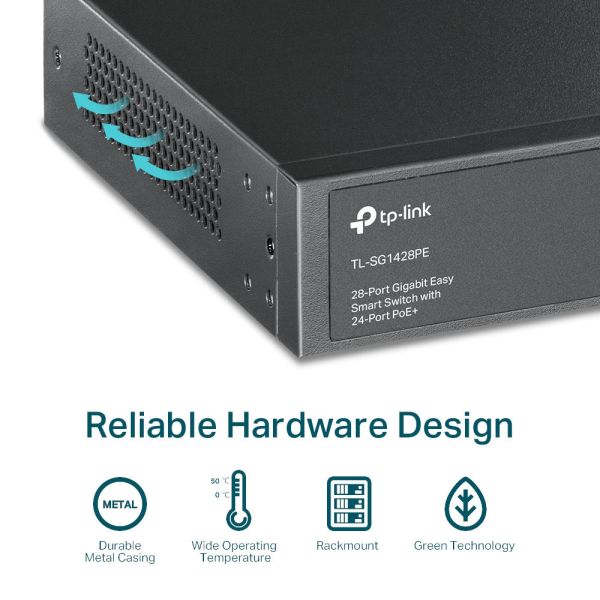

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
  • 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
  • PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
  • Priority Mode helps to guarantee the quality of sensitive application like video monitoring
  • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
  • Intelligent power management can protect the switch from overload

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
26
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
26
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Tagged VLAN
Aantal VLANs
32

Optische vezel

Fiber ethernet cabling technologie
1000BASE-X

Data-uitwisseling

Switchingcapaciteit*
56 Gbit/s
Verzending snelheid
41,7 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Aantal wachtrijen
4
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB

Beveiliging

IGMP snooping
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Aantal ventilatoren
2 ventilator(en)
Certificering
CE, FCC, RoHS

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
304,7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
250 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
440 mm
Diepte
220 mm
Hoogte
44 mm

Verpakking

Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
