Transcend JetRam Speicher 4GB, 4 GB, 1 x 4 GB, DDR3, 1600 MHz, 204-pin SO-DIMM

Nog slechts 7 beschikbaar

Fabrikant Transcend
MPN JM1600KSN-4G
EAN 0760557820154

Transcend JetRam Speicher 4GB geheugenmodule 1 x 4 GB DDR3 1600 MHz

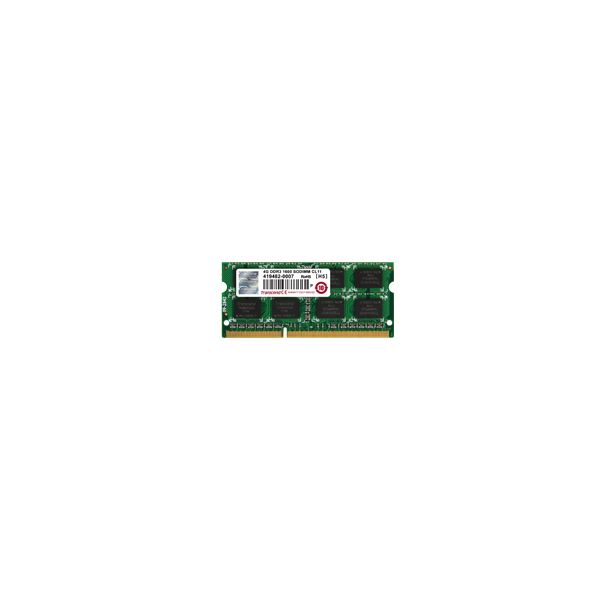

The JM1600KSN-4G is a 512M x 64bits DDR3-1600 SO-DIMM. The JM1600KSN-4G consists of 16pcs
256Mx8bits DDR3 SDRAMs FBGA packages and a 2048 bits serial EEPROM on a 204-pin printed circuit board.

The JM1600KSN-4G is a Dual In-Line Memory Module and is intended for mounting into 204-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

CAS-latentie
11
Intern geheugen*
4 GB
Geheugenlayout (modules x formaat)*
1 x 4 GB
Intern geheugentype*
DDR3
Kloksnelheid geheugen*
1600 MHz
Component voor*
Notebook
Geheugen form factor*
204-pin SO-DIMM
Geheugen voltage
1.5 V
Module configuration
512M x 64
Certificering
RoHS

Gewicht en omvang

Breedte
67,6 mm
Diepte
30 mm
Hoogte
1 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Chips organisatie
256Mx8
